Hafele Slido Classic 40 IF Sliding Hardware, For By-Pass Inset Doors, Soft Close, 80 LB Door

Hafele Slido Classic 40 IF Sliding Hardware, For By-Pass Inset Doors, Soft Close, 80 LB Door
Hafele

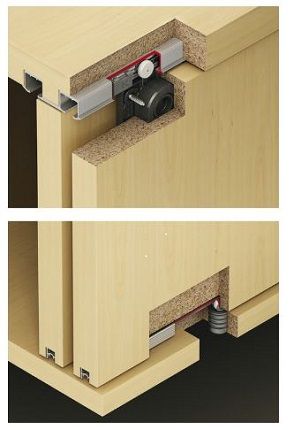

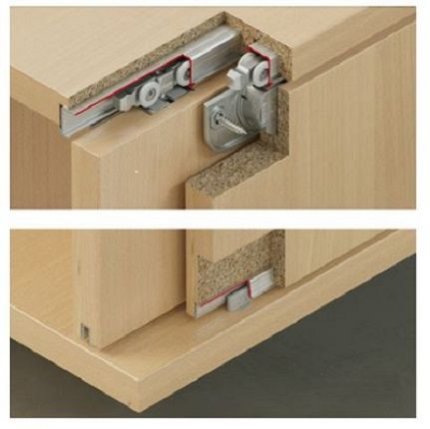

Hafele Slido Classic 40 IF Sliding Hardware is designed for 2 by-pass wooden doors or thin cabinets installed in inset position. Compatible Tracks (not included) can be mortised or surface mounted. Available with a soft and self closing mechanism on one side. Maximinum 80 Lbs per door.

Additional products required - see full product details and specs in tabs below

PRICED PER SET

See tabs below for additional information
    • SKU
      HF402.33.026
    • Market price:$256.98
      • save 20%
    • Starting price: Price: $205.58 per set


    Click to view the Hafele Slido Classic 40 IF Sliding Catalog.

    Application: By-Pass inset cabinet doors

    Door Dimensions:

    • Door Thickness: 5/8"- 3/4" (16mm-19mm)
    • Max Door Height: 86 - 5/8" (2200mm)
    • Max Door Weight: 88lb (40kg)
    • Max Door Width: 49- 3/16" (16-19mm)

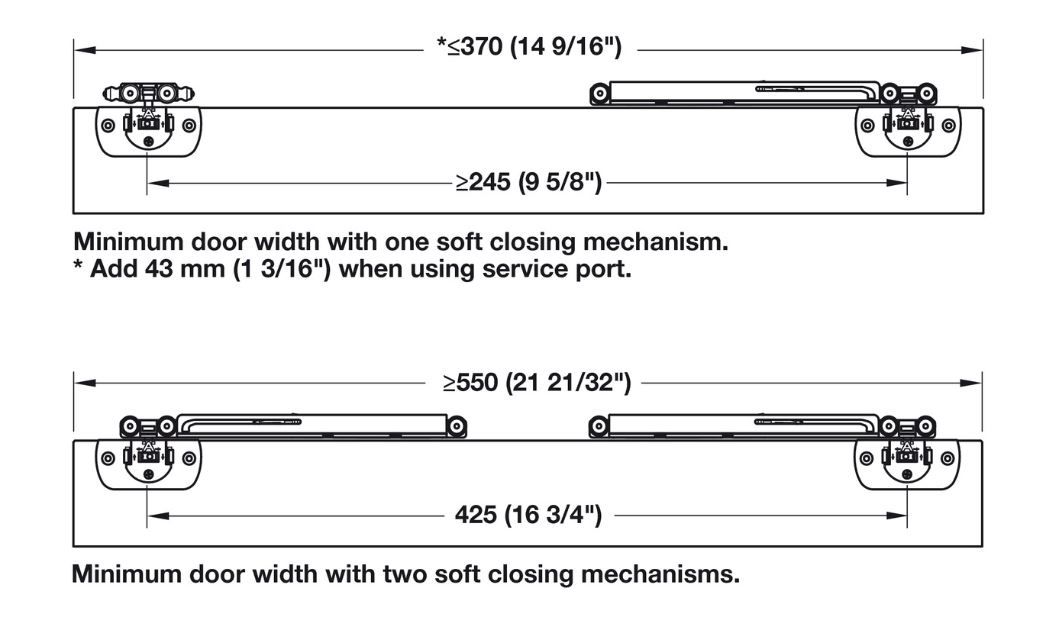

    • Minimum Door Width:
      • Soft closing mechanism on one side: Minimum 14 - 9/16" (370mm)
      • Soft closing mechanism on both sides: Minuimum 21 5/8" (550mm)

    Height Adjustment: On running gear using adjusting wheel ± 1/16" (2mm)

    Running Gear: 4 top rollers guided by a ball bearing mounted roller

    Set Components:

    • 4 running gears - soft close options (402.33.027 and 402.33.028) come along with soft and self closing mechanism.
    • 4 door stoppers - track stopper option (402.33.026) comes along with clip-in door stopper, soft close options (402.33.027 and 402.33.028) come along with soft and self closing mechanism.
    • 1 door follower
    • 2 inspection supports - (not included with 02.33.027)
    • 2 guides
    • 1 mounting aid

    Material:

    • Housing and running gear: Zinc alloy
    • Guide: Plastic
    • running gear axle: Steel

    Features:

    • Mounts quickly and easily
    • Space saving compared to hinged doors
    • Soft closing feature prevents door slams and helps eliminate noise

    Product Options:

    • With clip-in door track stopper- 402.33.026
    • With single soft and self closing mechanism on each door- 402.33.027
    • With dual soft and self closing mechanism on each door- 402.33.028

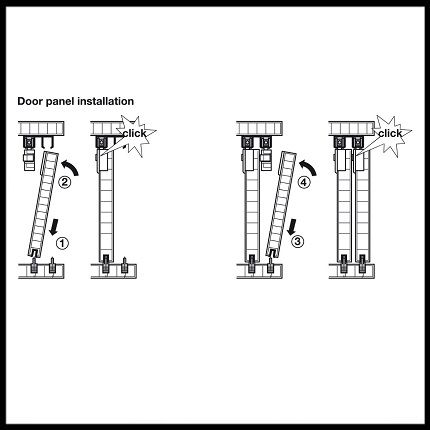

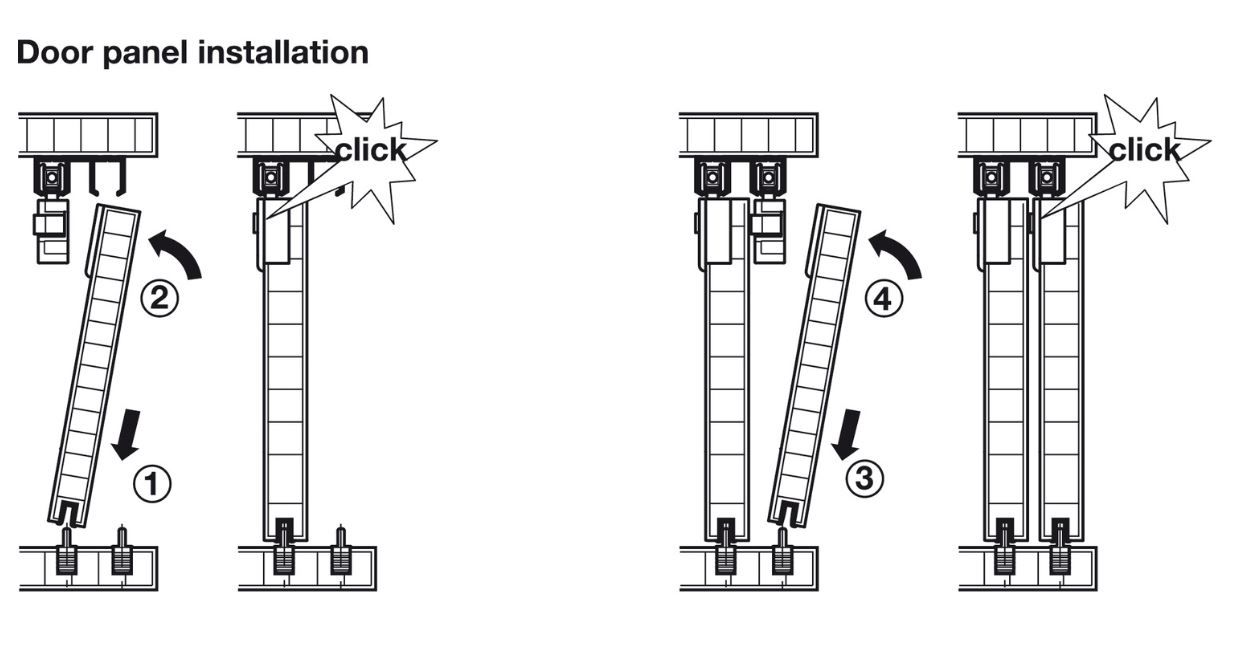

    Installation: See our Hafele Slido Classic Installation Instructions.

    How To Order:

    For cabinets with 3 doors you will need 1 single set and 1 dual set.

    Additional Required Products:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view or Full Warranty Policy.
