Hager 9850 Sliding Door Series, Pocket Door Applications, Heavy Duty, For Doors up to 8'6" High and 250 Lbs.

Hager 9850 Heavy Duty Pocket Door Sets include all the parts necessary to install a sliding pocket door 1 3/8" - 1 3/4" thick. 9850 Sliding Door Series are available for doors up to 48" wide, 102" high and 250 Lbs.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

Click here to view Hager 9850 Series from Full Hager Catalogue.

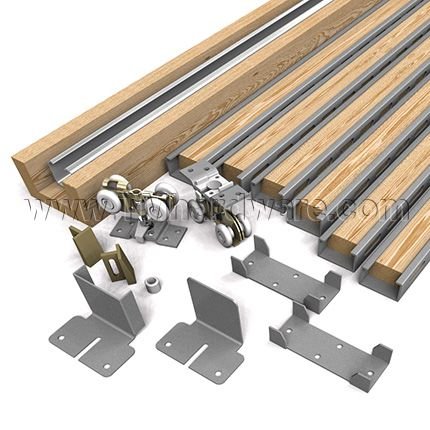

Included parts for 9850 Pocket Door Sets: Components can be ordered separately, see links below:

(1 ea.) Header and Track (9801) Assembly
(1 ea.) End Bracket Plain
(2 ea.) Floor Plate
(6 ea.) Split Stud
(2 ea.) Carrier (9827)
(2 ea.) Quick Release Plate (9610)
(1 ea.) Door Guide Set (9883)
(1 ea.) Bumper Kit (9881)
(1 ea.) #8 x 3/4" Phillips Pan Head Screws
(8 ea.) #8 x 1" Phillips Pan Head Screws
(2 ea.) #8 x 5/8" Phillips Truss Head Screws
For bi-parting doors, order 2 9850 Pocket Door Sets with one Hager 9639 Double Pocket Door Kit (sold separately.)

Door Thickness: For doors 1 3/8" - 1 3/4" thick. 9634 adapter can be used to provide additional clearance for doors 1 3/4" thick.

Materials: Aluminum Box Track with jump proof design. Zinc plated steel hangers with ball bearing axels.

Hanger Dimensions: 4 wheel hanger with 1 1/4" diameter wheels.

Installation: Pre-assembled header assembly for ease of installation and removal. Track header unit attaches to rough framing at both ends. Split studs can be nailed or screwed to track header. See Installation Tab below for complete installation instructions.

Additional Customization Options: These products can be ordered as full Pocket Door Kits or as individual components. To order please contact us or call our office at 845-388-1300.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

- SKU
  HG9850_139083
QuickShip
No
Manufacturer
Hager Companies
MPN
9850
Track Length
8' Height Doors (96" Track), 8'6" Height Doors (102" Track)
About This Product
- Mounting Type
  Overhead Mount
- Door Mount
  Surface Mount
- Track Type
  Box Track
- System Type
  Pocket Door Kit
- Included Parts
  Header and Track – 9801 (1 ea)
  End Bracket Plain (1 ea)
  Floor Plate (2 ea)
  Split Stud (6 ea)
  Carrier – 9827 (2 ea)
  Quick Release Plate – 9610 (2 ea)
  Door Guide Set – 9883 (1 ea)
  Bumper Kit – 9881 (1 ea)
  #8 x ¾” Phillips Pan Head Screws
  #8 x 1” Phillips Pan Head Screws (8 ea)
  #8 x 5/8” Phillips Truss Head Screws (2 ea)
- Material
  Aluminum
Dimensions
- Door Panel Weight
  Up to 250 lbs
- Door Width
  4'0" Width
- Door Thickness
  1 3/8" to 1 3/4" Thick
- Track Length
  96" Track, 102" Track
- Door Height
  96" Height, 102" Height
- Height Clearance
  Rough opening height from the finished floor to the top of the door frame should be 101 1/2" for 8'0" doors and 107 1/2" for 8'6" doors.
- Width Clearance
  Two times door width plus 1"
Compliance Details
- Compliance Details
  ANSI/BHMA A156.14
- ANSI Designation
  D8671, D8701

Click to view and print Hager 9850 Pocket Door Sets Product Specs.

Hager 9850 Pocket Door Set Dimensions Hager 9850 Pocket Door Sets Header Dimensions

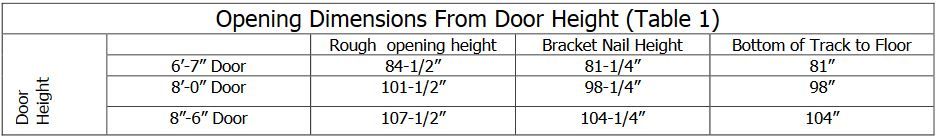

Hager 9850 Opening Dimensions

Hager 9850 Pocket Door Sets Door Width Options

Click to View and Print Installation Instructions for Hager 9850 Pocket Door Sets.
