Hager 510, 511, 512, Pivot Hinges, Double Acting Hospital Set

Pivot Hinges for top and bottom of door
Hager Companies

Architectural head and floor pivot hinges, by Hager Companies. Camtrol double acting hospital set, these pivots are intended for use as rescue hardware. Available in Satin Chrome finish for mortise or surface application in wood or metal floors. Specifically for use with square edge doors on the hinge side.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for a detailed list of Hager finishes.

See tabs below for additional information
    • SKU
      HG_510
    • Market price:$459.55
      • save 50%
    • Starting price: Price: $229.78 per set


    These high quality Pivot Hinges, manufactured by Hager Companies, are camtrol double acting head and floor pivots.

    Camtrol Double Acting Pivot, Hospital Set: These head and floor pivots are intended for use on hospital and nursing home bathroom doors. They are double acting, allowing them to swing in the opposite direction in case of emergency.

    Hinge Information: (charts)

    Item NumberAnchor Housing
      Inches  mm
      510  3-7/8 x 1-7/ x 7/8  98 x 48 x 22
      511  3-7/8 x 1-1/4 x 7/8  98 x 32 x 22
      512  3-7/8 x 1-1/4 x 7/8  98 x 32 x 22



      Door Mount Brackets Screw Size  Head Cam Box Screw Size  Floor Cam Box Screw Size
      Machine  Wood  Machine  Wood  Machine  Wood
      12 x 12-24 FH  1-1/4 x 12 FH  1-1/4 x 12-24 FH  1-1/2 x 12-24 FH  --  1-1/2 x 12 FH

    Finish: Satin Chrome US26D

    Materials: Brass. This material is non-corrosive, rust resistant and very decorative. May not be used on fire rated or labeled door openings because of low melting point.

    Options for Application: Specify when ordering.

    1. 510: Mortise application in wood floors.
    2. 511: Mortise Application in masonry floors.
    3. 512: Surface application in masonry floors.

    For use on square edge doors, on the hinge side.

    For use on wood or metal doors up to 135 lbs.

    Not for doors over 3'6" x 7'.

    For wood or metal frames.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Installation screws provided.

    Priced per set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product data tab for exact measurements.

    This product has a lifetime guarantee against defects in workmanship and materials.
     Click to view our Full Warranty Policy.

    Click here to view the Hager 600 series double acting pivot hinge with door release.

      • SKU
        HG_510
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      510, 511, 512
    • Options
      #510: Mortise App in Wood Floors, #511: Mortise App in Masonry Floors, #512: Surface App in Masonry Floors

    Click to Print 510 Template and Installation Instructions

    Click to Print 511 Template and Installation Instructions

    Click to Print 512 Template and Installation Instructions

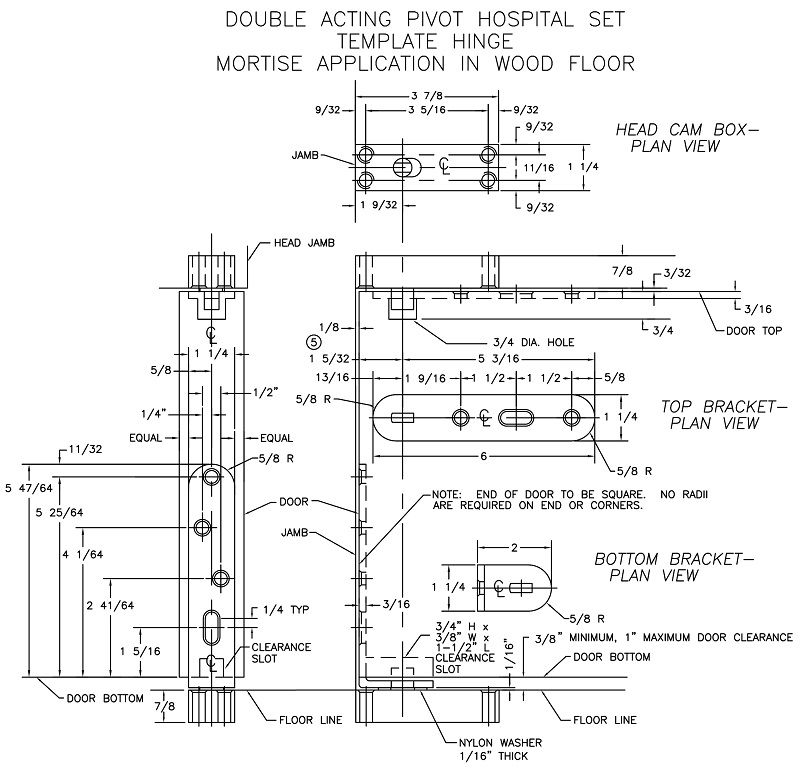

    510 Template. For all other templates and installation instructions, see links above.
