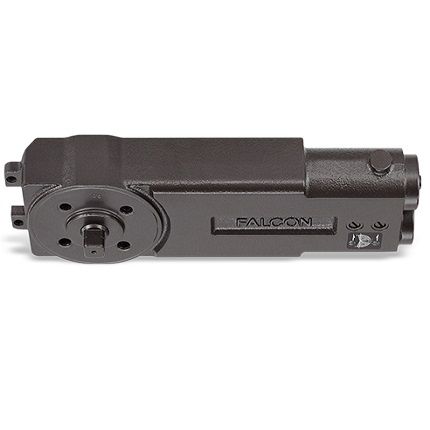

Falcon OHC100 Concealed Door Closer

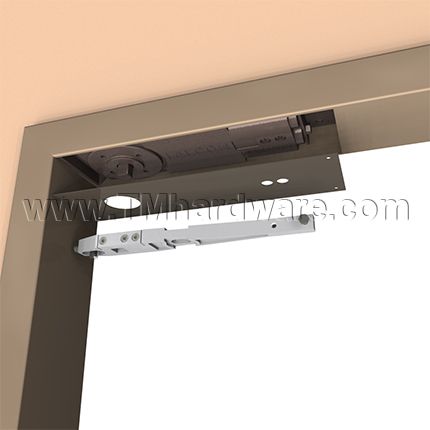

Falcon OHC100 Series Overhead concealed closer controls door opening and closing, while providing an aesthetically pleasing design option for both interior and exterior use. Product is used with aluminum doors and frames. Retrofittable to Jackson hole pattern. 90° and 105° standard opening with optional hold-open. Multiple size options available. 5 year warranty.
PRICED PER PIECE-See full product details in tabs below
Falcon OHC100 Concealed Door Closer Features:
Sizing: Adjustable Spring Sizes
- OHC101 sizing: 1-3
- OHC100 sizing: 3-5
Opening: 90° and 105° standard opening
Arm Style: Choose from options above. See Arm Type tab below for detailed description of all arm types.
Arms can be purchased separately. Click here to purchase replacement arms.
Adjustable Options: Adjustable Spring sizes
Pivot: Pivot needed for closer included
Durability:
- Maintenance-free performance
- Cast iron construction ensures lasting durability
Cylinder: Option of standard or Hold Open Cylinder
Replacement Cylinders availalbe for purchase separately. Click here to view replacement cylinders.
Finish: Dark Bronze (695)
Installation:
- Matches the Jackson hole pattern for retrofitting
- Used with Aluminum frames and doors

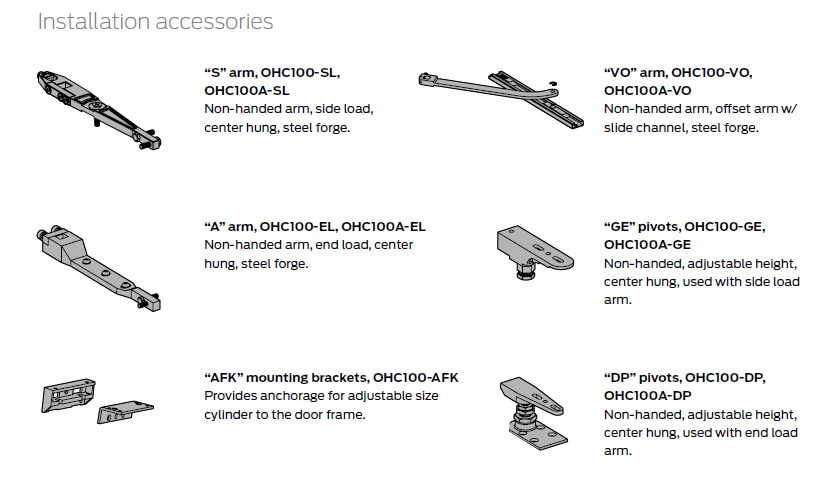

Accessories: Choose from options above. See Accessories Tab for more information.
Accessories can be purchased separately. Click here to purchase replacement accessories.
Compliance Details: See compliance details tab for more information
Priced Per Piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 5 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view Hager 5100 Door Closer made of Cast Iron.
-
QuickShipNo
-
ManufacturerFalcon
-
MPNOHC100, OHC101
-
Sizing1-3 (OHC101), 3-5 (OHC100)
-
Hold OpenNot Required, Hold Open Required
-
Door Swing Degree90°, 105°
-

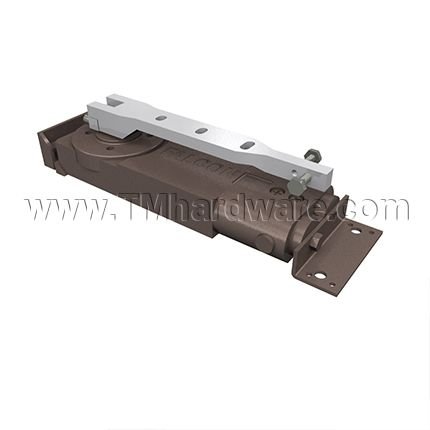

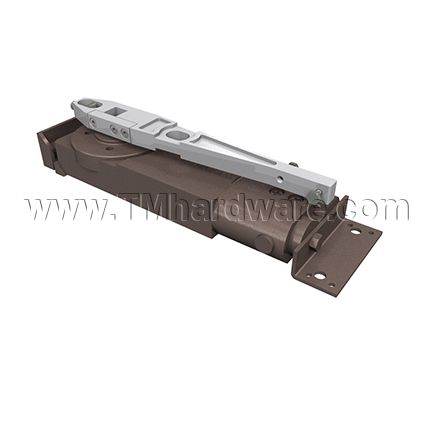

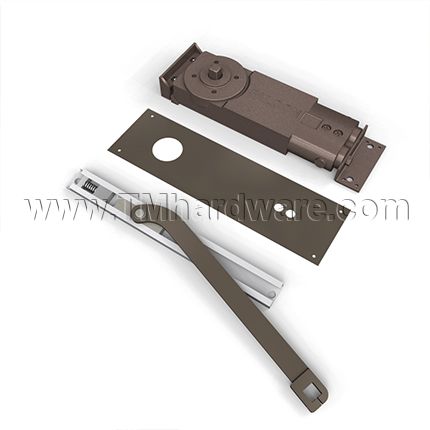

Arm/Floor Pivot Type(EL-DP) “A” Style End Load Arm with Center hung floor pivot, (VO) Offset Arm and track, (SL/GE) “S” Style Side Load Arm with Center Hung Floor Pivot
-
AccessoriesNone Required, Mounting Bracket & Hardware
