Hager 9852HD Heavy-Duty Pocket Door Frame Kits, 250 lbs. Door, 2' x 6' Wall

Hager 9850 Heavy-Duty Pocket Door Frame Kits, 2' x 4' Wall
Hager Companies

Hager Hager 9852 Heavy-Duty Kit offers complete Pocket Door Frame Kits. It can support 1-3/8” - 1-3/4” thick doors with a weight of up to 250 lbs, to be installed in a  2' x 6' wall. See the details below for more information

SOLD PER SET

See tabs below for additional information
    • SKU
      HG9852HD-80
    Call for price!
    845-388-1300

    Hager Hager 9852 Heavy-Duty Kit offers complete Pocket Door Frame Kits. It can support 1-3/8” - 1-3/4” thick doors with a weight of up to 250 lbs, to be installed in a  2' x 6' wall. See the details below for more information

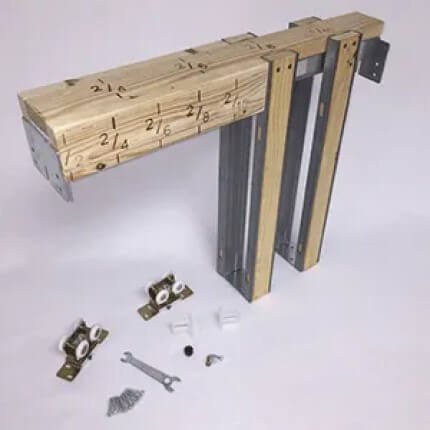

    Set Includes:

    • (1 pc.) 2”x6” Header assembly (9303HD)
    • (3 pairs) Split Studs
    • (2 pcs.) Rollers - (model 9806- supports up to 250 lbs )
    • (2 pcs.) Hanger Plates
    • (1 pc.) Rubber Bumper (9881CS)
    • (1 pair) Floor Guide
    • (1 pc.) Hanger Wrench
    • (3 pcs.) 4" Floor Plates
    • (1 pc.) Doorway End Bracket
    • (1 pc.) Pocket End Bracket

    Features:

    • Supports doors up to 250 lbs.
    • Heavy-Duty, V-groove, jump-proof aluminum track
    • Pre-assembled header assembly goes up quickly
    • Easy door installation and removal for painting and repair
    • 3 pair of wood split studs with wood inserts - size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height
    • Steel encased for rigidity and to prevent fastener penetration into the pocket
    • Track header unit attaches to rough framing at both ends
    • Split studs can be nailed or screwed to track header

    Certifications:

    • Meets performance requirements ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
    • Type: D02311-250
    • ADA Compliant

    SOLD PER SET

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

     Click here to view our Hager 9600 Commercial Series Pocket Door Frame Kits

      • SKU
        HG9852HD-80
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • About This Product
      • Track Type
        V-grooved Jump Proof Track
      • System Type
        Pocket Door Kit
    • Dimensions
      • Door Width
        3’0” (914 mm)
      • Door Thickness
        1-3/8” - 1-3/4” (35 mm - 44 mm)
      • Door Height
        80" (2032 mm), 84" (2134 mm)
    • Compliance Details
      • Compliance Details
        ADA Compliant
      • ANSI Designation
        ANSI/BHMA 156.14 (Grade 1)
