Hager 9600 Commercial Series Pocket Door Frame Kits, 150 Lbs. Door

Hager Hager 9600 Commercial Series offers complete Pocket Door Frame Kits. It can support 1-3/8” - 1-3/4” thick doors with a weight of up to 150 lbs. See the details below for more information

SOLD PER SET

See tabs below for additional information

Quantity

Add to compare

Hager Hager 9600 Commercial Series offers complete Pocket Door Frame Kits. It can support 1-3/8” - 1-3/4” thick doors with a weight of up to 150 lbs.

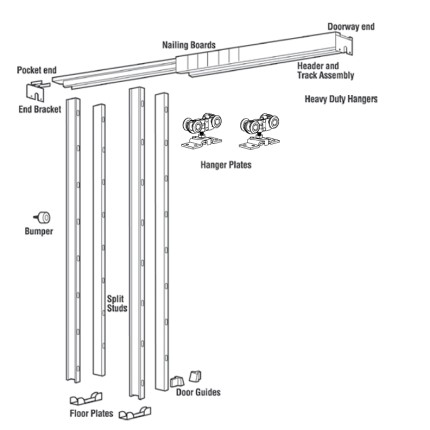

Set Includes:

(1 pc.) 2”x4” Header assembly (9303HD)
(2 pairs) Split Studs
(2 pcs.) Rollers - (model 9805- supports up to 150 lbs )
(2 pcs.) Hanger Plates
(1 pc) Rubber Bumper (9881CS)
(2 pcs) Floor Plates (9883CS)
(1 pc) Doorway End Bracket
(1 pc) Pocket End Bracket
Optional soft-close for doors up to 150 lbs. (contact our office for availability)

Features:

Supports doors up to 150 lbs.
V-groove jump-proof aluminum track
Pre-assembled header assembly goes up quickly
Easy door installation and removal for painting and repair
Real wood split studs, size 3/4” x 1-3/4” (19 mm x 44 mm) width relative to length, steel encased for rigidity and to prevent fastener penetration into the pocket
Header Assembly attaches to rough studs at both ends - split studs nail to Header Assembly - no connections to rough header

Certifications:

Meets performance requirements ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
Type: S02311-150
ADA Compliant

SOLD PER SET

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to view our Hager 9878CS Pocket Door Set

- SKU
  HG9631CS
QuickShip
No
Manufacturer
Hager Companies
About This Product
- Track Type
  V-grooved Jump Proof Track
- System Type
  Pocket Door Kit
Dimensions
- Door Width
  3’0” (914 mm)
- Door Thickness
  1-3/8” - 1-3/4” (35 mm - 44 mm)
- Door Height
  80" (2032 mm), 84" (2134 mm), 96" (2438 mm), 108" (2743 mm)
Compliance Details
- Compliance Details
  ADA Compliant
- ANSI Designation
  ANSI/BHMA A156.14 (Grade 1)

Click here for installation Guide 771 kB
