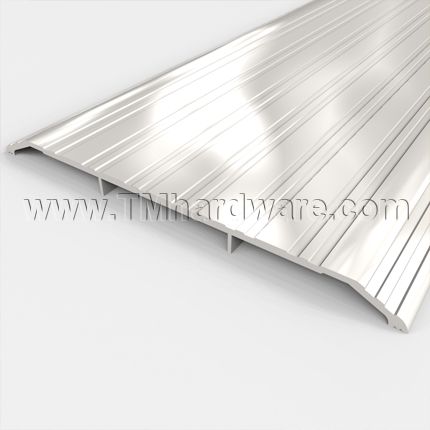

Pemko #2548 Utility Threshold, 8" Aluminum or Bronze, .5" Height

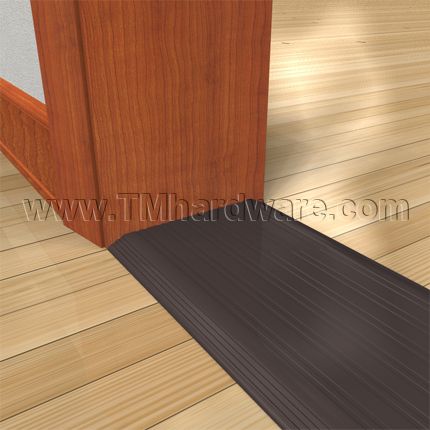

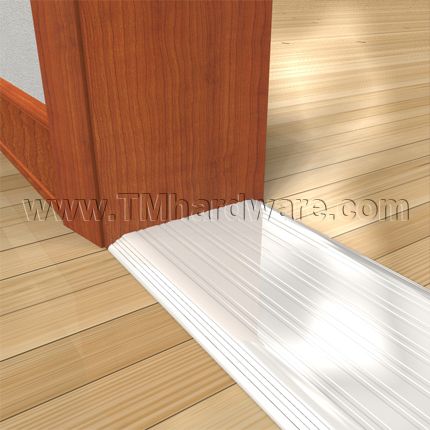

This ADA compliant and fire rated 8" wide Saddle Threshold is extruded from high quality aluminum, or bronze, providing long lasting superior performance. It has a height clearance of .5" which aids in insulating a room and creates a smooth transition between two floor surfaces. Available in bronze mill finish and three aluminum variations. Length is custom cut to size.
Need it sooner? Stock sizes and finish are available to ship within 1-3 business days. See our Pemko #2548 Utility Threshold, 8" Aluminum or Bronze, .5" Height, Mill Finish Aluminum - QuickShip
PRICED PER FOOT.
This ADA compliant and fire rated 8" wide Saddle Threshold is extruded from high quality aluminum, or bronze, providing long lasting superior performance. It has a height clearance of .5" which aids in insulating a room and creates a smooth transition between two floor surfaces.
Need it sooner? Stock sizes and finish are available to ship within 1-3 business days. See our Pemko #2548 Utility Threshold, 8" Aluminum or Bronze, .5" Height, Mill Finish Aluminum - QuickShip
Finishes: Available in various different finishes; choose from the dropdown options (Oil Rubbed Bronze can be purchased through our office, for an additional 40% of standard bronze pricing)
Installation: Installation instructions and screws provided. Screws are colored to coordinate door hardware. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold is drilled along center line
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For lower height clearance, see our 8" Utility Threshold with .25" Height.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN2548, 254x4

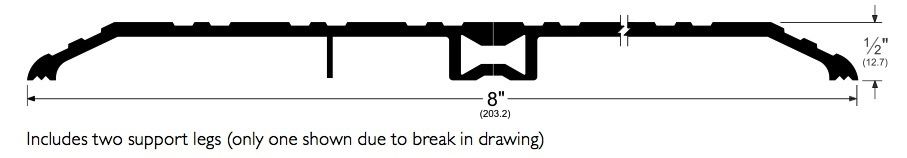

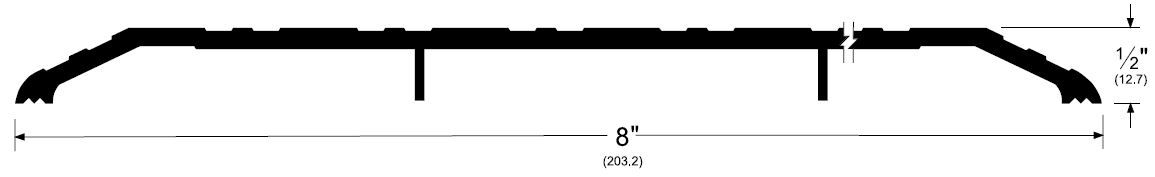

- Dimensions
-
Overall Height.5" Height
-
Overall Width8" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, BHMA Certified
-
ANSI DesignationJ32100, J32130
-
Warranty5 Year Limited Warranty
-
