Hager 9886 Bypass Set, Aluminum Double Track with Fascia, 250 Lbs., 4 Doors, 96" Length

Hager 9886 Sliding Door Series with Double Bypass Track
Hager Companies

Hager 9886 Heavy Duty Bypass Sliding Door Series includes all the parts necessary to install 4 Bypass Panels, 1 3/8" to 1 3/4" Thick. Bypass Sets are available for doors weighing up to 250 Lbs. and are provided with a 96" double box track.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      HG9886
    • Market price:$547.47
      • save 20%
    • Starting price: Price: $437.98 per item


    Click here to view Hager 9886 Series from Hager Full Line Catalog.

    Included parts for 9886 Bypass sets: Components can be ordered separately, see links below:

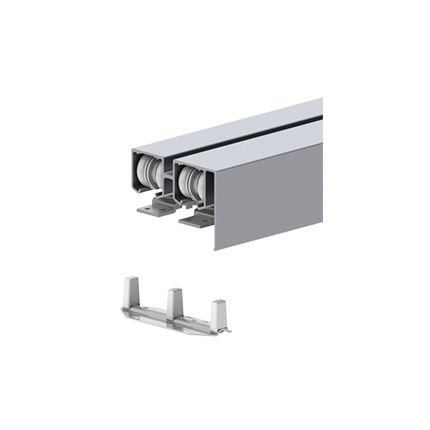

    Track Materials: Heavy Duty Aluminum Double Box Track with Jump Proof "V" shaped rails and built in smooth fascia.

    Door Hangers: Zinc plated Steel Hangers with ball bearing axles. Self-aligning to allow consistent contact with track.

    Wheel Dimensions: 1 1/4" Diameter

    Door Bottom Guide: Provided standard with 9909 Heavy Duty Adjustable Door Guide.

    Fascia: Built in 3/4" smooth fascia. Fascia is meant to be covered with decorative trim and not be left exposed.

    Height Clearance:

    • Minimum Clearance - Door Height + 3"
    • Maximum Clearance - Door Height + 3 5/8"

    Width Clearance: 3 Door Bypass - 3 times door width minus 2".

    Installation: Simple to install, all mounting hardware included.

    Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    For additional options for 250 Lbs. doors, see our Hager 9612 Bypass Track Sliding Door Series.

      • SKU
        HG9886
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      H9886
    • About This Product
      • Door Mount
        Surface Mount
      • Track Type
        Double Box Track
      • System Type
        Bypass
      • Included Parts
        Aluminum Box Track -9801 (1 ea.)
        Four Wheel Ball Bearing Hanger – 9827 (8 ea.)
        Door Guide – 9909 (2 ea.)
        #8 x 5/8” Phillips Truss Head Screws (2 ea.)
        #8 x ¾” Phillips Pan Head Screws (3 ea.)
        #8 x 1” Phillips Pan Head Screws (16 ea.)
        #8 x 1 1/2” Phillips Pan Head Screws (36 ea.)
        Door Stop – 9880 (1 ea.)
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        Up to 250 lbs
      • Door Thickness
        1 3/8" to 1 3/4" Thick
      • Track Length
        96" Length
    • Special Features
      • Special Features
        Fascia, 4 Door System
    • Compliance Details
      • Compliance Details
        ANSI/BHMA A156.14
      • ANSI Designation
        D8731, D8751
      • Warranty
        1 Year Limited Warranty

    Click to print Hager 9885 Sliding Door Hardware Product Specs.

    Dimensions:

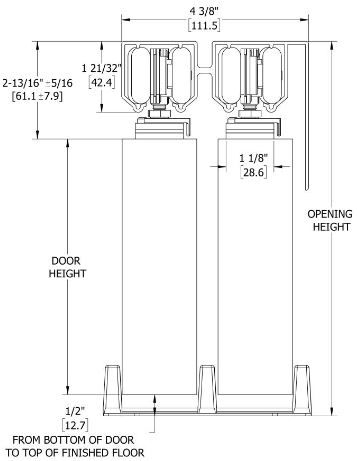

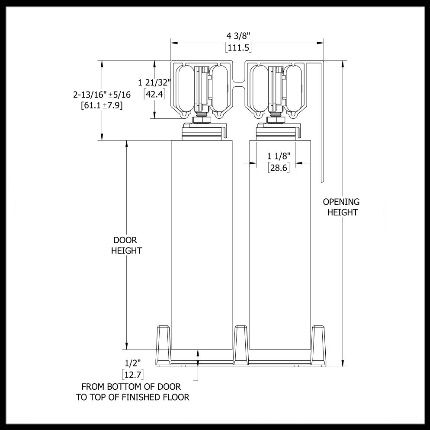

    Hager 9885 By-Pass Set Dimensions

    Clearance:

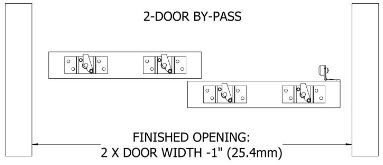

    Hager 9885 By Pass Sets Clearance Dimensions
