Hager 9612 Bypass Track Sliding Door Series, Doors up to 250 Lbs

This Bypass Sliding Door Series includes all the parts necessary to install 2 Bypass Panels 1 3/4" or 1 3/8" thick. Bypass Sets are available for doors weighing up to 250 Lbs. with variations in sizing.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information

Click here to view Hager 9612 Series from Hager Full Line Catalog.

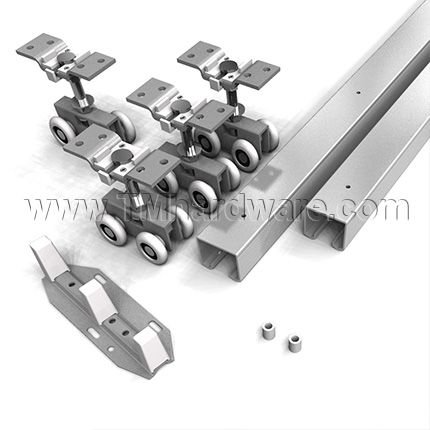

Included Parts for 9612 Bypass sets: Components can be ordered separately, see links below.

(2 ea.) Aluminum Track (9821)

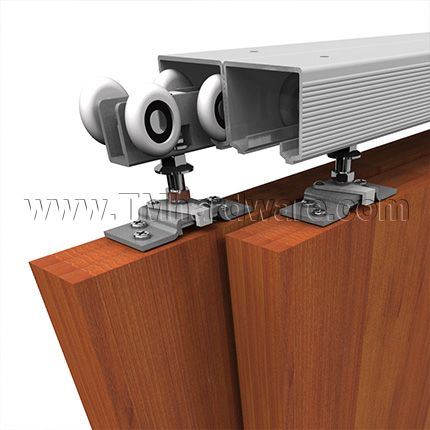

(4 ea.) Four Wheel Hangers with Top Mount Plate (9825)
(1 ea.) Adjustable Door Guide (9909)
(1 ea.) Spacer Kit (9573)
(5 ea.) #8 x 1 1/2" Phillips Pan Head Screws
(2 ea.) #8 x 3/4" Phillips Pan Head Screws
(8 ea.) #8 x 1" Phillips Pan Head Screws
(16 ea.) #8 x 5/8" Torx Pan Head Screws

Mounting Type: Heavy Duty Aluminum Sidewall Bypass Track and Hardware for 2 doors.

Weight Capacity: Standard for Doors up to 250 Lbs. For doors up to 150 Lbs. see our Hager 9611 Bypass Sets.

Track Lengths: Available in stock lengths up to 96". Tracks up to 144" lengths can be purchased through our office.

Materials: Track is made of Extruded Aluminum with jump proof twin channel design. Hanger are made from Zinc plated Steel and have pre-lubricated Celcon Wheels.

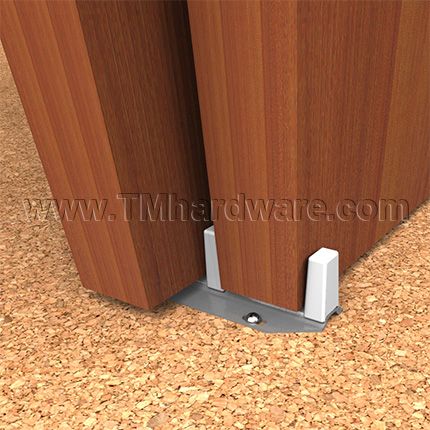

Door Bottom Guide: Standard kit provided with Steel adjustable guide for doors 3/4" - 1 3/4" thick.

Hangers: Hangers have 1" diameter wheels.

Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

See our Hager 9676 Bypass Sets for Doors up to 150 Lbs.

- SKU
  HG9612-60_019368
QuickShip
No
Manufacturer
Hager Companies
MPN
9612
About This Product
- Mounting Type
  Sidewall Mount
- Door Mount
  Surface Mount
- Track Type
  Double Box Track
- System Type
  Bypass
- Included Parts
  Aluminum Track – 9821 (2 ea
  Four Wheel Hangers with Top Mount Plate – 9825 (4 ea)
  Adjustable Door Guide – 9909 (1 ea.)
  Spacer Kit – 9573 (1 ea)
  #8 x 1-1/2” Phillips Pan Head Screws (5 ea)
  #8 x ¾” Phillips Pan Head Screws (2 ea)
  #8 x 1” Phillips Pan Head Screws (8 ea)
  #8 x 5/8” Torx Pan Head Screws (16 ea)
- Material
  Aluminum
Dimensions
- Door Panel Weight
  Up to 250 lbs
- Door Thickness
  1 3/8" to 1 3/4" Thick
- Height Clearance
  Minimum Clearance - Door Height + 2 9/16"
  Maximum Clearance - Door Height + 3 3/16"
- Width Clearance
  2 times door width minus 1"
- Length
  60" By-Pass Track (2x30" Doors), 72" By-Pass Track (2x36" Doors), 96" By-Pass Track (2x48" Doors)
Compliance Details
- Compliance Details
  ANSI/BHMA A156.14
- ANSI Designation
  D8731, D8751
- Warranty
  1 Year Limited Warranty

Click to print Hager 9612 Bypass Set Product Specs.

Product Specs:

Hager 9611, 9612 Bypass Sets Product Specs

Click to view and print Hager 9611 Bypass Kit Installation Instructions.
