Hager 9611 Bypass Track Sliding Door Series, 150 Lbs./Door
This Bypass Sliding Door Series includes all the parts necessary to install 2 Bypass Panels 1 3/4" or 1 3/8" thick. Bypass Sets are available for doors weighing up to 150 Lbs. with variations in sizing.
PRICED PER SET - See full product details and specs in the tabs below.
Click here to view Hager 9611 Series from Hager Full Line Catalog.

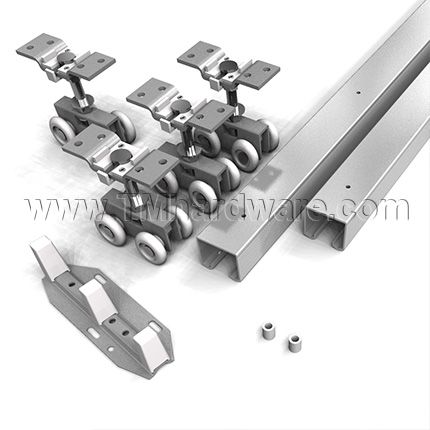

Included Parts for 9611 Bypass sets: Components can be ordered separately, see links below.
- (2 ea.) Aluminum Track (9821)
- (4 ea.) Four Wheel Hangers with Top Mount Plate (9824)
- (1 ea.) Adjustable Door Guide (9909)
- (1 ea.) Spacer Kit (9573)
- (5 ea.) #8 x 1 1/2" Phillips Pan Head Screws
- (2 ea.) #8 x 3/4" Phillips Pan Head Screws
- (8 ea.) #8 x 1" Phillips Pan Head Screws
- (16 ea.) #8 x 5/8" Torx Pan Head Screws
Mounting Type: Heavy Duty Aluminum Sidewall Bypass Track and Hardware for 2 doors.
Track Lengths: Available in stock lengths up to 96". Tracks up to 144" lengths can be purchased through our office.
Materials: Track is made of Extruded Aluminum with jump proof twin channel design. Hanger are made from Zinc plated Steel and have pre-lubricated Celcon Wheels.

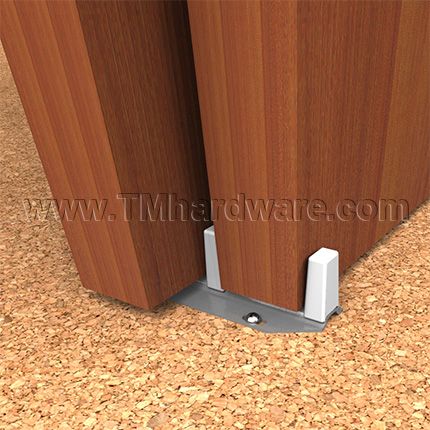

Door Bottom Guide: Standard kit provided with Steel adjustable guide for doors 3/4" - 1 3/4" thick.
Hangers: Hangers have 1" diameter wheels.

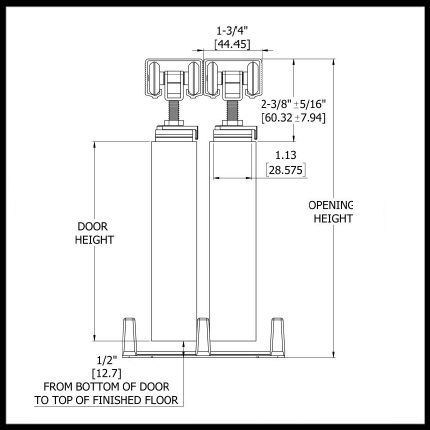

Height Clearance:
- Minimum Clearance - Door Height + 2-9/16"
- Maximum Clearance - Door Height + 3-3/16"

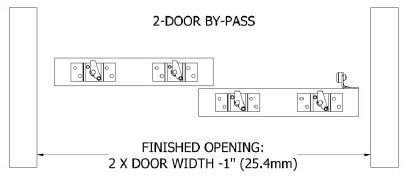

Width Clearance: 2 x Door Width -1"
Installation: Simple to install, all mounting hardware included.
Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNH9611
- About This Product
-
Door MountSurface Mount
-
Track TypeDouble Box Track
-
System TypeBypass
-
Included PartsAluminum Track – 9821 (2 ea.)
Four Wheel Hangers with Top Mount Plate – 9824 (4 ea.)
Adjustable Door Guide – 9909 (1 ea.)
Spacer Kit – 9573 (1 ea.)
#8 x 1 ½” Phillips Pan Head Screws (5 ea.)
#8 x ¾” Phillips Pan Head Screws (2 ea.)
#8 x 1” Phillips Pan Head Screws (8 ea.)
#8 x 5/8” Torx Pan Head Screws (16 ea.) -
MaterialAluminum
-
Length60" By-Pass Track (2x30" Doors), 72" By-Pass Track (2x36" Doors), 96" By-Pass Track (2x48" Doors)
-
- Dimensions
-
Door Panel WeightUp to 150 lbs
-
Door Thickness1 3/8" to 1 3/4" Thick
-
- Compliance Details
-
Compliance DetailsANSI/BHMA A156.14
-
ANSI DesignationD8731, D8751
-
Warranty1 Year Limited Warranty
-
Click to view and print Hager 9611 Bypass Kit Installation Instructions.
