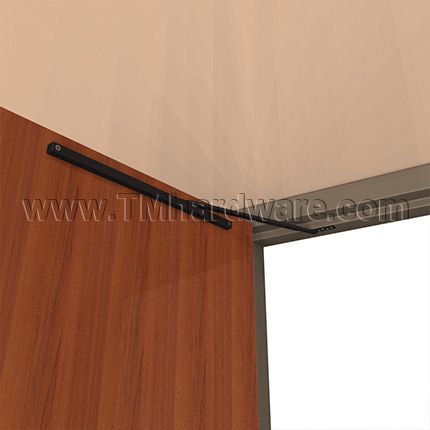

Hager, Grade 2 Medium Duty, Overhead Door Holder and Stop

Hager Grade 2 Medium Duty Overhead Holder and Stop is recommended for use in office buildings and other standard duty commercial applications. Holder is non-handed, made of steel or stainless steel and is available in choice of finish. It also has the option of Surface Mounted or Concealed Mounted. Available in Hold-open, Stop-Only, and Friction functions. See below for dimensions and options.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information

Size
Finish
Function
Surface Mount

Concealed Mount

Mounting: Surface Mount

Quantity

Add to compare

Functions:

Friction Hold Open (6015) - The multi-point friction hold open function mechanism is adjustable for resistance to door movement. It is not for use on fire-rated openings.
Stop Only (6016) - The stop only function provides a reliable method of door control. A shock absorbing spring stops the door. It is UL Listed for fire rated components.
Hold Open (6017) - The hold open function provides a selective hold open function with easy to adjust tension. It may be turned on or off and includes
the stop only function. It is not for use on fire-rated openings.

Doors:

Single acting doors for concealed and surface mounted
Double acting doors for concealed mounted only

Openings: Degree of opening is fully adjustable and can be adapted to changing needs between 85° - 110°

Door Thickness:

1-3/4” (44 mm) thick-Standard
1- 3/8” to 2-1/4” (36-57 mm) thick, please add door size to order comments before purchasing.

Installation: Heavy shock absorber spring provides 5° to 7° compression before deadstop. Standard screw packet included for wood or metal door and frame applications

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for product details.

This product has a 5 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.

For additional Overhead Holders and Stops, see our Hager Grade 1 Heavy Duty Overhead Holder and Stop

- SKU
  HG6017ALM
Material
Stainless Steel, Steel
Strength
Standard / Medium Duty
Size
18" - 33" Width, 33" -51" Width
Function
Hold-Open, Stop- Only, Friction Hold- Open
Mounting
Surface Mount, Concealed Mount
QuickShip
No
Manufacturer
Hager Companies
MPN
H6000
Finishes
- Finish
  Oil Rubbed Bronze (US10B), Satin Stainless Steel (US32D), Aluminum Powder Coated
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  C01541, C02541, C01511, C02511, C04531, C05531
- Warranty
  5 Year Limited Warranty

Click to Print Product Data Sheet

16 - Stop Only
Concealed Mounted: ANSI CO1541
Surface Mounted: ANSI CO2541

17 - Hold Open
Concealed Mounted: ANSI CO1511
Surface Mounted: ANSI CO2511

15 - Friction
Concealed Mounted: ANSI CO4531
Surface Mounted: ANSI CO5531

All finishes comply with BHMA / ANSI Codes:

Polished Brass US3 / 605
Oil-rubbed Bronze US10B / 613
Brushed Chrome US26D / 626
Satin Stainless Steel US32D / 630
