Hawa Folding Concepta 25 Bi-Folding Pocket Pivot System, 2 or 4 Door Application, Doors up to 55 LB

Name: Hawa Folding Concepta 25 Bi-Folding Pocket Pivot System, 2 or 4 Door Application, Doors up to 55 LB
Brand: Hafele
SKU: HF408.31.014
Price: 3667.55 USD
Availability: InStock

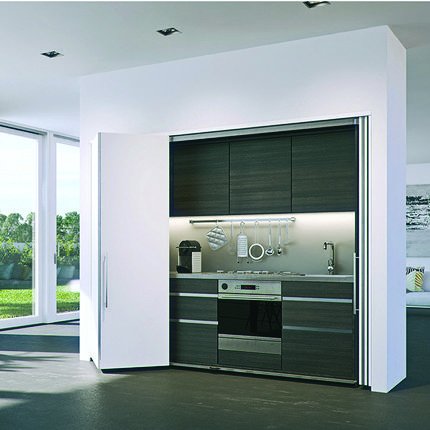

Hawa Folding Concepta Installed in a kitchen

Hafele Hawa Concepta 25 is a concealed pocket pivot sliding system for oversized bi-fold doors. Doors are folded and concealed into cabinets or wall niches. Can handle weight up to 55 Lbs. per panel with a door thickness of up to 1" and door width up to 27-9/16".

Set Includes: All necessary hardware to install 2 doors, for a 4 door application purchase (1) Right and (1) Left Hand set.

PRICED PER SET

See tabs below for additional information

Quantity

Add to compare

Hafele Hawa Concepta 25 is a concealed pocket pivot sliding system for oversized bi-fold doors. Doors are folded and concealed into cabinets or wall niches. Click to view Hawa Folding Concepta 25 for Wooden Folding Sliding Doors Catalog

Door Dimensions:

Max. Door Weight: 55 LB / panel, 110 LB / pair
Door Height: 49-3/16" thru 72-13/16", 72-7/8" thru 102-3/8"
Door Width: 11-13/16" thru 27-9/16"
Door Thickness: 3/4" - 1"

Application:

For Right or Left Handed doors
Each set is for a 2-door application
For 4-Door Applications, order 1 left and 1 right hand set.
Click here to view for a 3 Door Pocket Pivot Application.

Set Includes: Set Includes all components for a 2-panel application

1 Complete scissor assembly, with 2 scissor assembly guides
1 Concealed hinge, with closing spring
3 Concealed centre hinges
2 Running gears (1 each with 1 roller and 2 rollers)
1 Guide track - 83.47" (2120 mm)
2 Running tracks with adapter
1 Guide brush with profile
1 Fascia for door gap
2 Connecting profiles for Connector (1 each left and right)
4 Connectors (2 each inner side/outer side)
1 Accessory set and mounting accessories

Optional Accessories:

Hafele #408.30.961 - Cabinet bottom profile with leading ramp and drilling jig
Hafele #408.30.229 - Door Centering Component, Magnetic. Required for doors installed into recess or cabinet without a bottom panel
Hafele #408.30.970 - Strengthening Profile Component. Reinforces the cabinet top panel if supporting center panels are not desired.
Optional accessories can be purchased through our office, via quote.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view or Full Warranty Policy.

Click here to view Hawa Junior 250A Sliding Door Hardware.

- SKU
  HF408.31.009
QuickShip
No
Manufacturer
Hafele
MPN
408.31.000, 408.31.001, 408.31.002, 408.31.003, 408.31.004, 408.31.005, 408.31.006, 408.31.007,
Handing
Right Handed, Left Handed
Door Height
49.19" - 72.81", 72.81" - 102.38"
Finishes
- Finish
  Clear Anodized Aluminum (US28), Black Anodized Aluminum (315)
