HES 1600 Electric Strike, For Cylindrical and Mortise Latchbolt and Deadbolt Locks

HES 1600 Electric Strike, For Cylindrical and Mortise Latchbolt and Deadbolt Locks
HES

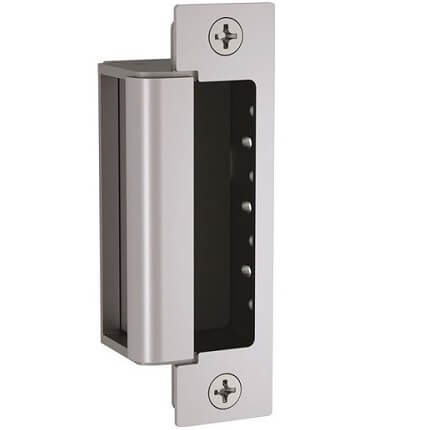

The HES 1600 electric strike works with all brands of cylindrical and mortise latchbolt and deadbolt locks. It is designed to work with a 4-7/8" strike plate and has a depth of 1-5/8". The HES 1600 can accommodate up to a 1" deadbolt with enhanced vertical-cavity spacing. The strike includes the body only; for a complete package of an electric strike with faceplates, view the 1600 Complete Pac for latchbolts, deadbolts, or latchbolts and deadbolts. Available in a choice of options; select from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS1600-630
    • Market price:$612.00
      • save 40%
    • Starting price: Price: $367.20 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 1600 electric strike works with all brands of cylindrical and mortise latchbolt and deadbolt locks.

    Parts Included:

    • Electric strike body
    • Trim enhancer
    • Pigtails (12 VDC and 24 VDC)
    • 5/64” Hex wrench
    • #6-32 x 3/16” Phillips head screws

    Faceplate kit is not included with this product and is available separately. For a complete package of an electric strike with faceplates, view the 1600 Complete Pac for latchbolts, deadbolts, or latchbolts and deadbolts.

    Available Finishes: Various finishes available; choose from the options above.

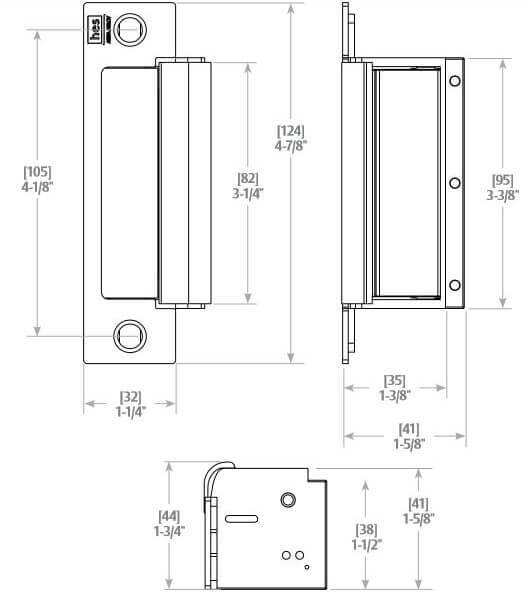

    Material: Heavy duty stainless steel

    Depth: 1-5/8" (41.3 mm)

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Shim Height: 3-3/8" (85.7 mm)

    Lip Extension: 1/2" (12.7 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 1600 Electric Strikes Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 240 mA at 12 VDC/120 mA at 24 VDC
    • PoE friendly

    Features:

    • Tamper-resistant
    • Field adjustable integrated shim
    • Endurance - 1 million cycles
    • Field replaceable components
    • Compatible with ElectroLynx® connectors

    Optional Features: Select from the dropdown above.

    • LM - Lock monitor
    • DLM - Dual lock monitors
    • LMS - Lock monitor and strike monitor
    • DLMS - Dual lock monitors and strike monitors

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 1600 electric strike, see our Installation Instructions, or view the video clip above.

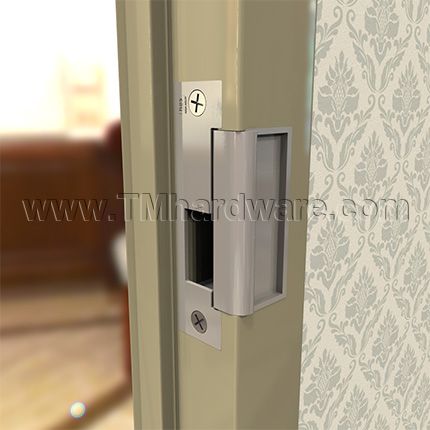

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 157 Torx screws
    • HESCUT-MTK Metal template kit
    • 1600-104-xxx Lip extension trim adapter (finish to match)
    • 1600-106-xxx 1006 Adapter and trim enhancer kit (finish to match)
    • OPT-1SRK Spring replacement kit
    • MOD-1SOL Solenoid replacement module

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 1500C Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Latchbolt Locks.

      • SKU
        HS1600-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      1600
    • Optional Features
      Not Required, Lock Monitor, Dual Lock Monitor, Lock/Strike Monitor, Dual Lock/Strike Monitor
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Suede Powder Coat

    ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant

    UL 10C fire-rated, 3 hour single door (fail secure only)

    UL 10C fire-rated, 1-1/2 hour double door (fail secure only)

    CAN/ULC-S104 fire door conformant

    NFPA-252 fire door compliant

    ASTM-E152 fire door compliant

    California Fire Marshal listed

    ANSI/SDI A250.13 windstorm resistant

    Florida Building Code approved TAS 201, 202, 203

    ANSI-ASTM E330

    Sustainability documentation

    I1500 Certification Symbols
