HES 1600CLB Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Latchbolt Locks

The HES 1600CLB Complete Pac electric strike works with all brands of cylindrical and mortise latchbolt locks. It has a depth of 1-5/8" with enhanced vertical-cavity spacing. The Pac includes a HES 1600 electric strike body and a 1LB faceplate kit. Available in a choice of options; select from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS1600CLB-630
    • Market price:$624.00
      • save 30%
    • Starting price: Price: $436.80 per item

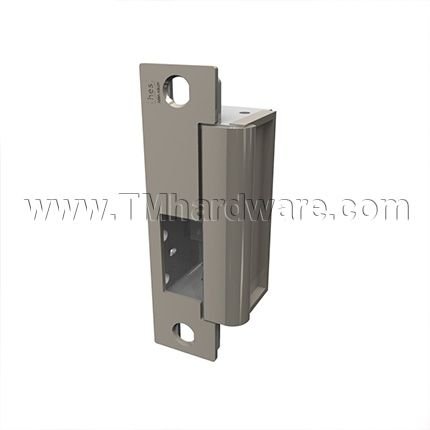

    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 1600CLB Complete Pac electric strike works with all brands of cylindrical and mortise latchbolt locks.

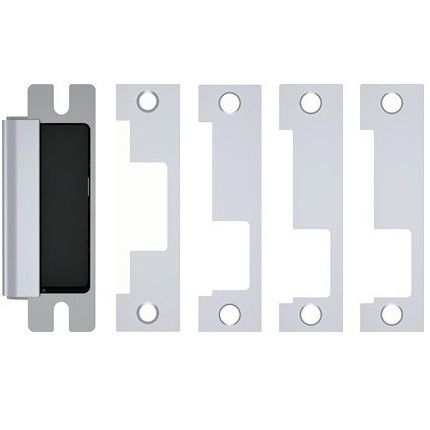

    Parts Included:

    • Electric strike body
    • Trim enhancer
    • Pigtails (12 VDC and 24 VDC)
    • 5/64” Hex wrench
    • #6-32 x 3/16” Phillips head screws
    • 1LB Faceplate kit - Includes 1J, 1K, 1KM, & 1KD faceplates (for details and measurements, view the faceplates tab below).

    To purchase this strike body without a faceplate kit, view our HES 1600 Electric Strike.

    Available Finishes: Various finishes available; choose from the options above.

    Material: Heavy duty stainless steel

    Depth: 1-5/8" (41.3 mm)

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Shim Height: 3-3/8" (85.7 mm)

    Lip Extension: 1/2" (12.7 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 1600CLB Electric Strikes Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 240 mA at 12 VDC/120 mA at 24 VDC
    • PoE friendly

    Features:

    • Tamper-resistant
    • Field adjustable integrated shim
    • Endurance - 1 million cycles
    • Field replaceable components
    • Compatible with ElectroLynx® connectors

    Optional Features: Select from the dropdown above.

    • LM - Lock monitor
    • DLM - Dual lock monitors
    • LMS - Lock monitor and strike monitor
    • DLMS - Dual lock monitors and strike monitors

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 1600CLB electric strike, see our Installation Instructions, or view the video clip above.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 157 Torx screws
    • HESCUT-MTK Metal template kit
    • 1600-104-xxx Lip extension trim adapter (finish to match)
    • 1600-106-xxx 1006 Adapter and trim enhancer kit (finish to match)
    • OPT-1SRK Spring replacement kit
    • MOD-1SOL Solenoid replacement module

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our HES 1600CS Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Latchbolt and Deadbolt Locks.

      • SKU
        HS1600CLB-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      1600CLB
    • Optional Features
      Not Required, Lock Monitor, Dual Lock Monitor, Lock/Strike Monitor, Dual Lock/Strike Monitor
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Suede Powder Coat

    Click to Print

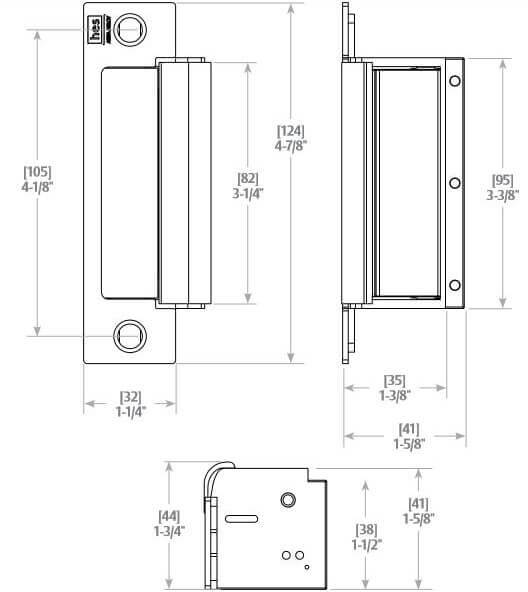

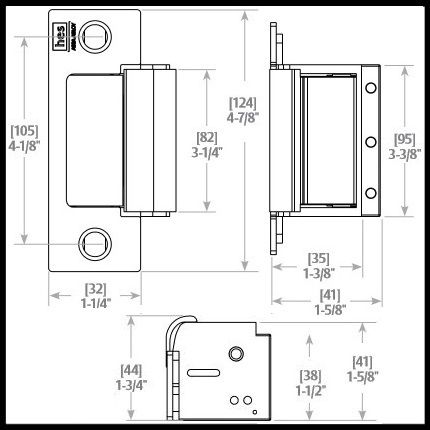

    I1600CLB Product Specs

    (For faceplate details and measurements, view the faceplates tab below.)

    ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant

    UL 10C fire-rated, 3 hour single door (fail secure only)

    UL 10C fire-rated, 1-1/2 hour double door (fail secure only)

    CAN/ULC-S104 fire door conformant

    NFPA-252 fire door compliant

    ASTM-E152 fire door compliant

    California Fire Marshal listed

    ANSI/SDI A250.13 windstorm resistant

    Florida Building Code approved TAS 201, 202, 203

    ANSI-ASTM E330

    I1500 Certification Symbols

    Click to Print

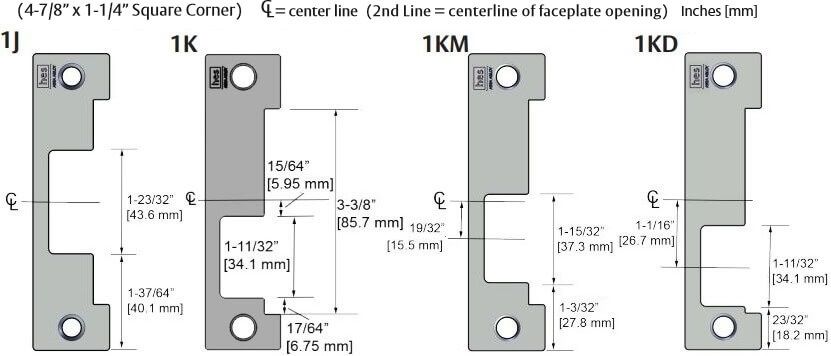

    I1600CLB Faceplate Specs

    I1600CLB Faceplates Chart

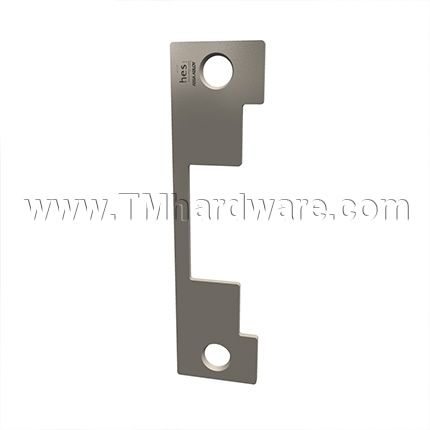

    1J (4-7/8" x 1-1/4"):

    • For use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts.
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323

    1K (4-7/8" x 1-1/4"):

    • For use with Mortise locksets with a deadlatch positioned above the latchbolt.
    • Compatible Locksets: Baldwin, Marks, PDQ, Others.
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323

    1KM (4-7/8" x 1-1/4"):

    • For use with Mortise locksets with a deadlatch positioned below the latchbolt.
    • Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above.
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323

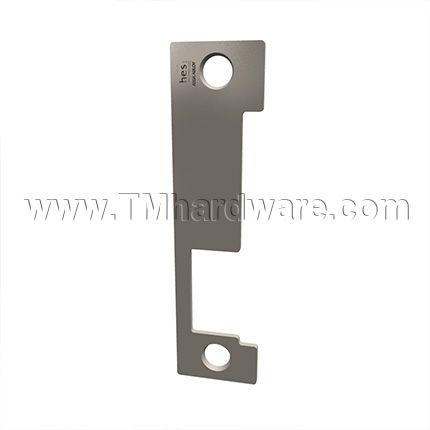

    1KD (4-7/8" x 1-1/4"):

    • For use with Mortise locksets with a deadlatch positioned above the latchbolt.
    • Compatible Locksets: Jackson, Sargent (7700 & 8100), Schlage, Yale (8700).
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323
