HES DB Option Faceplate Kit, for HES 1006 Electric Strike

HES DB Option Faceplate Kit, for HES 1006 Electric Strike
HES

This HES DB Option Faceplate Kit includes faceplates compatible for use with the HES 1006CDB, HES 1006CAS, and the HES 1006CS electric strike, of the HES 1006 series. The kit includes the N and H Option faceplate and works with all mortise and cylindrical locksets up to a 1" deadbolt. The mounting holes on the faceplates, enable the electric strike to be fastened to the door frame.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HSDB
    • Call for price!
    845-388-1300

    Faceplates fasten, embellish, and protect doors, and electric strikes. It is the part that gets mounted onto the side of the door, surrounding the latchbolt. This HES DB Option Faceplate Kit includes faceplates compatible for use with the HES 1006CDB, HES 1006CAS, and the HES 1006CS electric strike, of the HES 1006 series.

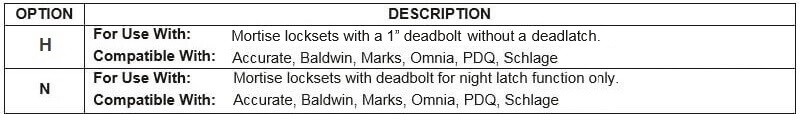

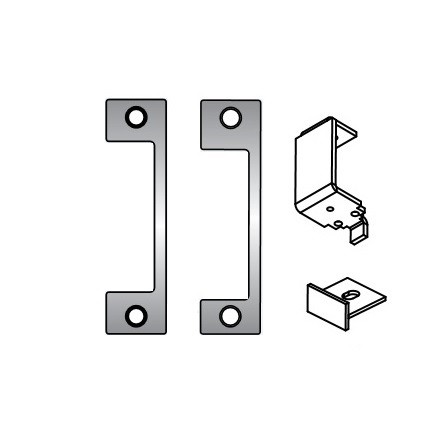

    Parts Included:

    • 1 HES H Option faceplate
    • 1 HES N Option faceplate
    • Mounting screws
    • Deadbolt Brackets

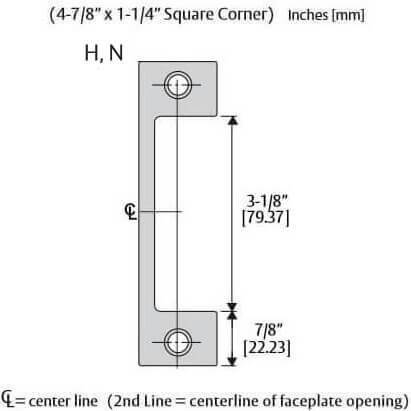

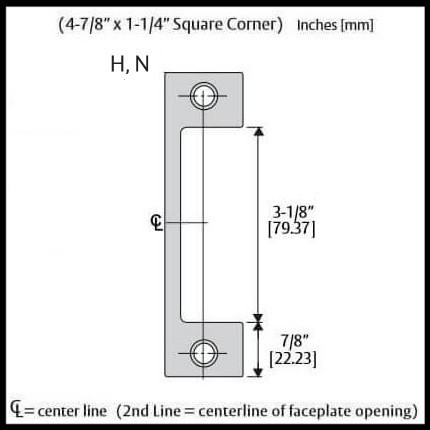

    For faceplate details and measurements, view the Product Specs tab below.

    Available Finish: Satin stainless steel (630)

    Material: Heavy duty stainless steel

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Frame Application: For hollow metal, concrete-filled metal, and aluminum doors.

    For Use With: All mortise and cylindrical locksets up to a 1" deadbolt without a deadlatch.

    Operation:

    • Mode 1: Night latch function - the deadbolt is retracted during traffic hours. The latchbolt is released by the keeper and keeper returns to the locked position.
    • Mode 2: Lockout function - the electric strike will not release if the deadbolt is extended.

    Certification: ANSI/BHMA Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333

    Installation: For details on how to install the HES H or N Option Faceplate with the 1006CDB, 1006CAS, or 1006CS electric strike, see our Installation Instructions.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES KM-2 Option Faceplate, for HES 1006 Electric Strike.
