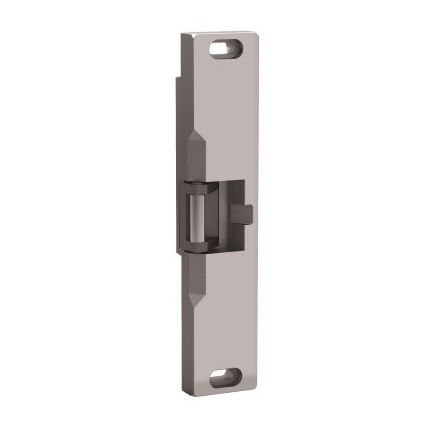

HES-Folger Adam 310-4S Electric Strike, Fire-Rated, For Squarebolt® Style Rim Exit Devices

Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES-Folger Adam 310-4S electric strike works with Squarebolt® style rim exit devices.

Parts Included:

• Electric strike body & faceplate
• #1/4-20" x 1" Faceplate mounting screws
• #14-2" Wood Screw
• #12-24 Body mounting screws
• #8-32 x 3/8" & 3/4" Setscrews
• Plug-in connector

Available Finish: Available in a choice of finishes, choose from the dropdown above.

Material: Constructed entirely of stainless steel for strength and corrosion resistance.

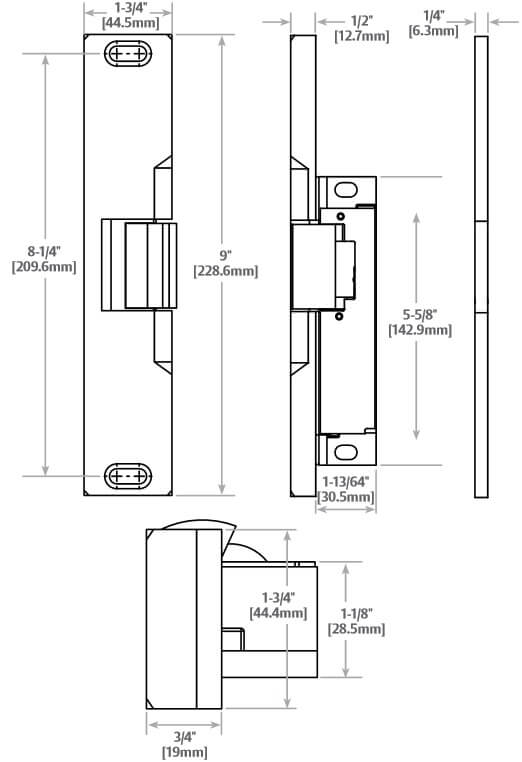

Strike Body Depth: 1-13/64" (30.5 mm)

Width: 1-3/4" (44.5 mm)

Height: 9" (228.6 mm)

Distance between Mounting Holes: 8-1/4" (209.6 mm)

Strength:

• Static - 1,500 lbs.
• Dynamic - 70 ft-lbs.

Handing: Non-handed

Frame Application: For single hollow metal, aluminum, and wood doors.

Operating Mode: Select from the dropdown above.

• Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
• Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

Please note: Operation in fail safe mode removes the fire-rating of the electric strike.

Electrical (DC Continuous Duty):

• 510 mA at 12 VDC/250 mA at 24 VDC

Features:

• Tamper-resistant
• Endurance - 1 million cycles
• Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
• Removal of the 1/4" integrated spacer plate allows for quick customization of faceplate thickness (from 3/4" to 1/2").
• Integrated ramps for better deadlatch handling
• In-frame horizontal adjustability
• Wider faceplate for greater versatility

Optional Feature: Latchbolt and locking cam monitor with auxiliary switch feature available, choose from the dropdown above. Switch is actuated by the main device (such as a circuit breaker) for signaling, interlocking, or other purposes.

Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

Installation: For details on how to install the HES-Folger Adam 310-4S electric strike, see our Installation Instructions.

Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

• 7000-SMB Surface mounting box
• 2001-1 Wire-in bridge rectifier
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
 Click here to view our Full Warranty Policy.

Click here to view our HES-Folger Adam 310-4 Electric Strike, Fire-Rated, For Rim Exit Devices up to a 3/4" Pullman Latchbolt.
