Hettich Grant Bi-fold 150 Sliding Door Hardware, Doors up to 150 Lbs. per Panel, 2 Panel / 4 Panel Applications
Hettich Grant Sliding Door Hardware for bi-fold doors installed in a 2 door or 4 door application. For doors 1" to 1 3/4" thick and up to 150 lbs. per panel (multi-fold up to 75 lbs.) Features a unique stay open/closed hardware design to keep doors in place. Used in medium duty top hung applications and ideal for closet doors. Track sold separately.
See full product details and specs in the tabs below.
PRICED PER SET
Product Options:
- 2 door set for 1 way doors with 2 panels.
- 4 door set for 2 way doors with 2 panels on each side.

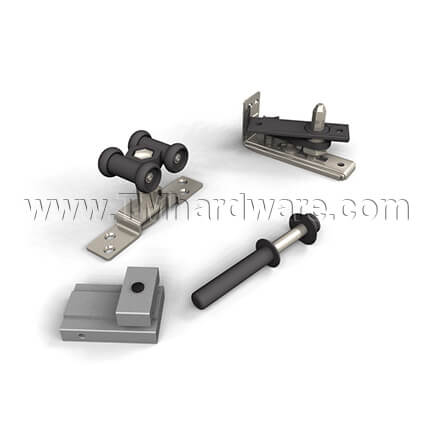

2 Door Set Includes:
- (1 ea.) Pivot Plate Assembly
- (1 ea.) Carrier 150E with quick release top plate
- (1 ea.) Plunger Spring Assembly
- (1 ea.) Floor Cam Assembly
- All necessary screws
Please note: Bi-fold hinge sets are not included.
4 Door Set Includes:
- (2 ea.) Pivot Plate Assembly
- (2 ea.) Carrier 150E with quick release top plate
- (2 ea.) Plunger Spring Assembly
- (2 ea.) Floor Cam Assembly
- All necessary screws
Please note: Bi-fold hinge sets are not included.
Applications: Medium duty folding door system used in top hung applications for residential and commercial applications. Ideal for closet doors. Can be used in bi-fold and multi-fold door applications (see product options tab for full range of applications.)
Door Weight: For doors weighing up to 150 Lbs. (68 Kg.) per panel in bi-fold and 75 lbs. (34 kg.) per panel in multi-fold applications.
Door Thickness: For door panels 1" (25.4 mm) - 1 3/4" (44.4 mm) thick.
Track: Track sold separately. To order this set with track included, see our Hettich Grant BF150 Hardware and Track.
Carrier: Ball bearing carrier with 4 wheels for smooth and long lasting operation.
Carrier Mounting: Carriers are mounted to the top of the door.

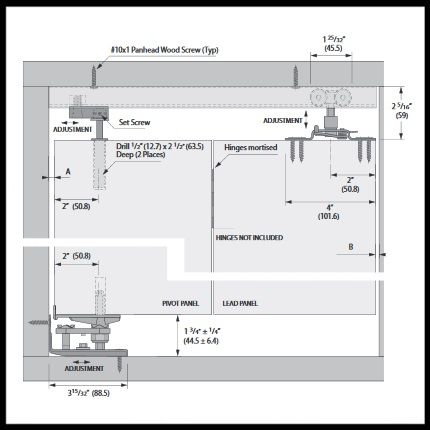

Headroom: 2 1/16" (52.4 mm) minimum - 2 9/16" (65.1 mm) maximum.
Features:
- Doors fold flat for easy access.
- Unique design keeps door in hold open or hold closed position.
- Floor cam functions as marking template to keep top and bottom holes aligned, no measuring or floor guide needed.
Certifications: Meets and/or exceeds ANSI/BHMA standards.
Optional Components: Bottom Guide Channel (1222), Guide Roller (1221). To order, please contact us or call our office at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For single door applications, see our Hettich Grant 71-034 Sliding Door Hardware.
-
QuickShipNo
-
ManufacturerHettich
-
MPN1135167; 1135252
-
Product Options2 Door Hardware Set, 4 Door Hardware Set
To order these options please contact us or call out office at (845) 388-1300.
