Hettich TopLine Grant 71-222 Sliding Hardware, 3/4" Thick Minimum, 150 Lbs.
Hettich TopLine Grant Sliding Door Hardware for single doors 3/4" thick minimum and up to 150 Lbs. Top mounted with adjustable headroom option. Used in medium duty commercial and residential grade sliding door applications for doors between rooms, closet doors and partitions. Track sold separately.
PRICED PER PACK

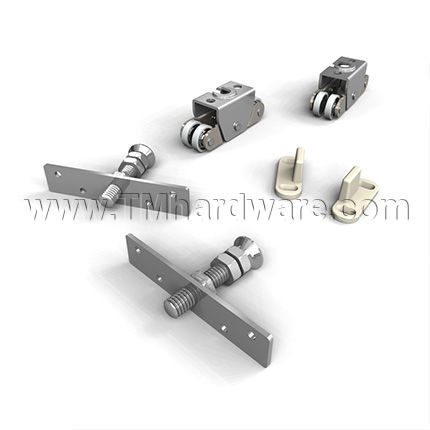

Set Includes:
- (2 ea.) Carriers 7000 ball bearing wheels
- (2 ea.) Top Plate with adjustable pendant bolts 7222

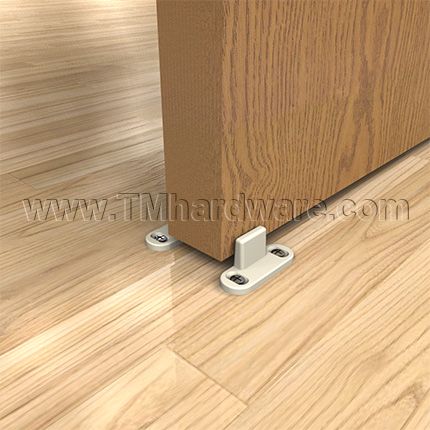

- (1 ea.) Floor Guide 110
- All Fixing Screws
- Wrench
Applications: Medium duty commercial and residential sliding door hardware for single door applications. Used on doors between rooms, closet doors, cabinets, storage walls and partitions.
Door Weight: For doors up to 150 Lbs. (68 Kg.)
Door Thickness: For 3/4" (19 mm) thick doors minimum.
Track: Heavy duty, aluminum I-beam track sold separately. To order this set with track included, see our Hettich Topline Grant 71-222 Sliding Door Hardware and Track.
Wheels: High quality precision ball-bearing wheels for smooth performance.
Top Plate: Steel with adjustable pendant bolt. Pivoting rocker arms ensure track-carrier contact.

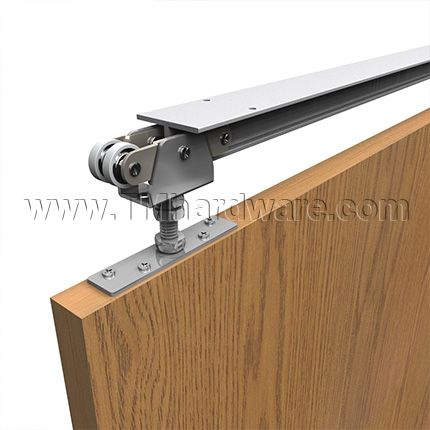

Carrier Mounting: Carriers are mounted to the top of the door.
Headroom: 2 1/8" (53.9 mm) minimum - 2 7/8" (73 mm) maximum, ball and socket suspension compensates for minor header misalignment.
Certifications: Meets and/or exceeds ANSI/BHMA standards. Made in the USA.
Optional Components: Bumper stop (7014), Carrier (7000) for doors up to 100 Lbs. To order, please contact us or call our office at (845) 388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For thicker door applications, see our Hettich TopLine Grant 72-134 Sliding Door Hardware.
