Hettich TopLine M Cabinet Body End Profile for Rear Most Door, 98" Length
Hettich 9146622 Cabinet Body End Profile for Topline M Systems, see Video Tab below. Applied to cabinet cavity near rear most door. For overlay, top running doors .59" -75" thick and up to 90.55" high.
PRICED PER SET - See product details and specs in the tabs below.
Click to view and print Hettich TopLine M Full Line Catalog.

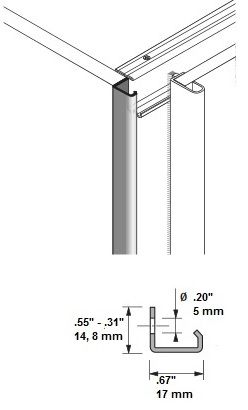

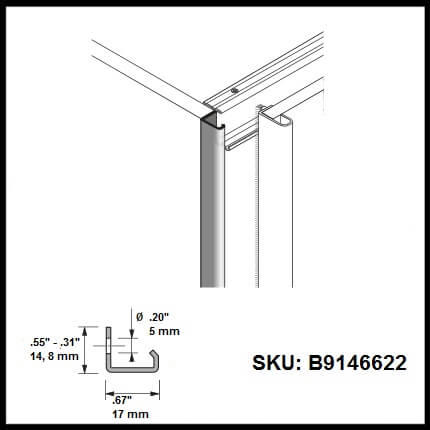

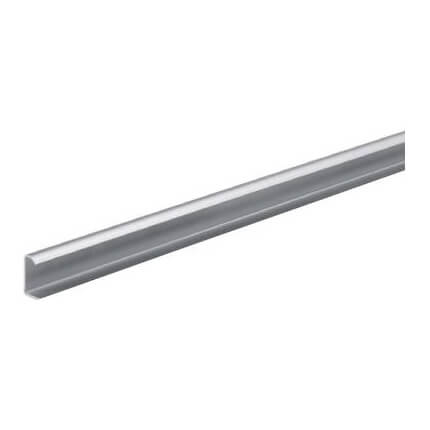

Hettich 9146622 Cabinet Body End Profile for Rear Most Door
Material: Silver Anodized Aluminum
Length: 98.43" (2500 mm)
Door Thickness: For doors .59"(15 mm), .63"(16 mm), .71" (18 mm) and .75" (19mm) Thick.
Maximum Door Height: 90.55" (2300 mm)
Installation: Predrilled for ease of installation.
Works in conjunction with Hettich TopLine M Fitting Set and Profile.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs tab for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
See our Hettich Cabinet Body End Profile for Front Most Door.
