Hettich Wingline L Bi-Fold Door Hardware for Overlay Doors, WITHOUT Self Closing Feature
If QuickShip logo is displayed near price, this product is in stock, ready to ship! Factory lead times will apply to options that do not display the QS Logo.Â
Hettich WingLine L Series is designed for wooden doors in overlay position, to create an impressive panoramic closet effect. Compatible with doors weighing up to 55LB with door height up to 94" and door width up to 24" wide. Hardware set does not include any self closing features - Pull to Move or Push to Move components are required ad well as a Runner Track Set, sold separately, see below for details.
PRICED PER SET

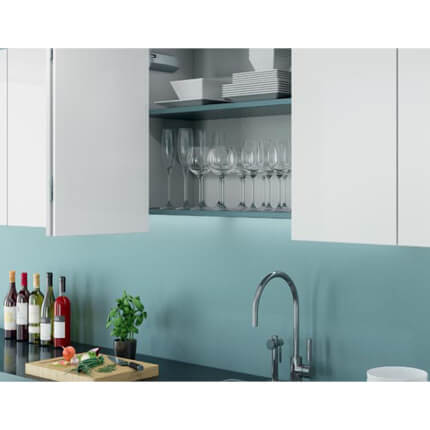

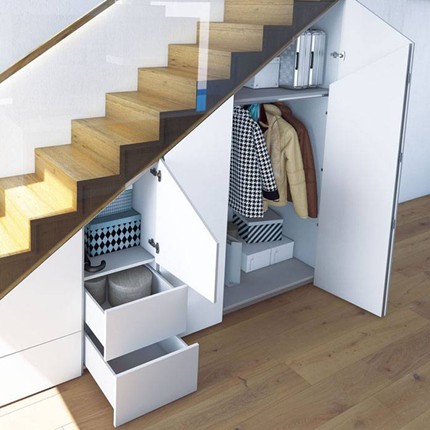

Experiencing folding doors in a new way. Hettich WingLine L lets you produce folding sliding doors in a completely new dimension of convenience. The revolutionary Push / Pull to move opening mechanism provides access to everything inside the cabinet with just one movement of the hand. An impressive panorama effect!Â
Further highlights: optimized running performance, soft opening and closing, tool-less installation as well as minimal door protrusion for efficiently organizing the space inside. WingLine L competently and securely moves door wings weighing up to 55 lbs and measuring up to 94½" in height: a talented all rounder for the bedroom, kitchen and office.
Click to view the latest Hettich Wingline L catalog.
Tracks and Additional Features can be purchased separately - select necessary links:

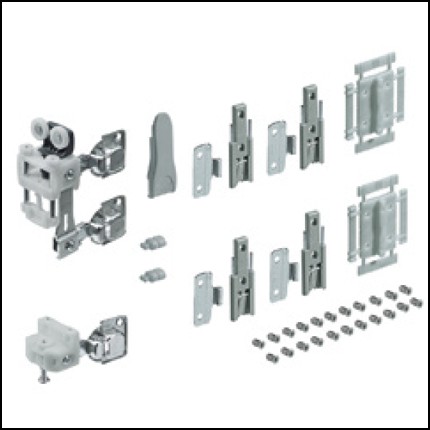

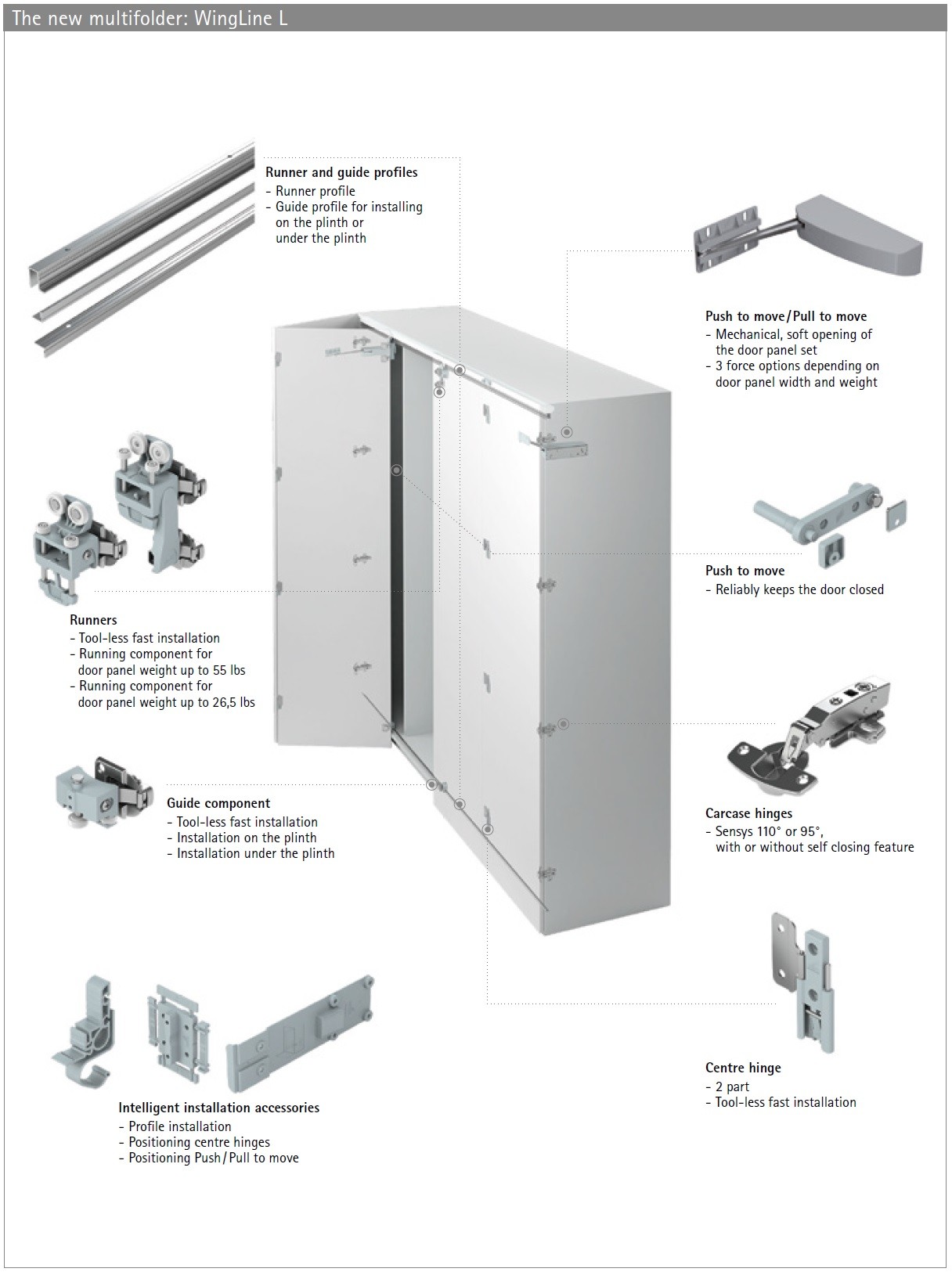

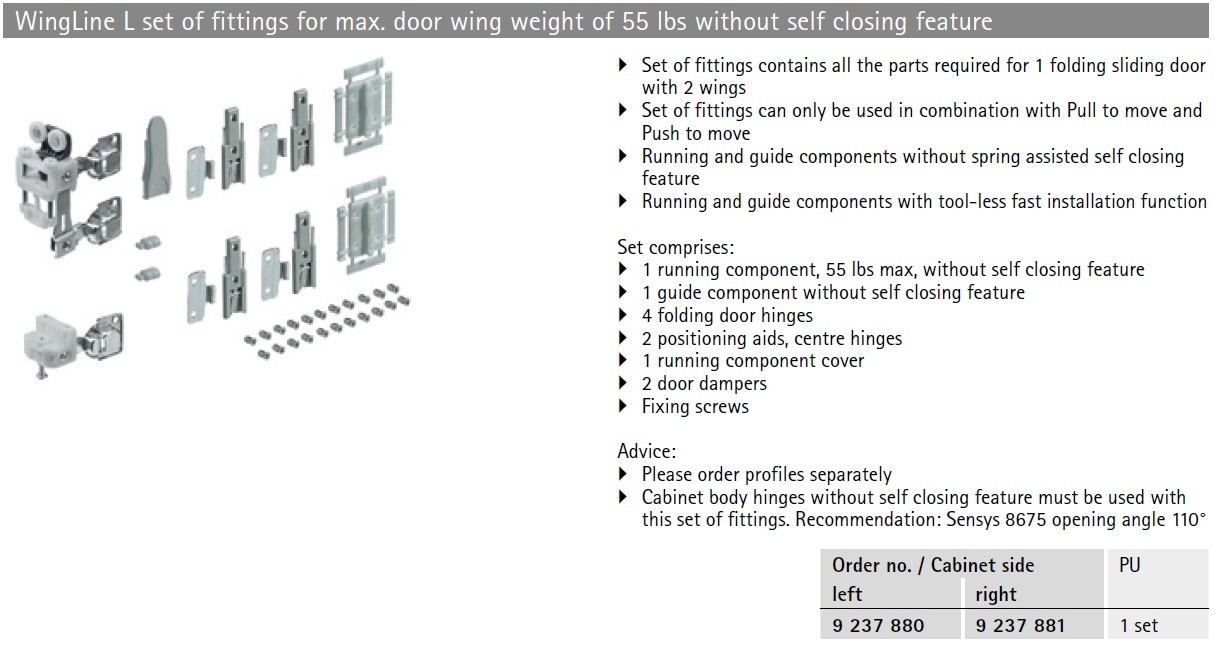

Set Includes:
- 1 Running Component without self closing feature
- 1 guide component without self closing feature
- 4 folding door hinges
- 2 positioning aids, center hinges
- 1 running component cover
- 2 door dampers
- Fixing screws
- Tracks and Open / Close mechanisms are NOT included, to be ordered separately
Compatible Tracks:
- Hettich Wingline L Runner Profile and Guide Profile Track Set
- Hettich WingLine L Runner Profile Track Only
- Hettich WingLine L Guide Profile Track Only
Additional Soft Close Feature - Push to Move OR Pull to Move is REQUIRED for installation.
- Hettich WingLine L Push to Move
- Hettich WingLine L Pull to Move
- Hettich WingLine L Pull to Move Silent
Cabinet Hinges: Cabinet body hinges with self closing feature must be used with this set of fittings (not included), recommended opening angle 110°.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.Â
-
QuickShipYes
-
ManufacturerHettich
-
MPN9237880; 9237881
- About This Product
-
Door MaterialWood Doors
-
Soft CloseIncluded
-
Door MountOverlay Mount
-
Track TypeProfile Type Track
-
System TypeBifold
-
Sliding SeriesHettich WingLine L
-
Included PartsSee Product Description
-
HandingRight Handed, Left Handed
-

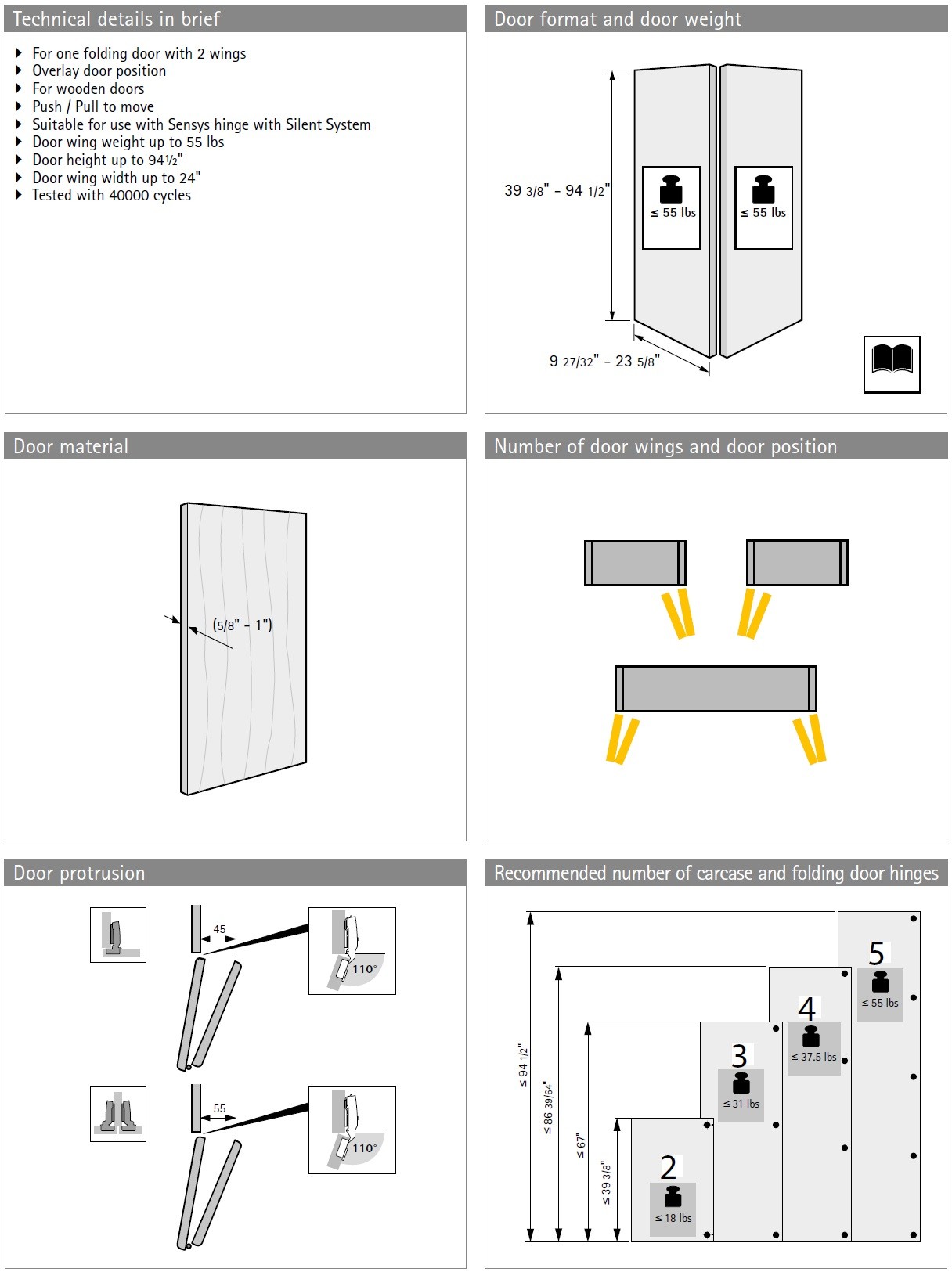

- Dimensions
-
Door Panel Weight55 LB Doors
-
Door WidthUp to 24" Wide
-
Door Thickness5/8" to 1" Thick
-
Door Height94.5" Height
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
