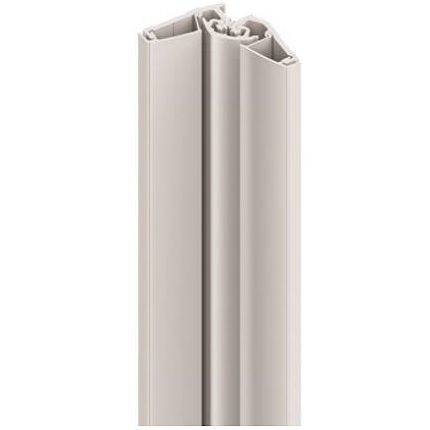

Ives 157XY Adjustable, Full Surface - Narrow Frame Continuous Hinge

Ives 157XY Adjustable, Full Surface Piano Hinge is a patented, easy-to-install, heavy duty, hinge. It can be adjusted laterally and vertically while hanging the door and is patented center loaded, with an interlocking bearing design. This hinge is constructed for doors that are maximum 48" wide and up to 550 pounds. Available in various sizes and finishes; choose from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS157XY-US28-83
    • Market price:$288.60
      • save 36%
    • Starting price: Price: $186.00 per item


    Piano Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame. This Aluminum Geared continuous hinge utilizes a single gear section for the leaf and a separate gear section for the frame side of the door.

    Material: 6063-T6 Aluminum

    Available lengths: Choose from options above.

    Handing: Non handed

    Finishes: Choose from options above.

    Design:

    • Full surface, easy-to-install, heavy duty.
    • Narrow frame leaf, center pivot.
    • Lateral and vertical adjustability while hanging the door.
    • Articulating cover design eliminates pinch point between center channel cover, door, and frame leaf covers.
    • 1/16" door inset
    • Patented center loaded with an interlocking bearing design.

    Hardware Included: 12-24 x 3/4" Steel self drilling / self tapping hex head screw

    Door Type:

    • For beveled or square edge doors
    • For doors with a maximum width of 48" and up to 550 pounds.

    Hospital Tip Feature: Optional ligature resistant and tamper resistant Hospital Tip Cap which provides a single uniform 45° angle surface with no exposed edges or openings. Choose from options above.

    Electrical Options: Additional options including optional mounting hardware may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    Compliance Details:

    • Meets ANSI 156.26 for 150lbs and 300lbs
    • UL10C certified

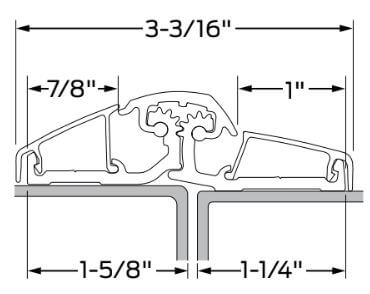

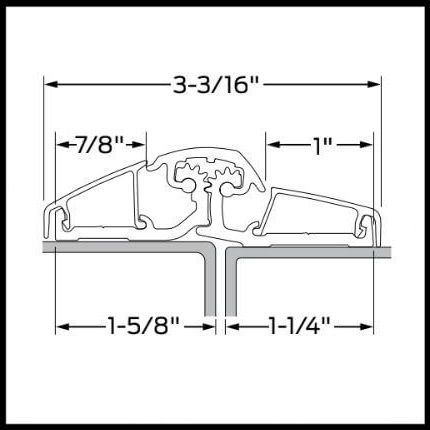

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 114XY Full Mortised Piano Hinge, Narrow Frame Leaf, Door Edge Protector.

      • SKU
        VS157XY-US28-83
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      157XY
    • Hospital Tip
      Not Required, Required
    • Finishes
      • Finish

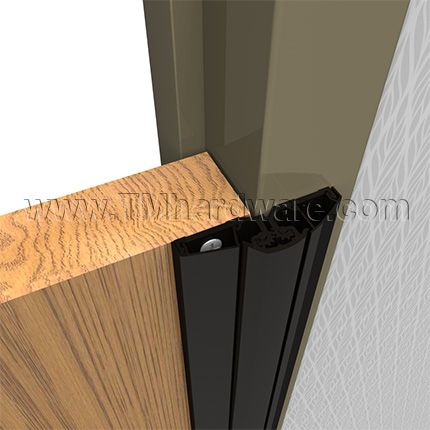

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
