Ives 3/4" Offset Intermediate Pivots Hinges for doors between 500 - 700lbs.

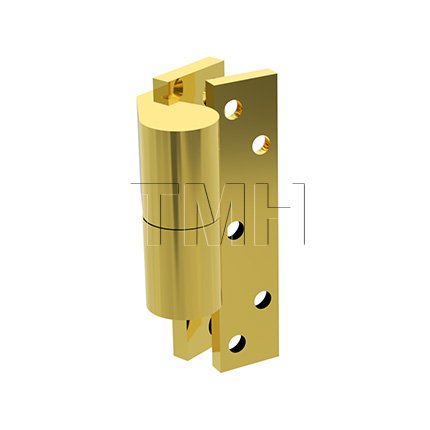

Ives 3/4" Offset Intermediate Pivots Hinges in Polished Brass (US3) Finish
Ives

Ives intermediate pivots are used to keep the door in alignment with the pivot hinges at the top and bottom of the door.  o be used in conjunction with 7215 Pivot Set, 7226 Pivot Set, 7227 Pivot Set.

PRICED PER ITEM

See tabs below for additional information
    • SKU
      VS7215-INT-605
    • Market price:$413.28
      • save 30%
    • Starting price: Price: $289.30 per item


    This Ives 7215-7226-7227 intermediate pivot is used for when the door weighs over the pivot set limit. Use one pivot for each 100 lbs.  It's used for doors over 7'0" in height and one every 2'6" as needed.

    Material: Cast Brass

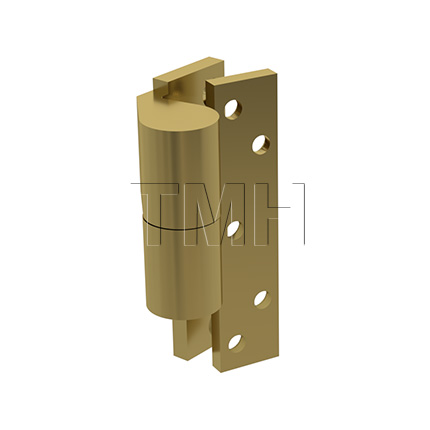

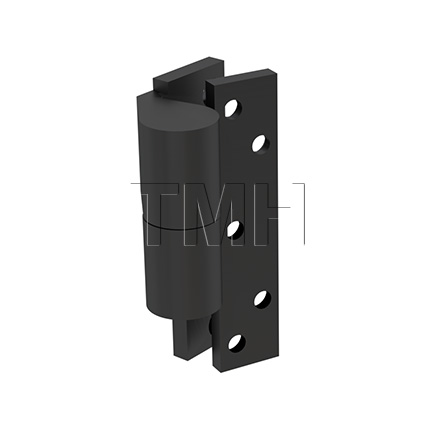

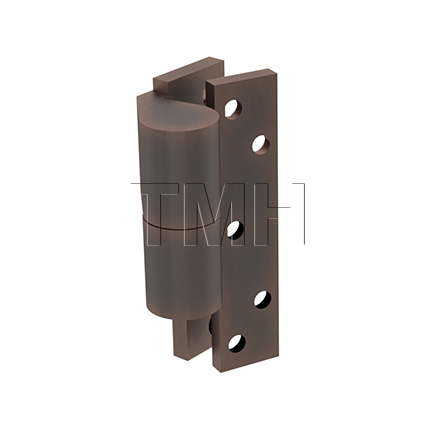

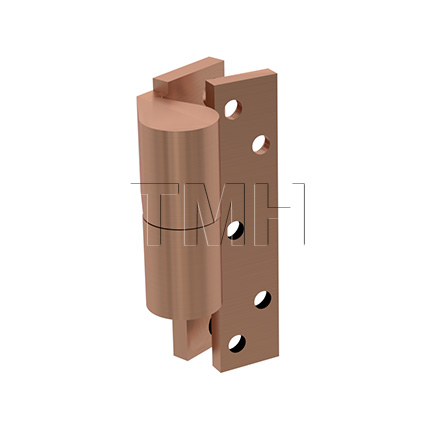

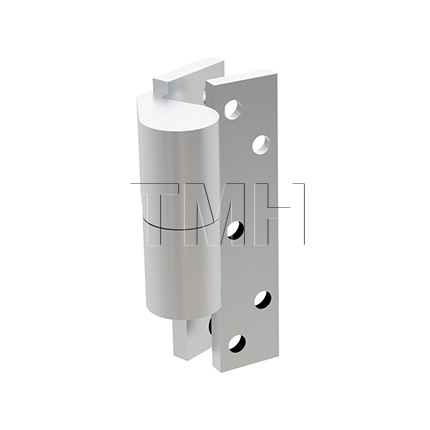

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Right Left Handed - Choose from Dropdown above

    Door Thickness: For doors 1-3/4" minimum thickness, with 1/8" bevel in 2"

    Additional Options: To be used in conjunction with 7215 Pivot Set, 7226 Pivot Set, 7227 Pivot Set.

    Compliance Details:

    • Meets ANSI/BHMA 156.4 C07321
    • UL listed for 20 min fire doors

    Priced Per Item

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    Click here to view our Ives 3/4" Offset Pivot for up to 200 lbs Pivot Sets.

      • SKU
        VS7215-INT-605
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7215-7226-7227
    • Handing
      Right Handed, Left Handed
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Matt Black, Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)
