Ives 7215 3/4" Offset Pivot Set with a Top Header Mount and Bottom Jamb Mount, 500 LB Doors

Ives 7215 3/4" Offset Pivot Set with a Top Header Mount and Bottom Jamb Mount, 500 LB Doors
Ives

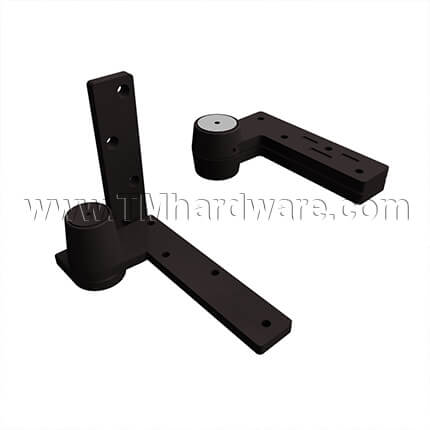

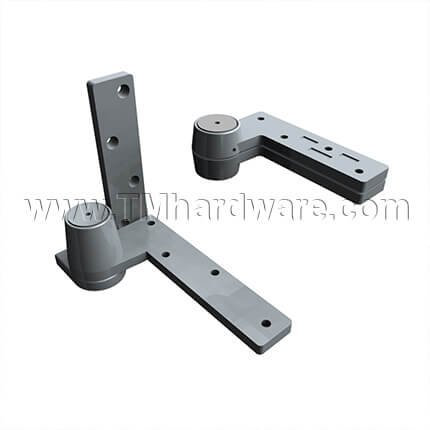

Ives Pivot sets reduces the stress on the frame by distributing the door weight throughout the door and structure. This Ives 7215 pivot set includes a top header mount and bottom jamb mount pivot. This pivot is made for heavy duty doors up to 500 lbs. It has a 3/4" offset and is handed.

PRICED PER SET

See tabs below for additional information
    • SKU
      VS7215-SET-689
    • Market price:$592.73
      • save 30%
    • Starting price: Price: $414.91 per set

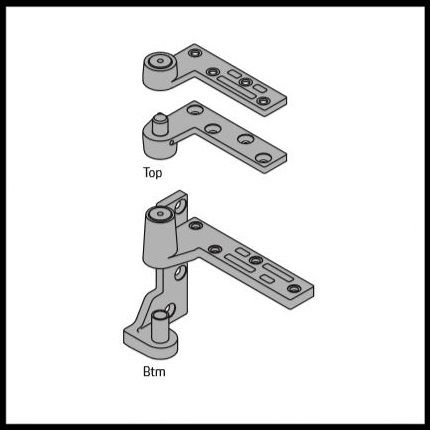

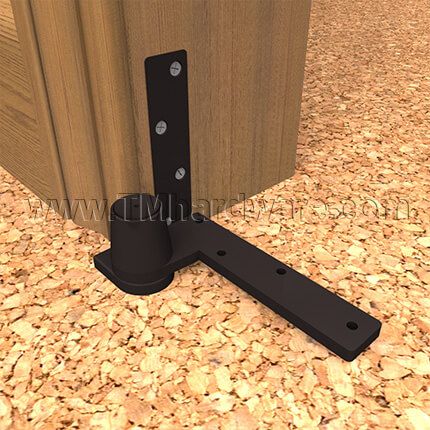

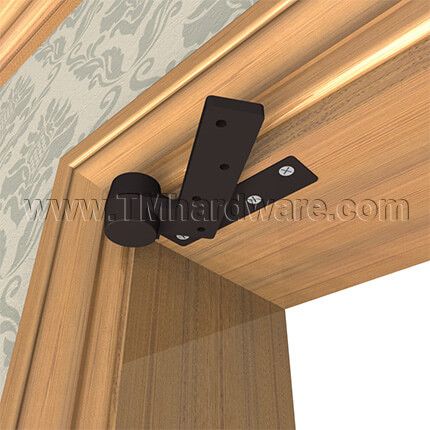

    This Ives 7215 pivot set consists of a top header mount  and bottom jamb mount pivot. It has a vertical adjustment range of 3/16" with positive locking that allows the installer to precisely position the door and balance the load.

    Material: Cast Brass

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Right / Left Handed - Choose from Dropdown above

    Door Thickness: Minimum 1-3/4" with 1/8" bevel in 2"

    Feature: Vertical adjustment range of 3/16", with positive locking

    Additional Options:

    •  Intermediate Pivot -To use with 7215 Heavy Duty Intermediate Pivot - Use one pivot for each 100 lbs. over the pivot set capacity weight. Can be purchased through the our office.
    • For electrical applications use the 7215 Power transfer intermediate pivot - Can be purchased through our office.
    • WP Options: Optional weatherproof resistant bottom pivot for improved corrostion resistance - Availble through our office only. Call for a quote.

    Compliance Details:

    • Meets ANSI / BHMA A156.4 / C07131
    • UL Listed for 20 min fire doors

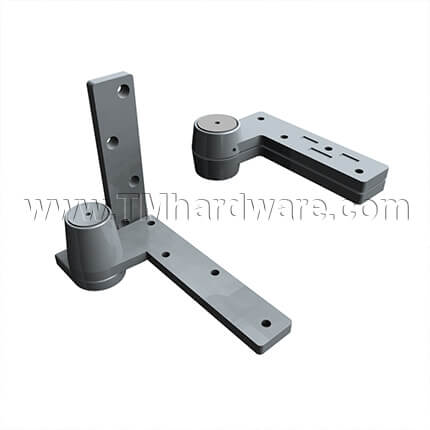

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 7222 3/4" Offset Pivot Set with Top Header Mount and Bottom Base Pivot Set.

      • SKU
        VS7215-SET-689
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7215
    • Handing
      Right Handed, Left Handed
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Matt Black, Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)

    Click to Print - Ives 7215 Template

    Click to Print - Ives 7215 Installation Guide
