Pemko #273x4FG Utility Threshold, 7.125” Aluminum or Bronze with Thermal Break, .25" H

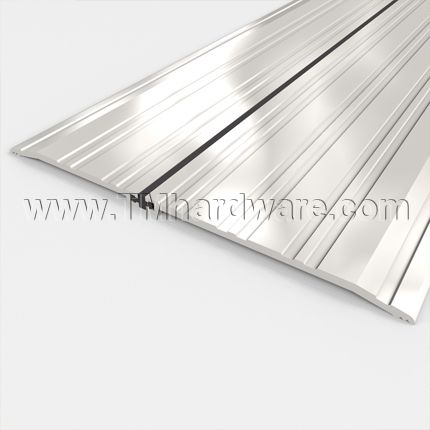

This ADA compliant Saddle Threshold is made of high quality materials, with a thermal barrier running through the center, providing long lasting, superior performance and improved energy efficiency. It is 7 1/8" wide, and has a height clearance of .25". Available in various different finishes. Length is custom cut to size.
PRICED PER FOOT
The threshold is fitted with a black rigid vinyl break which reduces heat loss and prevents frost build up on the interior surface of the saddle.
Finishes: Various different finishes available; choose from the dropdown options below (Oil Rubbed Bronze can also be purchased our office for an additional 40% of standard bronze mill finish price)
A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.
Installation: Installation instructions and screws provided. Screws are colored to coordinate with door hardware. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold requires two rows of fasteners for installation. Drilling holes will be applied to the center line of each saddle piece for easy installation.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a 7" standard threshold with higher clearance, see our Utility Threshold, 7" Aluminum, Anodized or Bronze, .5" Height
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN273x4FG

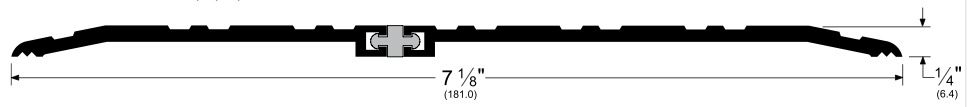

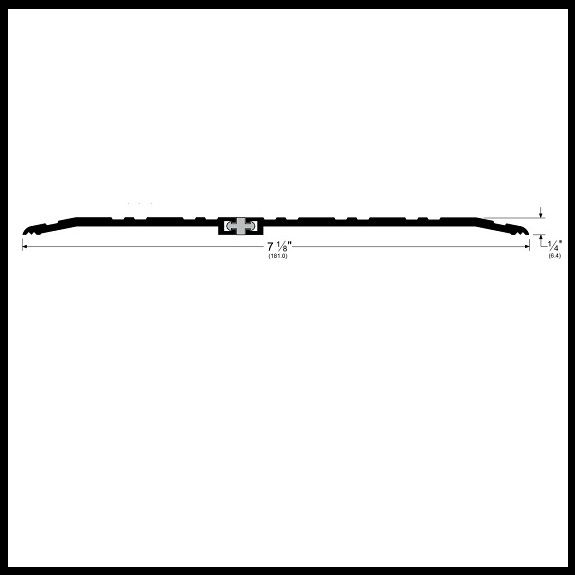

- Dimensions
-
Overall Height.25" Height
-
Overall Width7.125" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeThermal Break Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsADA Compliant, Fire Rated, BHMA Certified
-
Warranty5 Year Limited Warranty
-
