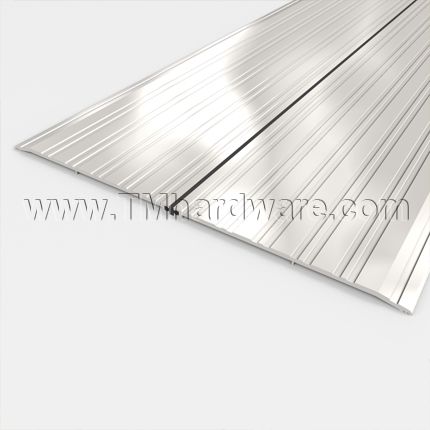

Pemko #2746x6FG Utility Threshold, 12.125" Aluminum with Thermal Break, .25" H
This ADA compliant Saddle Threshold is made of high quality materials, with a thermal barrier running through the center, providing long lasting, superior performance and improved energy efficiency. It is 12 1/8” wide, and has a height clearance of .25”. Available in various different finishes. Length is custom cut to size.
PRICED PER FOOT
The threshold is fitted with a black rigid vinyl break which reduces heat loss and prevents frost build up on the interior surface of the saddle.

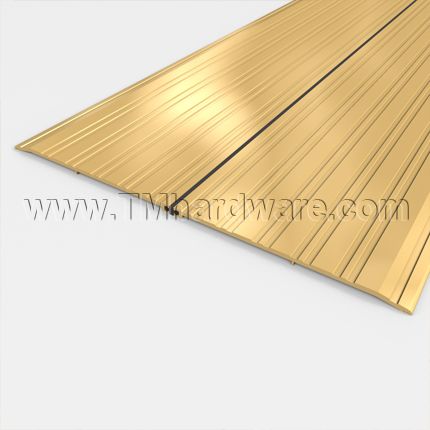

Finishes: Available in various different finishes; choose from the dropdown options above.
Installation: Installation instructions and screws provided. Screws are colored to blend unobtrusively with door hardware. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Threshold requires two rows of fasteners for installation. Drilling holes will be applied to the centerline of each saddle piece for easy installation.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a standard 12” threshold with .25" clearance, see our Utility Threshold, 12" Aluminum or Anodized with .25" Height.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN2746x6FG

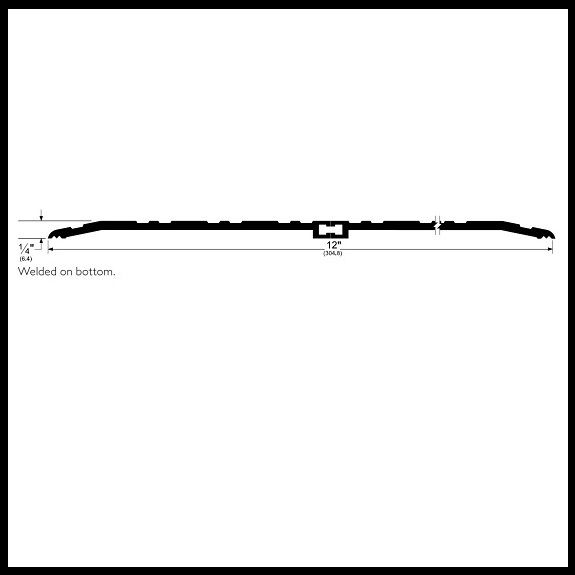

- Dimensions
-
Overall Height.25" Height
-
Overall Width12.125" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeThermal Break Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilled along the center line
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsADA Compliant, Fire Rated, BHMA Certified
-
Warranty5 Year Limited Warranty
-
