Pemko #2266 and #2286 Cover Plate, 5" - 9.5" Fluted Aluminum or PemKote with Beveled Edge, .25" H

Pemko 2266 Aluminum Mill Finish
Pemko Manufacturing

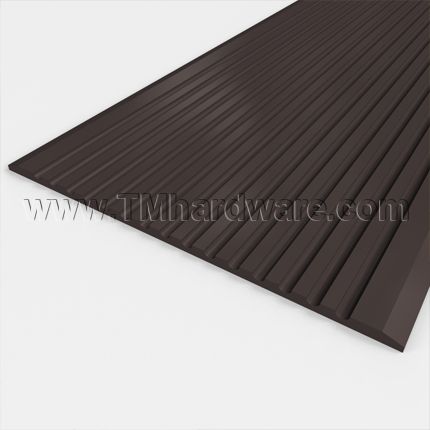

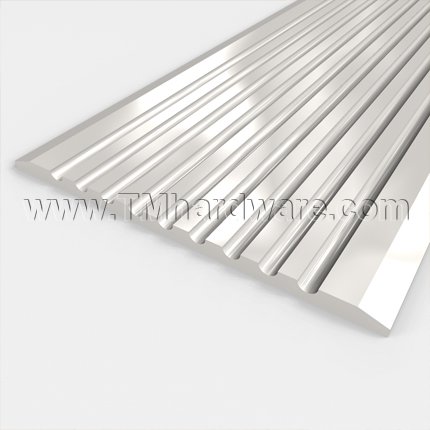

This beveled edge, surface mounted cover plate is made of high quality fluted aluminum that permits slight shifting in adjacent floor surfaces due to seasonal temperature changes, thereby preventing floor warping. The aluminum plate is available in different finishes. Sizes accommodate gaps varying in width. Length is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK2266A
    • Market price:$92.22
      • save 10%
    • Starting price: Price: $83.00 per foot


    Expansion joints are gaps left between two flooring areas to prevent the warping of floor materials resulting from the expansion and shrinkage of certain types of flooring due to seasonal temperature changes. When plates are placed between the floor surfaces, they supply the flexibility needed to allow for possible floor changes.

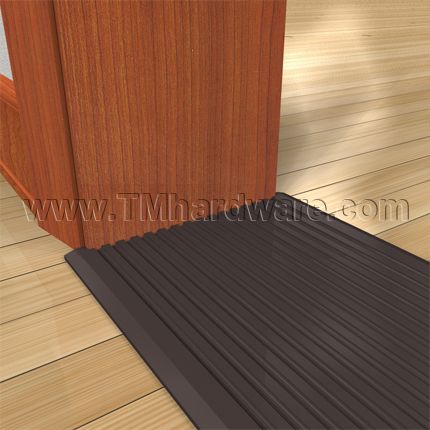

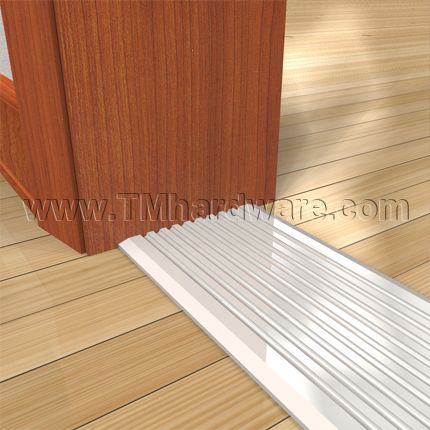

    This beveled edge cover plate is applied above the gap and fastened to one side of the floor. This will allow the two floors to move independently of each other. Plates are grooved for greater traction to prevent slipping. Available in aluminum variations and non-slip PemKote™ finish.

    Dimensions: Standard widths are available and length is custom cut to size. Plates have a height of .25”.

    Installation Notes: Elevated plates require support every 4” on center, at welded seams or as needed for support. For support beam, see our .5" Height Aluminum or Bronze Cover Plate Support.

    Drilling: Drilling is recommended for PemKote™ finish, as it is really difficult to drill through this coating. Plates are drilled in standard locations if specified above in options. For custom drilling holes and locations a template will need to be supplied. Please contact us or call us at 845-388-1300 for details.

    • ADA Compliant
    • Fire Rated
    • Width available in standard sizes, Length is custom cut
    • .25" Height
    • Surface mounted above expansion joints
    • Prevents floor warping

    Installation screws provided. Screws are colored to blend unobtrusively with the casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     PemKote™ Finish has a 10 year guarantee.
    Click here to view our Full Warranty Policy.

    Click here to view our Straight Edge Fluted Cover Plates.

      • SKU
        PK2266A
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      2266, 2286
    • Drilling
      Standard Drilling, None
    • Dimensions
      • Overall Width
        5.91" Width, 9.50" Width
      • Threshold Length
        Custom Cut to Size
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Cover Plate
      • Material
        Aluminum
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, ADA Compliant, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print

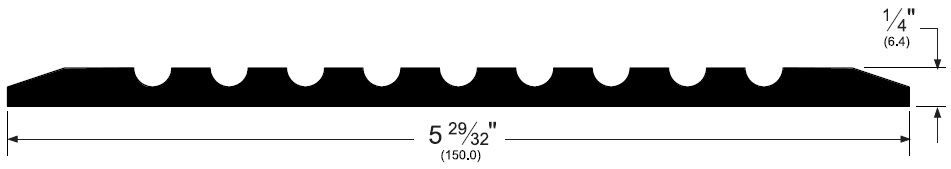

    #2266 Product Specs:

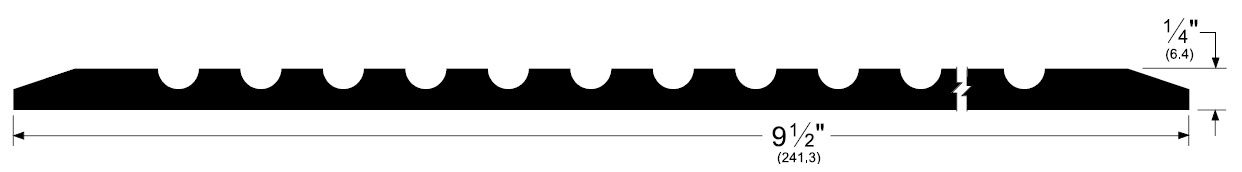

    #2286 Product Specs:
