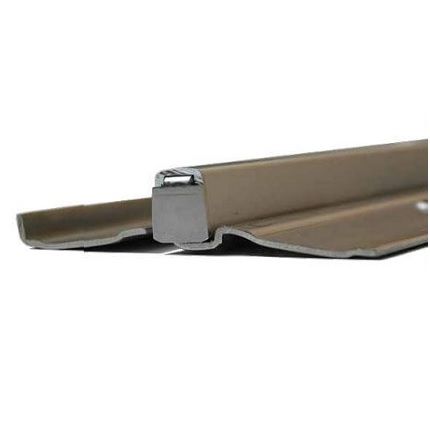

Ives 715CS, a new Ives CS Series, is a Pin and Barrel, Full Mortise, Half Wrap Stainless Steel Continuous Hinge with a decorative cover. The patented cover on the hinge hides the pin and barrel, which creates a clean and neat appearance. It has a built in half wrap edge guard and is constructed for doors that are maximum 48" wide and up to 600 pounds. Available in various finishes and sizes; choose from the dropdowns below.

See full product details in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS715CS-441-83
    • Market price:$1,325.31
      • save 30%
    • Starting price: Price: $927.72 per item


    The Ives CS Series is a new patented solution that brings the clean aesthetic design of aluminum geared continuous hinges to the ruggedness and safety afforded by stainless steel, pin and barrel continuous hinges. The series feature heavy duty, easy-to-install, hinges that can be used for fire applications and is highly suitable for aftermarket or new construction situations.

    Material: 14 Gauge Type - 304 Stainless Steel

    Finishes: Choose from the options above.

    Available lengths: Choose from the options above.

    Handing: Non Handed, handing required for custom cut lengths.

    Design:

    • Patented, medical-grade, nylon winged bearings.
    • Patented cover protects hinge knuckle and creates a clean and neat appearance.
    • XY adjustability feature allows for better door alignment during installation.
    • Built in half wrap edge guard.
    • Flush mounted, no door inset.

    Hardware Included: 12-24 X 3/4" Self drilling, self tapping screws.

    Door Type:

    • For square edge doors.
    • Maximum 1 3/4" door thickness.
    • For doors with a maximum width of 48".
    • For doors weighing up to 300 pounds without reinforcing.
    • For doors weighing up to 600 pounds with reinforcing.

    Electrical Options: Additional optional mounting hardware may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    Compliance Details:

    • Meets ANSI 156.26 for 150lbs. and 300lbs.
    • UL10C certified.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Ives 715 Pin and Barrel, Half Wrap, Stainless Steel Continuous Hinge.

      • SKU
        VS715CS-441-83
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      715CS
    • Finishes
      • Finish
        Satin Stainless Anodized (US32DAN), Prime Coat (USP), Clear Anodized Aluminum (US28), Satin Brass Anodized (US4AN), Satin Bronze Anodized (US10AN), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315), Bright Chrome Anodized (US26AN), Satin Chrome Anodized (US26DAN)

    Click to Print

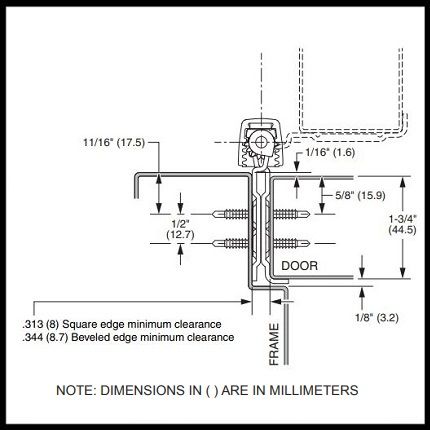

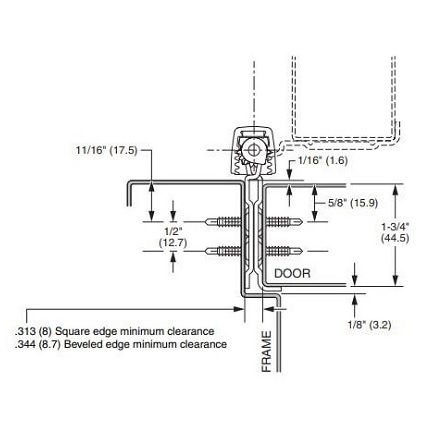

    Ives 715CS Product Specs

    Note: Dimensions in () are in millimeters.
