Ives 8103EZHD Straight Door Pull, ADA Compliant, 1" Round, Up to 12" CTC

Ives 8103EZHD Straight Door Pull, ADA Compliant, 1" Round, Up to 12" CTC
Ives

Ives 8103EZHD 1" Round, Straight Door Pull with heavy-duty mounting hardware. Features large 2-1/2" clearance to comply with ADA accessibility applications. This pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes available, see available options.

PRICED PER PIECE / SET

*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.

See tabs below for additional information
    • SKU
      VS8103EZHD-8-628
    • Market price:$62.16
      • save 30%
    • Price: $43.51


    Ives 8103EZHD Straight Door Pull, 1" Round, ADA and barrier-free compliant.

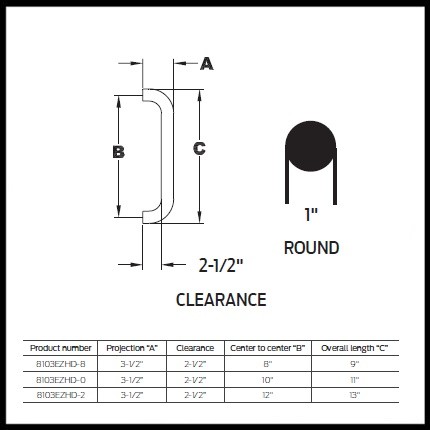

    Product number Projection Clearance Center to center Overall length
    8103EZHD-83-1/2"2-1/2"8"9"
    8103EZHD-03-1/2"2-1/2"10"11"
    8103EZHD-23-1/2"2-1/2"12"13"


    Mounting Types:

    • Single Pull - provided with thru-bolt mount
    • Push / Pull Set - provided with back to back mounting

    Door Thickness: For doors 1-1/2" - 1-3/4" thick. For additional thickness, please contact our office.

    Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.

    Priced per piece / set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    For additional options, see our Ives VS8105 Straight Door Pull, 1" Flattened.

      • SKU
        VS8103EZHD-8-628
    • QuickShip
      No
    • Manufacturer
      Ives
    • About this Product
      • Mount Design
        Standard / Straight Mount
      • Style
        Traditional
      • Base Material
        Stainless Steel, Brass, Aluminum
    • Dimensions
      • Diameter
        1" Diameter
      • Length
        Up to 9" Length, Up to 11" Length, Up to 13" Length
      • CTC
        8" CTC, 10" CTC, 12" CTC
      • Projection
        3-1/2" Projection
      • Clearance
        2-1/2" Clearance
    • Installation
      • Screw Pack
        Single Pull, Thru-Bolt (Standard), Single Pull, Concealed, Aluminum Doors (#A), Single Pull, Countersunk Thru-Bolt (#F), Single Pull, Concealed, Metal Door (#L), Single Pull, Concealed, Wood Door (#I), Push/Pull, Back to Back, Wood or Metal Door (#N)*, Single Pull, Décor Blind Thru-Bolt, Wood or Metal Door (#O), Push/Pull, Back to Back, ½” Glass Door (#P)*, Single Pull, Décor Blind Thru-Bolt, ½” Glass Door (#Q), Single Pull, Security Thru-Bolt with Std. Washer (#X)
      • Mounting Hardware
        3/8-16 Phillips Head Drive Screws
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Stainless Steel; Bright (US32), Stainless Steel; Satin (US32D)
    • Compliance Details
      • Compliance Details
        ADA Compliant, Barrier Free Applications
      • ANSI Designation
        A156.06
      • Warranty
        1 Year Limited Warranty
