Ives 8103HD Straight Door Pull, 1" Round, Up to 12" CTC

Ives 8103HD Straight Door Pull, 1" Round, Up to 12" CTC
Ives

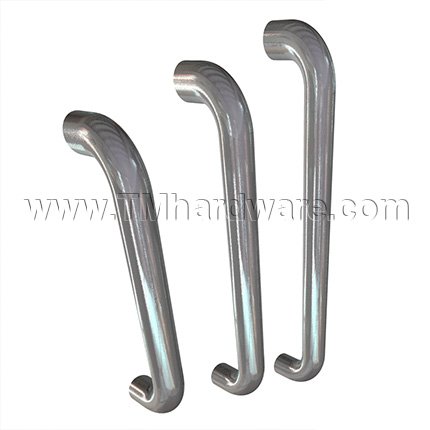

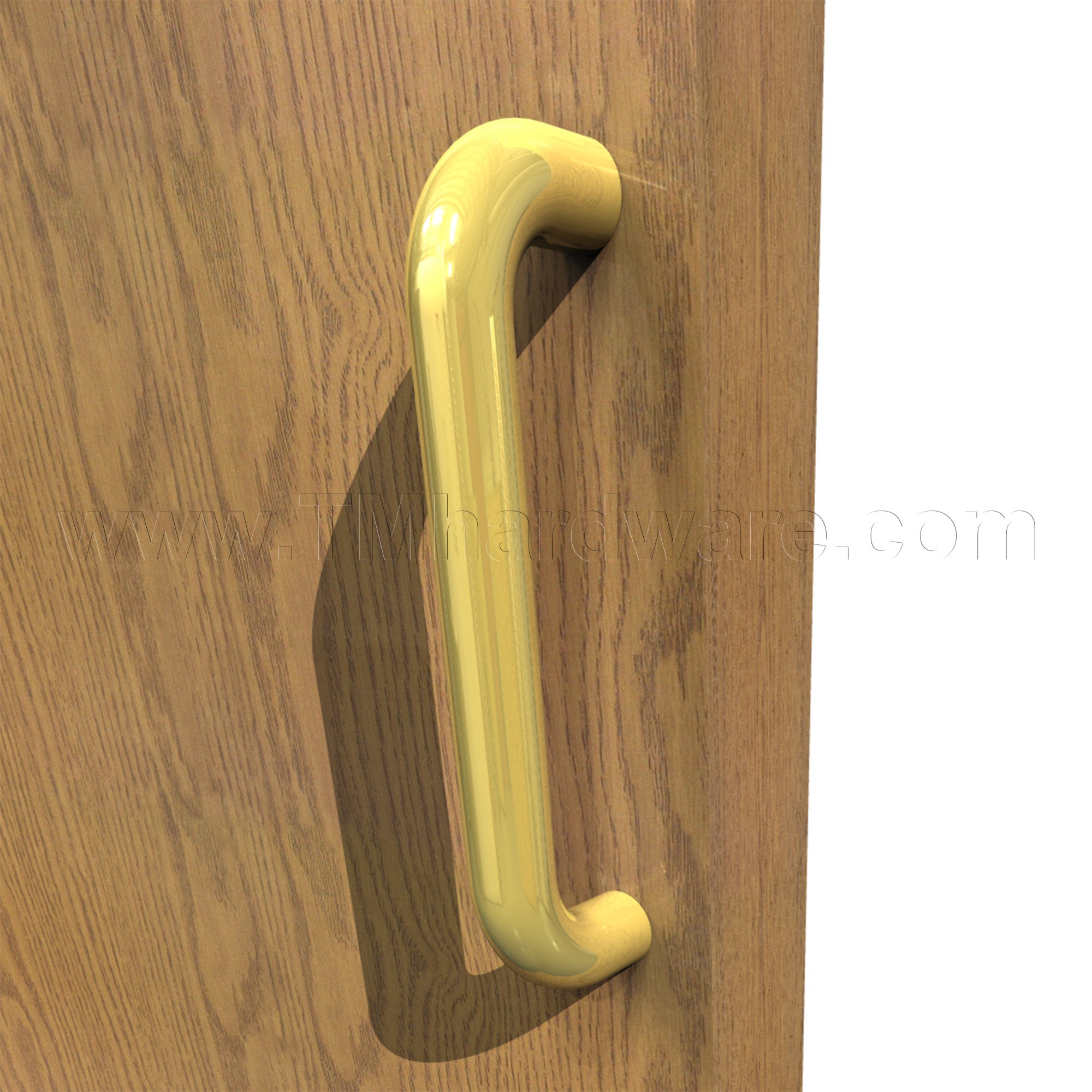

Ives 8103HD 1" Round, Straight Door Pull with heavy-duty mounting hardware. This pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes available, see available options.

PRICED PER PIECE / SET

*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.

See tabs below for additional information
    • SKU
      VS8103HD-8-628
    • Market price:$46.31
      • save 30%
    • Price: $32.41


    Ives 8103HD Straight Door Pull, 1" Round.

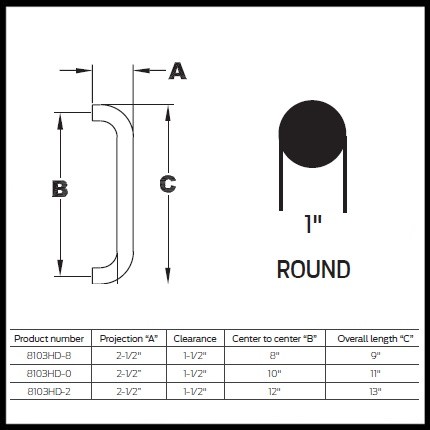

    Product number Projection ClearanceCenter to center Overall length
    8103HD-82-1/2" 1-1/2"8"9"
    8103HD-02-1/2"1-1/2"10"11"
    8103HD-22-1/2"1-1/2"12"13"


    Mounting Types:

    • Single Pull - provided with thru-bolt mount
    • Push / Pull Set - provided with back to back mounting

    Door Thickness: For doors 1-1/2" - 1-3/4" thick. For additional thickness, please contact our office.

    Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.

    Priced per piece / set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    For an ADA compliant option, see our Ives VS8103EZHD Straight Door Pull, 1" Round.

      • SKU
        VS8103HD-8-628
    • QuickShip
      No
    • Manufacturer
      Ives
    • About this Product
      • Mount Design
        Standard / Straight Mount
      • Style
        Traditional
      • Base Material
        Stainless Steel, Brass, Aluminum
    • Dimensions
      • Diameter
        1" Diameter
      • Length
        Up to 9" Length, Up to 11" Length, Up to 13" Length
      • CTC
        8" CTC, 10" CTC, 12" CTC
      • Projection
        2-1/2" Projection
      • Clearance
        1-1/2" Clearance
    • Installation
      • Screw Pack
        Single Pull, Thru-Bolt (Standard), Single Pull, Countersunk Thru-Bolt (#F), Single Pull, Concealed, Metal Door (#L), Single Pull, Concealed, Aluminum Doors (#A), Single Pull, Concealed, Wood Door (#I), Push/Pull, Back to Back, Wood or Metal Door (#N)*, Single Pull, Décor Blind Thru-Bolt, Wood or Metal Door (#O), Push/Pull, Back to Back, ½” Glass Door (#P)*, Single Pull, Décor Blind Thru-Bolt, ½” Glass Door (#Q), Single Pull, Security Thru-Bolt with Std. Washer (#X)
      • Door Thickness
        1-1/2" - 1-3/4" Thick Doors
      • Mounting Hardware
        3/8-16 Phillips Head Drive Screws
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Satin Stainless Steel (US32D), Satin Brass (US4), Satin Chrome (US26D), Polished Brass (US3), Polished Chrome (US26), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Stainless Steel; Bright (US32)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty




    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Zero is experiencing Significant Delays. If you are in a rush please call us for alternative options.



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
