Ives 7212 3/4" Offset Pivot Hinge with Top Header Mount for Doors up to 200 Lbs.

Ives 7212 3/4" Offset Pivot Hinge with Top Header Mount for Doors up to 200 Lbs.
Ives

Ives 7212 Pivot Hinge Set reduces stress on the frame by distributing the door weight throughout the door and structure. This pivot can be purchased as a pivot set, top pivot or bottom pivot. It is made for heavy doors weighing up to 200 lbs. It has a 3/4" offset and is handed. Available in a variety of finishes.

See full product details and specs in tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      VS7212-SET-706
    • Market price:$394.38
      • save 30%
    • Starting price: Price: $276.07 per set

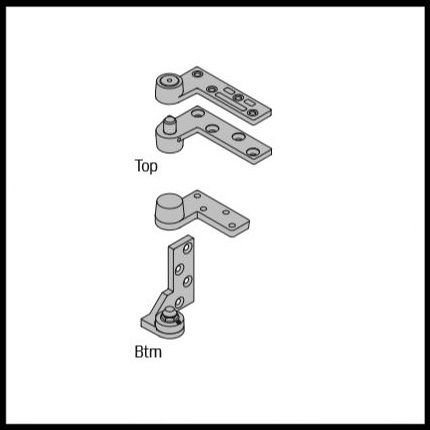

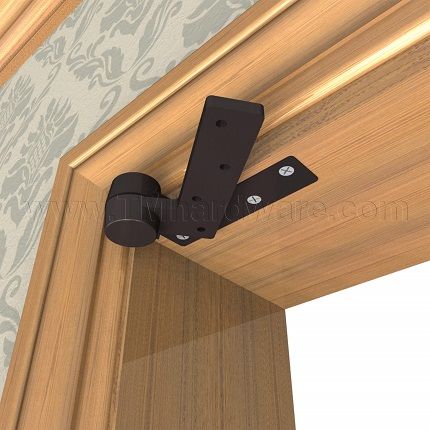

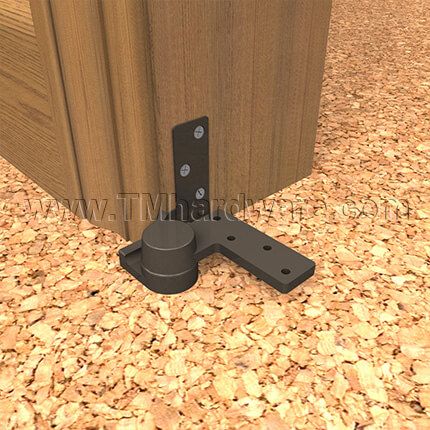

    This Ives Pivot consists of 7212 top header mount pivot and 7212 bottom jamb mount pivot. It has a vertical adjustment range of 3/16" with a positive locking that allows the installer to precisely position the door and balance the load.

    Material: Made from cast brass

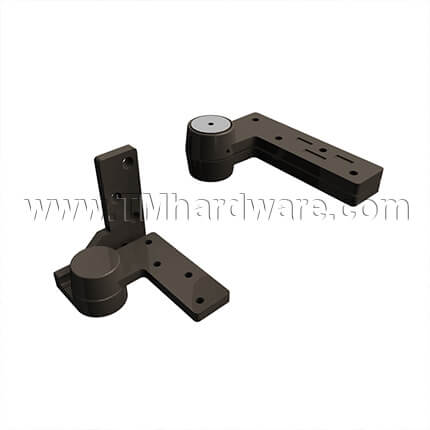

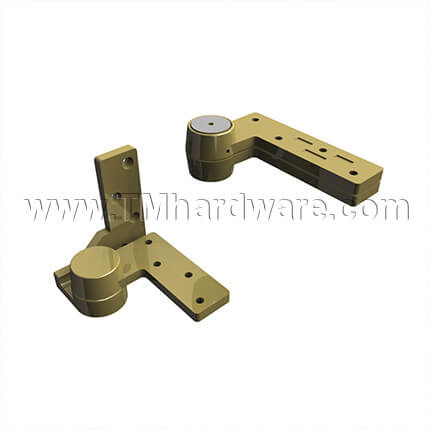

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Right / Left Handed - Choose from Dropdown above

    Door Thickness: Minimum 1-3/4" with 1/8" bevel in 2"

    Feature: Vertical adjustment range 3/16", with positive locking

    Additional Options: 7212 Intermediate Pivot - Use one pivot for each 100 lbs. over the pivot set capacity weight. Can be purchased through our office.

    Compliance Details:

    • Meets ANSI / BHMA A1564 C07131
    • UL Listed, for 20 min fire rated doors

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 7212V 3/4" Offset Pivot Hinge Set with Top Jamb Mount Pivot for Doors.

      • SKU
        VS7212-SET-706
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7212
    • Handing
      Right Handed, Left Handed
    • Pivot Type
      Pivot Set, Top Pivot, Bottom Pivot
    • Finishes
      • Finish

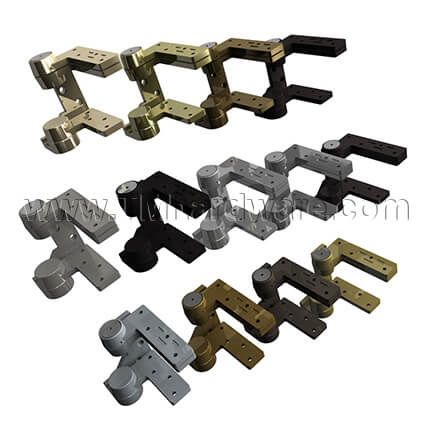

        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Matt Black, Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)

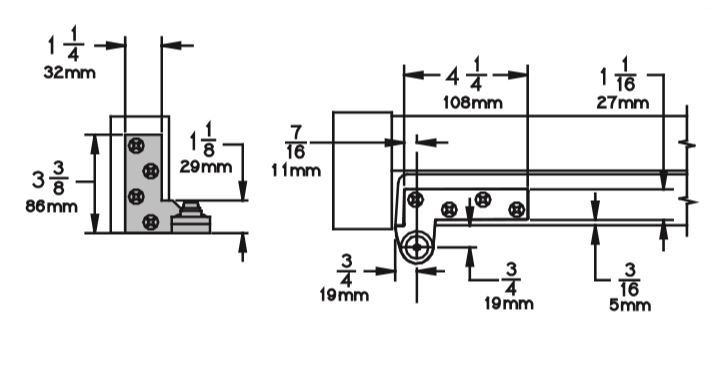

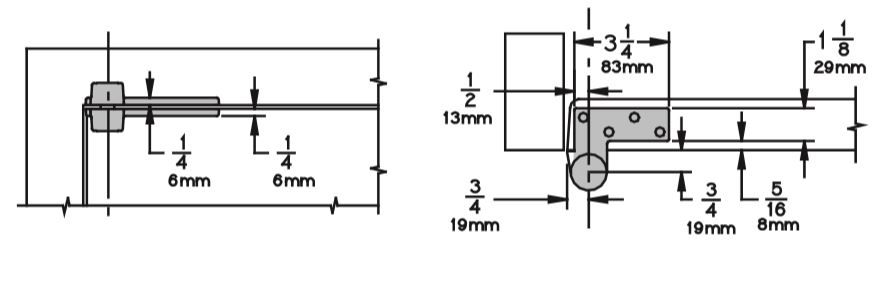

    Click to Print - Ives 7212 Template
