Ives 7212V 3/4" Offset Pivot Set with Top Jamb Mount Pivot for Doors up to 200 lbs.

Ives 7212V 3/4" Offset Pivot Set with Top Jamb Mount Pivot for Doors up to 200 lbs.
Ives

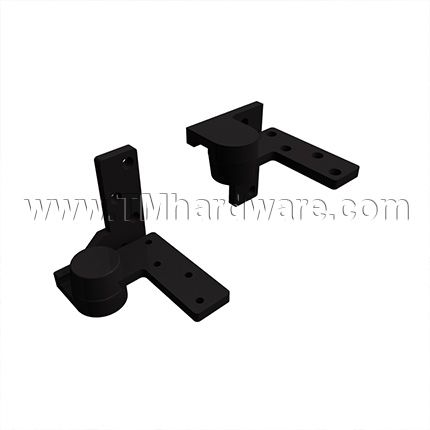

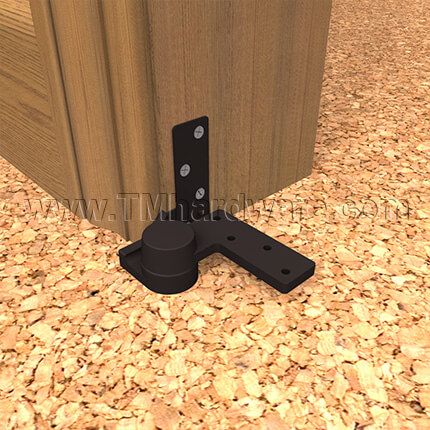

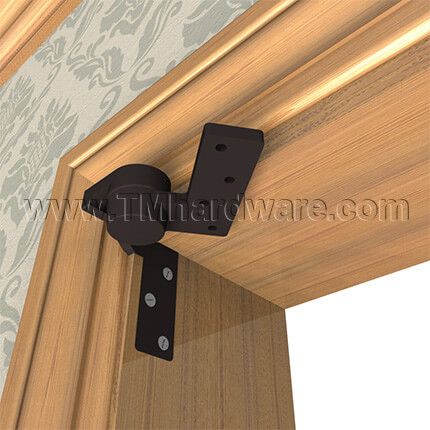

Ives Pivot Sets reduces stress on the frame by distributing the door weight througout the door and structure. This Ives 7212V pivot set includes a top and bottom jamb mount pivot. The pivot is made for heavy duty doors weighing up to 200 lbs. It has a 3/4" offset and is handed. Available in a variety of finishes.

See full product details and specs in tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      VS7212V-SET-622
    • Market price:$537.71
      • save 30%
    • Starting price: Price: $376.39 per set

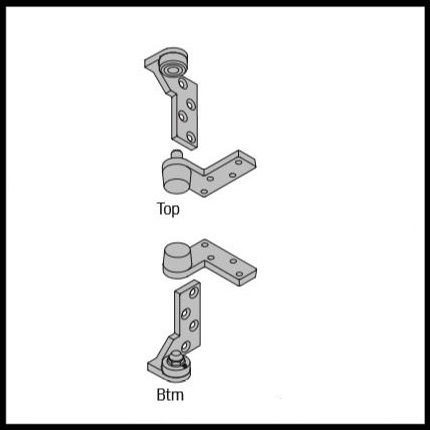

    This Ives 7212V pivot set consists of a top and bottom jamb mount pivots. It has a vertical adjustment range of 3/16" with a positive locking that allows the installer to precisely position the door and balance the load.

    Material: Cast Brass

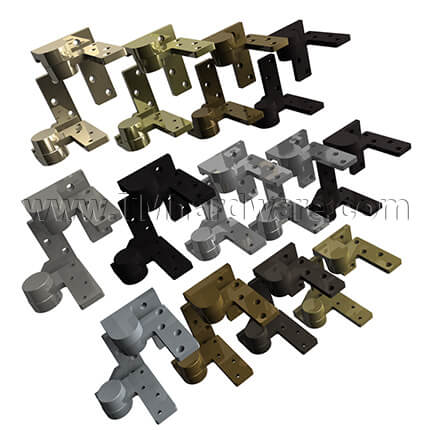

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Right / Left Handed - Choose from Dropdown above

    Door Thickness: Minimum 1-3/4" with 1/8" bevel in 2"

    Feature: Vertical adjustment range 3/16", with a postive locking

    Additional Options: To use with 7212V Intermediate Pivot - Use one pivot for each 100 lbs. over the pivot set capacity weight. Can be purchased through the our office.

    Compliance Details:

    • ANSI / BHMA A156.4 C07131
    • UL Listed for 20 min label doors

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 7212 3/4" Offset Pivot Set with Top Header Mount Pivot for Doors up to 200 lbs.

      • SKU
        VS7212V-SET-622
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7212V
    • Handing
      Right Handed, Left Handed
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Matt Black, Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)

    Click to Print - Ives 7212V Template
