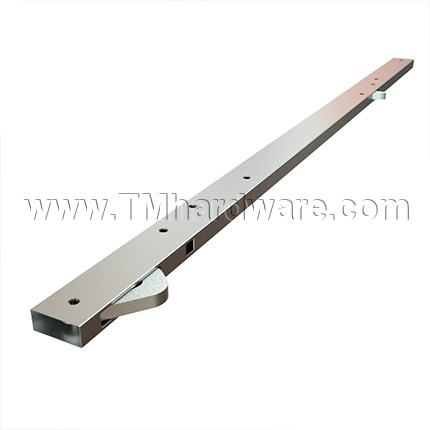

Ives COR32 Bar Coordinator - 32" Length - For 34" - 52" Opening

Ives COR32 Bar Coordinator - 32" Length - For 34" - 52" Opening, Satin Aluminum Finished
Ives

COR32 Bar Coordinator is designed for use on pairs of doors when one door needs to close before the other. COR32 unit functions easily. The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.

 PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSCOR32 Satin Aluminum
    • Market price:$258.30
      • save 30%
    • Starting price: Price: $180.81 per item


    The COR32 Bar Coordinator is designed for use on pairs of doors when one door needs to close before the other.

    Design:

    • Equipped with an adjustable override feature which allows the active door to close under extreme pressure.
    • Unit does not function correctly with swing clear hinges.
    • Unit is compatible with flush bolts.
    • For openings where doors are unequal size. The coordinator length should equal the active door width plus approximately 1/2 the inactive door width. The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops.
    • Unit does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines.

    Material:

    • Aluminum 6000 Series

    Available Options:

    • Optional filler bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain clean line.
    • Security pin screws
    • Special prep cut-outs: Required for certain vertical exit device applications.

    Available Accessory Items:

    • Optional mounting brackets available.
    • Replacement mounting package
    • Replacement rub plate package

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives COR42 Bar Coordinator 42"

      • SKU
        VSCOR32 Satin Aluminum
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      COR32
    • Finishes
      • Finish
        Satin Aluminum, Black Anodized Aluminum (315), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        UL Listed for installation on labeled frame
      • ANSI Designation
        A156.3 Type 21A
      • Warranty
        1 Year Limited Warranty
