Ives E91105F Power Transfer Pocket Pivot Hinge for Fire Rated Doors, Stainless Steel

Ives E91105F Power Transfer Pocket Pivot Hinge for Fire Rated Doors, Stainless Steel
Ives

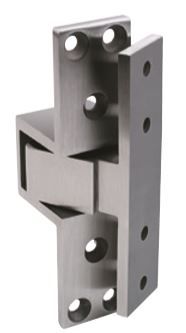

The Ives E-91105F is an electric power transfer pocket pivot for pocket door applications. Pocket Pivots fit flush into the door and allows it to close properly.  The pocket pivot swings open a full 90° and is 90LB load bearing. This pivot is full mortise and non handed.

PRICE PER ITEM

See tabs below for additional information
    • SKU
      VSE91105F-TW4-600
    Call for price!
    845-388-1300

    This Ives E91105F Electric power transfer pocket hinge is for pocket door applications. It is not recommended for wood doors. It allows the doors to swing open a full 90° and load bearing up to 90LB.  This pocket pivot is full mortise and non handed. Available in a variety  of finishes.

    Material: 304 Stainless steel series

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Non Handed

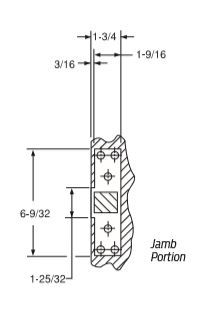

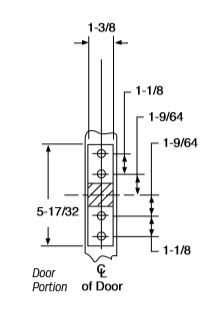

    Dimensions:

    • Recommended use for doors 1-3/4" thickness only
    • Not for doors larger then 4'0" x 8'0"

    Electrical Features:

    • Comes standard with 28 gauge TW4. For additional electrical wiring applications call our office.
    • Rated 50 VDC or VAC at 3.5 amps continuous or 16 amp pulse, maximum pulse 400 milliseconds

    Compliance Details:

    • Meets ANSI/BHMA 156.4 C07611
    • UL listed for 3 hour fire doors

    Priced Per Set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    Click here to view our V91105 Ives Pocket Pivot for Fire Rated Doors.

      • SKU
        VSE91105F-TW4-600
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      E91105F
    • Finishes
      • Finish
        Prime Coat (USP), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Polished Brass (US3), Satin Nickel (US15), Aged Bronze (US11E), Dark Bronze Painted (695)

    Click to Print - Ives E91105F Template
