Ives 911005F Pocket Pivot for Fire Rated Doors

Ives 911005F Pocket Pivot for Fire Rated Doors
Ives

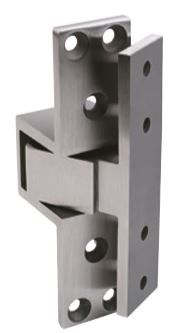

The Ives full mortised pocket pivot hinge is designed to give a flush appearance to the corridor when the door is open and recessed into a pocket in the wall. Pocket Pivots fit flush into the door and allow them to close properly. This Ives 91105F full mortised fire rated pocket pivot is recommended for doors up to 4'0" x 8'0"and has a maximum door load of 90 lbs per pivot.  It's non handed and available in a variety of finishes.

PRICE PER SET



See tabs below for additional information
    • SKU
      VS911005F-600
    • Market price:$726.92
      • save 30%
    • Starting price: Price: $508.84 per set


    This Ives 91105F full mortise fire rated pocket hinge is for pocket door applications. It is not recommended for wood doors.  This pocket pivot allows doors to open a full 90°. It is non handed and available in a variety of finishes.

    Material: 304 Stainless Steel

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Non Handed

    Dimensions:

    • Maximum door load of 90 lbs per pivot
    • For doors with 1-3/4" thickness only

    Pocket Pivot Features:

    • Allows doors to swing open a full 90°
    • Use 3 pivots for doors 7'0" tall and on every 2'6" for taller doors as needed

    Compliance Details:

    • Meets ANSI/BHMA 156.4 C07611
    • UL listed for 3 hour fire doors

    Priced Per Set

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    Click here to view our Ives E-91105F Power Transfer Pocket Pivot for Fire Rated Doors.

      • SKU
        VS911005F-600
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      91105F
    • Finishes
      • Finish
        Prime Coat (USP), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Polished Brass (US3), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Aged Bronze (US11E), Dark Bronze Painted (695)

    Click to Print - Ives 91105F Template
