Ives FB31B Automatic Flush Bolt- Bottom Only

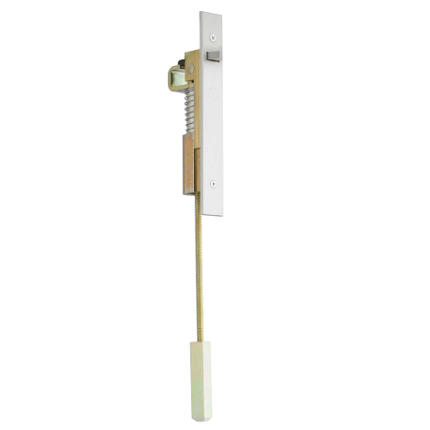

Actual Image of Ives FB31B Automatic Flush Bolt
Ives

Ives FB31B Is a fully Automatic Flush Bolt. When the inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. This Flush Bolt is for use with metal doors, and is available in a large variety of finishes of your choice. Top and Bottom Bolts can be purchased as a pair.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSFB31B US3
    • Market price:$173.88
      • save 30%
    • Starting price: Price: $121.72 per item


    Ives FB31B- Bottom Only Fully Automatic Flush Bolt for use with metal doors.

    Design:

    • Non-handed.
    • Bolt throw is 3/4" with a 7/8" vertical adjustment.
    • Bolt backset is 3/4"
    • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.

    Additional Options Available Through Our office:

    • Security pin screws.
    • DP1 and DP2 dust proof strike.
    • Custom finishes Available.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives FB32 Flush Bolt with Auxiliary Fire Latch

      • SKU
        VSFB31B US3
    • Mounting
      8-32 X 3/8" UFPHMS, 10-12 X1-1/4" Plastic anchor, 6-32 X 3/8 FPHMS, 6 X 3/4 FPHSMS, 8 X 1 FPHSMS, 10 X 1 FPHSMS
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      FB31B
    • Dimensions
      • Body Size
        1" x 6-3/4" x 2"
      • Guide Size
        1" x 1-27/32" x 27/32" x 3/32"
      • Strike Size
        15/16" x 2-1/4" x 1/16"
      • Rub Plate Size
        1-1/4" x 1-11/16" x 3/64"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Flat Black (US19), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed 3 Hour fire doors 8’0" X 10’0"
      • ANSI Designation
        ANSI A156.3 Type 25
      • Warranty
        1 Year Limited Warranty
