Ives FB42 Automatic Flush bolt for Wooden Doors, With Auxiliary Fire Latch, Top Bolt Only

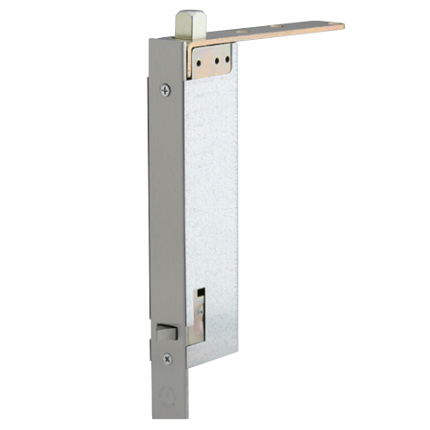

Actual Image of Ives FB42 Automatic Flush Bolt
Ives

Ives FB42 Is a fully Automatic Flush Bolt With an Auxiliary Fire Latch. When the inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Auxiliary Fire Latch eliminates the bottom Bolt. This Flush Bolt is for use with wooden doors, and is available in a large variety of finishes of your choice.

 PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSFB42 US3
    • Market price:$348.08
      • save 30%
    • Starting price: Price: $243.65 per item


    Ives FB42 Is a fully Automatic Flush Bolt With an Auxiliary Fire Latch, which eliminates the bottom Bolt.

    Design:

    • Low actuation forces—top bolt has no spring tension.
    • Non-handed.
    • Bolt throw is 3/4" with a 7/8" vertical adjustment.
    • Bolt backset is 3/4"

    Dimensions:

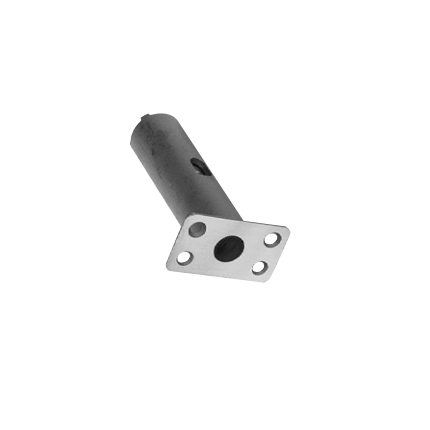

    • Auxiliary Fire Latch Size: 1" x 1-3/4" x 3-1/4"

    Additional Options Available Through Our office:

    • Security pin screws
    • DP1 and DP2 dust proof strike
    • Optional rod lengths available for top bolt only on non-fire rated openings- 18", 24", 36" and 48".
    • Custom finishes Available.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives FB33 Flush Bolt with Auxiliary Fire Latch, and retrofit plate

      • SKU
        VSFB42 US3
    • Mounting
      8-32 X 3/8" UFPHMS, 10-12 X1-1/4" Plastic anchor, 6-32 X 3/8 FPHMS, 6 X 3/4 FPHSMS, 8 X 1 FPHSMS, 10 X 1 FPHSMS
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      FB42
    • Dimensions
      • Body Size
        1" x 8-1/2" x 2"
      • Guide Size
        1" x 6" x 1/8"
      • Strike Size
        15/16" x 2-1/4" x 1/16"
      • Rub Plate Size
        1-1/4" x 1-11/16" x 3/64"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Flat Black (US19), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed 20 Min fire doors 8’0" X 8’0"
      • ANSI Designation
        A156.3 Type 25
      • Warranty
        1 Year Limited Warranty
