Ives FB51P Constant Latching Flush Bolt, Top and Bottom Bolt

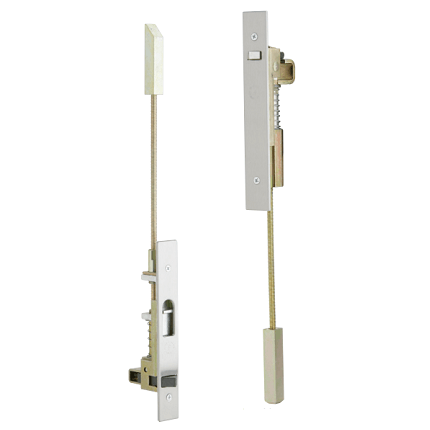

Actual Image of Ives FB51P Constant Latching Flush Bolt
Ives

Ives FB51P Is a Constant Latching Flush Bolt. Inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will re-latch automatically when closed. This Flush Bolt is for use with metal doors, and is available in a large variety of finishes of your choice. Top Bolts can be purchased individually.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSFB51P US3
    • Market price:$329.49
      • save 30%
    • Starting price: Price: $230.64 per item


    Ives FB51P is a Constant Latching Flush Bolt for use with metal doors.

    Design:

    • Low actuation forces.
    • Non-handed.
    • Bolt throw is 3/4" with a 7/8" vertical adjustment.
    • Bolt backset is 3/4"
    • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip."

    Additional Options Through Our office:

    • Security pin screws
    • DP1 and DP2 dust proof strike
    • Custom finishes

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives FB51T Constant Latching Flush Bolt, Top Only

      • SKU
        VSFB51P US3
    • Mounting
      8-32 X 3/8" UFPHMS, 10-12 X1-1/4" Plastic anchor, 6-32 X 3/8 FPHMS, 6 X 3/4 FPHSMS, 8 X 1 FPHSMS, 10 X 1 FPHSMS
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      FB51P
    • Dimensions
      • Body Size
        1" x 6-3/4" x 2"
      • Guide Size
        1" x 1-27/32" x 11/16" x 3/32"
      • Strike Size
        15/16" x 2-1/4" x 1/16"
      • Rub Plate Size
        1-1/4" x 1-11/16" x 3/64"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Flat Black (US19), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed 3 Hour fire doors 8’0" X 8’0"
      • ANSI Designation
        A156.3 Type 27
      • Warranty
        1 Year Limited Warranty
