Ives VR814-NL LHR Vandal Resistant Trim with 1-5/8" Cylinder Cut-out

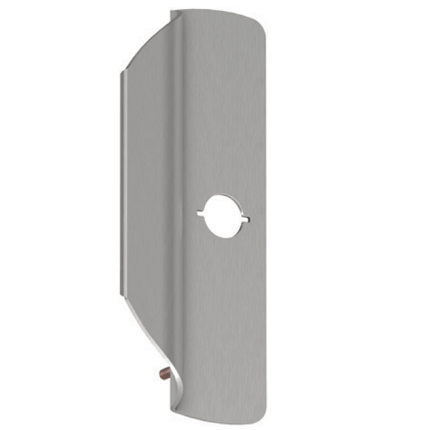

Actual Image of Ives VR814-NL LHR Vandal Resistant Trim
Ives

Ives VR814-NL LHR Vandal Resistant Trim supports the locking hardware on your door, while also eliminating the chance that a vandal breaks in using the crevice of the door. This Trim  has a 1-5/8" cylinder hole cut-out on the door and is 0.120" thick, for use with Falcon XX-V. To purchase without a black grip please view our Ives VR810-NL LHR Vandal Resistant Trim.

PRICED PER PIECE


See tabs below for additional information
    • SKU
      VSVR814-NL LHR
    • Call for price!
    845-388-1300

    Ives VR814-NL LHR Vandal Resistant Trim is 0.120" thick, for use with Falcon XX, 18 or 25 Series exit device.

     Design:

    • Closed pull design eliminates a hooking point to be able to forcibly pull a secured door open.
    • Ligature resistant design.
    • Through bolts direct to the exit device
    • Stainless Steel for corrosion resistance.
    •  Night latch operation
    • 1-5/8" cylinder hole cut-out on door, located 1-13/16 above horizontal center line and centered between mounting studs on vertical center line.
    • Designed for use with 1-1/4" cylinders.
    • Supplied with protective cylinder collar. Collar spins to reduce damage from pipe wrench or other tool.
    • Recommended external application.

    Mounting:

    • For door thickness 1-3/4-2-1/4". 10-24 X 1" and 10-24 X 1-1/2" mounting screw size.
    • Can be mounted directly to Falcon XX, 18 and 25 exit devices.
    • Standard mounting - Welded studs fasten with pan head screws on opposite side of door

    Additional Options Available Through Our Office:

    • Optional through bolt mounting - bolt through face of trim into device for added security.
    • Custom finishes are available.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click To View Our Full Warranty Policy.

    Click To view Our Ives VR810-NL-V Vandal Resistant Trim

      • SKU
        VSVR814-NL LHR
    • Handing
      Left Handed
    • Operation
      Night Latch
    • Use with
      Falcon XX-V
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      VR814-NL LHR
    • Dimensions
      • Product Width
        5-1/4"
      • Product Height
        11"
      • For Door Thickness
        1-3/4-2-1/4"
      • Through Bolt Pattern (4 holes)
        1-3/4" wide x 7-3/4" high
      • Clearance Grip to Door
        1-1/2"
      • Projection
        1-7/8"
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
