Ives WS11 Wall Stop - Drywall / Wood Application
Ives WS11 Wall Stop is for drywall or wood applications. Hexagon section on unit aids in fastening unit when expansion shield is used. Stop is made from Cast Brass, and available in a fine array of finishes of your choice.
PRICED PER PIECE
Ives WS11 Wall Stop is for drywall or wood applications.
Design:
- Replaceable black rubber bumpers features off-set shoulder and threaded shank that screws into body of unit.
- Packed with fasteners for drywall/wood applications.

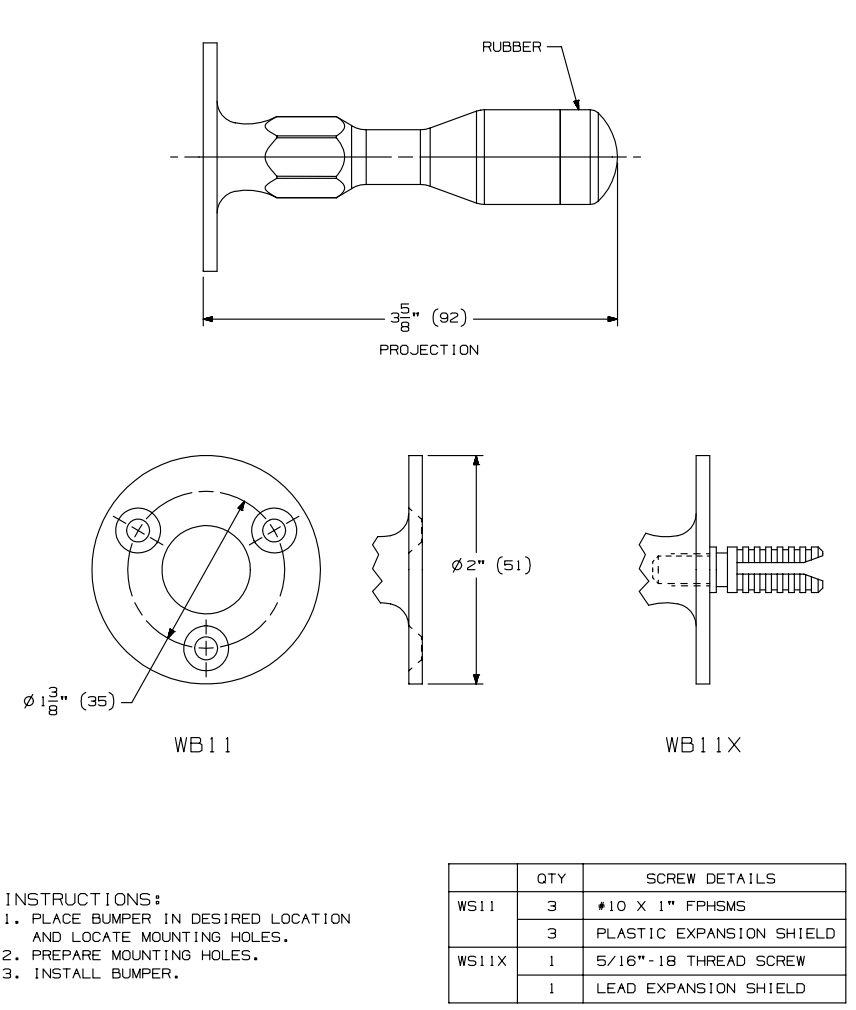

Dimensions:
- Base diameter: 2"
- Overall projection: 3-3/4"
Material Substrate: Cast Brass
Available Accessory Items:
- Security pin screws
- Replaceable black non-marring rubber bumper
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click to View Our Ives WS11X Wall Stop- Masonry Applications
-
QuickShipNo
-
ManufacturerIves
-
MPNWS11
- Dimensions
-
Overall Projection3-3/4"
-
Base Diameter2"
-
- Description
-
MaterialCast Brass
-
FastenersFasteners for drywall/wood applications.
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
ANSI Designation156.16, L12011
-
Warranty1 Year Limited Warranty
-
