Ives WS45X Automatic Wall Holder - Masonry

Ives WS45X Wall Holder- Satin Aluminum
Ives

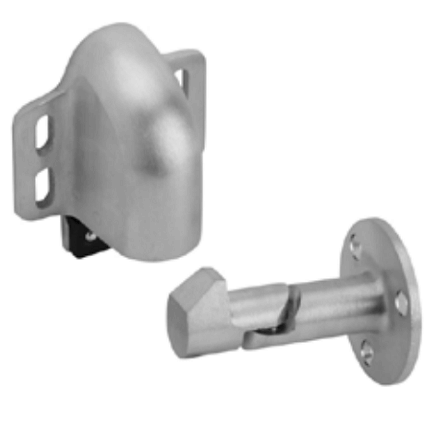

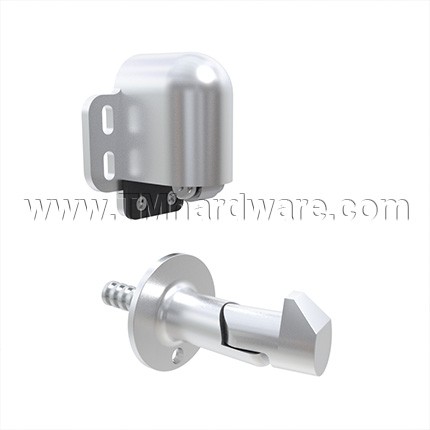

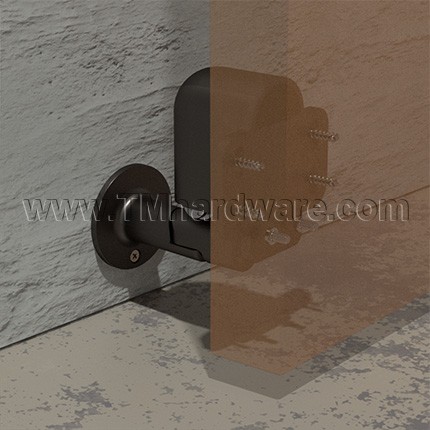

Ives WS45X Automatic Wall Holder for Masonry applications. Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position. Made from Brass or Aluminum and available in a large array of fine finishes of your choice.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      WS45X US28
    • Market price:$214.94
      • save 30%
    • Starting price: Price: $150.45 per item


    Ives WS45X Automatic Wall Holder for Masonry applications. Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.

    Design:

    • A heavy rubber pad cushions the shock and absorbs the sound.
    • With unit mounted on door and the strike on wall, vertical adjustment is available on body.
    • The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.
    • Packed with fasteners for heavy duty masonry applications.

    Material Substrate: Cast Brass or Aluminum

    Available Accessory Items:

    • Security pin screw
    • Hook package

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives FS452 Kick Down Holder






      • SKU
        WS45X US28
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      WS45X

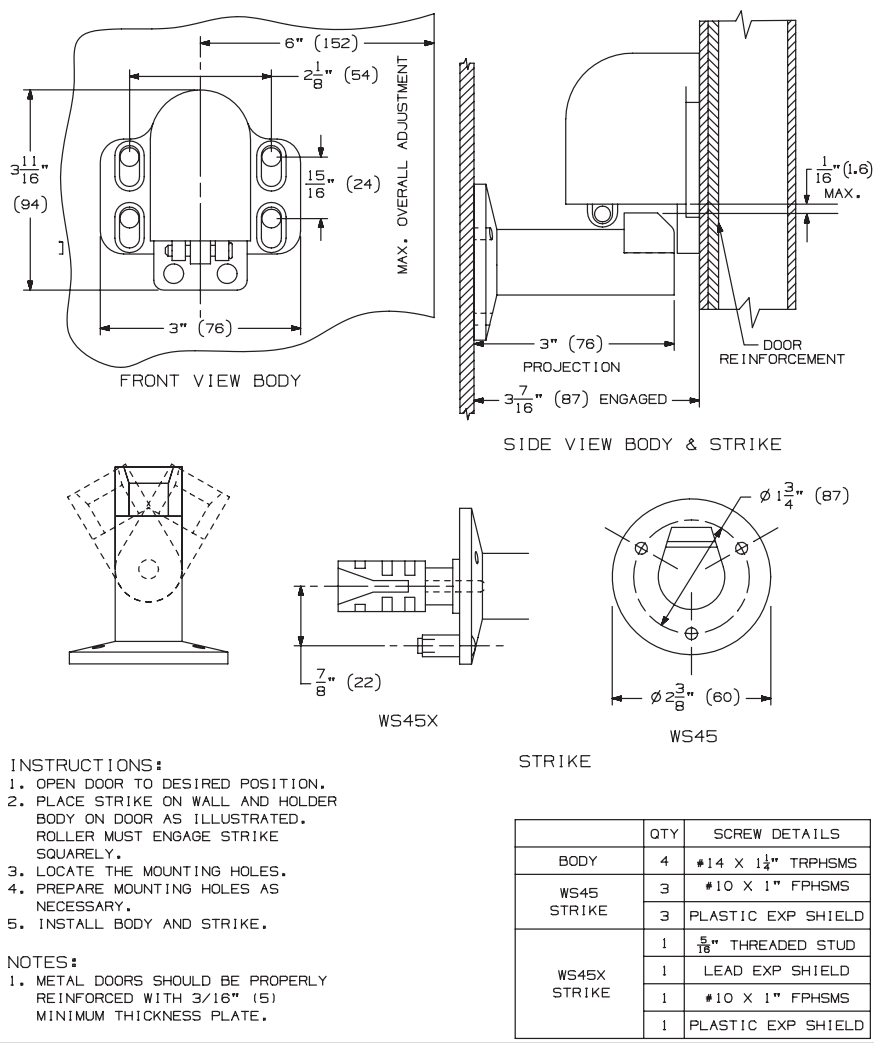

    • Dimensions
      • Base Height
        3-11/16"
      • Additional Dimensions
        Base width: 3"
        Base projection: 2"
        Engaged projection: 3-7/16"
        Strike diameter: 2-3/8"
        Strike projection: 3"
    • Description
      • Material
        Cast Brass, Aluminum
      • Fasteners
        Fasteners for heavy duty masonry applications.
    • Finishes
      • Finish

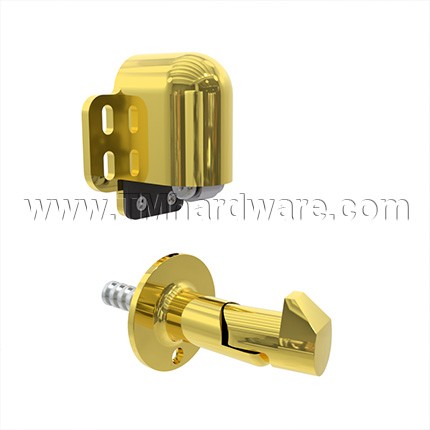

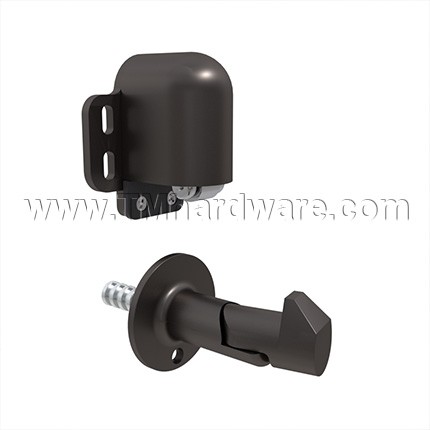

        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Flat Black (US19), Satin Aluminum
    • Compliance Details
      • ANSI Designation
        156.16, L11291, L31291
      • Warranty
        1 Year Limited Warranty
