Legacy #7774 Door Sweep, Aluminum Casing with Cover and .625" Neoprene Lip Seal

Legacy #7774 Gaps between the bottom of doors and the floor surface below are easily closed with a door bottom sweep. This high quality anodized aluminum casing with a snap- on cover is fitted with a neoprene lip seal that will prevent infiltration of air, light, drafts, smoke and dust. Available in various anodized finishes and length is custom cut to size.

PRICED BY THE FOOT.

See tabs below for additional information

Length
Finish

Quantity

Add to compare

This durable aluminum door bottom sweep effectively reduces the infiltration of sound, light, drafts, air, dust and smoke beneath a door. In addition, proper closure of beneath-the-door gaps will make your structure more energy efficient, which can significantly lower your utility bills.

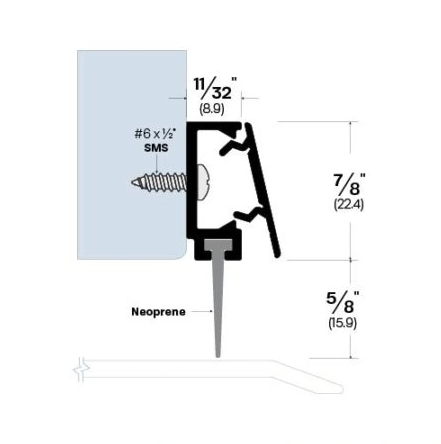

Made of high quality aluminum and neoprene, this smoke rated door bottom is easily surface mounted to the door. The .351” x .881” casing is aesthetically designed with a snap-on cover to conceal the screw (see product specs). The durable .625” neoprene seal extends beneath the door, and remains flexible in extreme weather conditions.

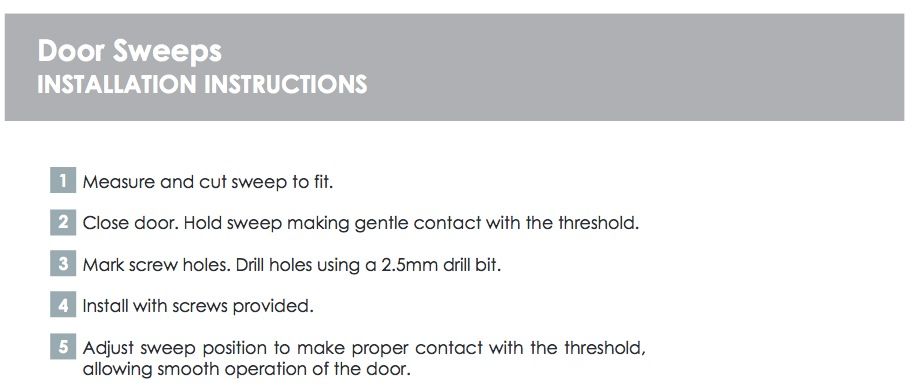

Installation instructions and screws provided. End caps can be provided upon request for an additional fee. Please contact our office at 845-388-1300 for details.

Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Legacy's anodized products are anodized to 204 (dipped four times)!

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Product can also be purchased with a rain drip cap, see our Zero International #8197 Rain Drip Door Bottom with Neoprene Lip Seal.

- SKU
  LG7774WP
QuickShip
No
Manufacturer
Legacy Manufacturing
MPN
477
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Metal Door, Wooden Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  .625" Height
- Total Height
  1.506" Height
- Additional Dimensions
  Door seal is .351" Thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Black Anodized Aluminum (315), White Powder Coat

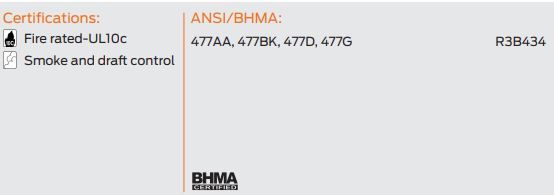

Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated
- ANSI Designation
  R3B434
- Warranty
  1 Year Limited Warranty
