Legacy #7823 Door Sweep, Aluminum or Bronze Casing with .375" Neoprene Ring Seal

This Legacy 7823 door sweep offers protection from fire, smoke and sound. Its solid neoprene ring seal is made of durable material that will last through many usages. Available in various different metals and anodized finishes and is custom cut to size.

SOLD BY THE FOOT

See tabs below for additional information

Length
Finish

Quantity

Add to compare

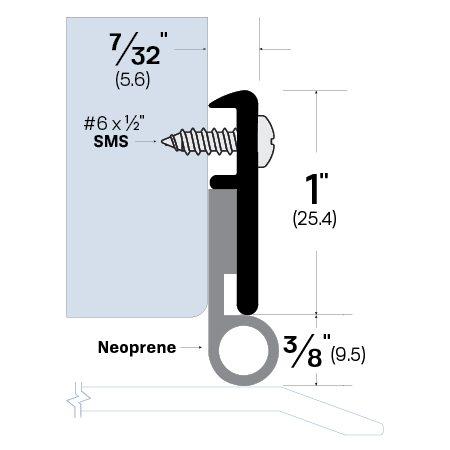

This surface mounted door sweep is fitted with a solid neoprene ring seal that can seal gaps up to .375 inches. It provides effective protection from smoke, fire and natural sound levels. The door bottom is fitted with seal to ensure proper sound protection.

This can be used for many application as well, such as head and jamb protection (see our Neoprene Ring Door Gasket) and a meeting stile (see Neoprene Ring Meeting Stile).

Note, it is recommended that this product be used in conjunction with a door saddle such as our Soundproof Rabbeted Threshold #565.

Installation instructions and screws included. Screws are colored to blend unobtrusively into casing.

To purchase a replacement for this seal see our .25" Neoprene Bulb Replacement Seal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, color may vary slightly and size may be enlarged to show detail. See our product specs for exact measurement.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to return to our Door Bottoms/Sweeps category page.

- SKU
  LG7823 WP
QuickShip
No
Manufacturer
Legacy Manufacturing
MPN
328
About this Product
- Door Shoe Retainer Material
  Aluminum, Bronze
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Total Height
  1-1/4" Height
- Additional Dimensions
  .094" thick casing
  Door bottom has a total thickness of .29"
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  Provided with #6 x 1.00" (25.4) PPHSDS
Additional Options - Purchase Through Our Office
- Anti-Ligature Seal
  Yes
- Compatible Insert Replacement
  #328N .25" Neoprene Bulb Seal
Finishes
- Finish
  Clear Anodized Aluminum (US28), Aluminum Black Anodized, White Powder Coat
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, Sound Rated, BHMA Certified
- ANSI Designation
  R3B434, R1B434
- Warranty
  1 Year Limited Warranty
