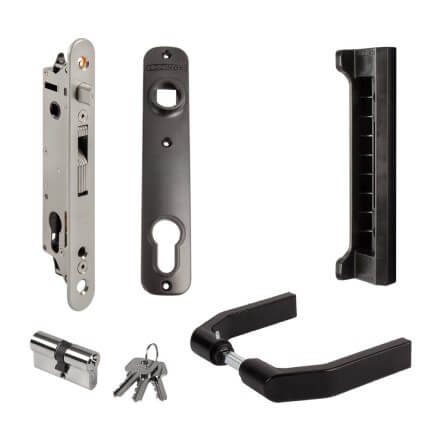

Locinox FORTYSET Complete Insert Lock Set with Keep for Metal, PVC or Aluminium Gates

Set with FORTYLOCK & handle: 3006G & Cylinder: 3012-54-STD-VSZ & Covershield: 3020-HYB-STD with SFKP-QF40 keep
Locinox

Locinox FORTYSET, a mortise lock with a mechanism made entirely of stainless steel. A sturdy and solid closed gate with gate wings that cannot be pulled apart or forced open is ensured by the stainless steel adjustable self-latching bolt and hook in conjunction with the correct keep. This complete kit will give your metal, PVC, or aluminum gates a stainless steel insert lock and keep that is adjustable by 10 mm.

See Handle Tab for handle designs option.

SOLD PER SET

See tabs below for additional information
    • SKU
      LCFORTYSET-40P-GP
    • Market price:$121.03
      • save 5%
    • Starting price: Price: $114.98 per set


    Locinox FORTYSET, a mortise lock with a mechanism made entirely of stainless steel. A sturdy and solid closed gate with gate wings that cannot be pulled apart or forced open is ensured by the stainless steel adjustable self-latching bolt and hook in conjunction with the correct keep. This complete kit will give your metal, PVC, or aluminum gates a stainless steel insert lock and keep that is adjustable by 10 mm.

    Features:

    • Complete set with lock, keep, cover plates, handles and cylinder
    • Different handle designs are available, see Handle Tab for more information
    • Model SFKI-QF40 Keep
    • Model 3012-54-STD-VSZ Cylinder
    • 54 mm (2-1/8") Europrofile cylinder with three keys
    • Lock mechanism with cover plate protects against dirt penetration
    • Patented "Click-It" system makes thread tapping unnecessary
    • Continuous adjustment of the daybolt up to 3/8" without dismounting the lock box
    • Key-operated self-latching bolt
    • Stainless steel mechanism, hook, front plate and latch bolt
    • Easy left or right changing of the self-latching daybolt

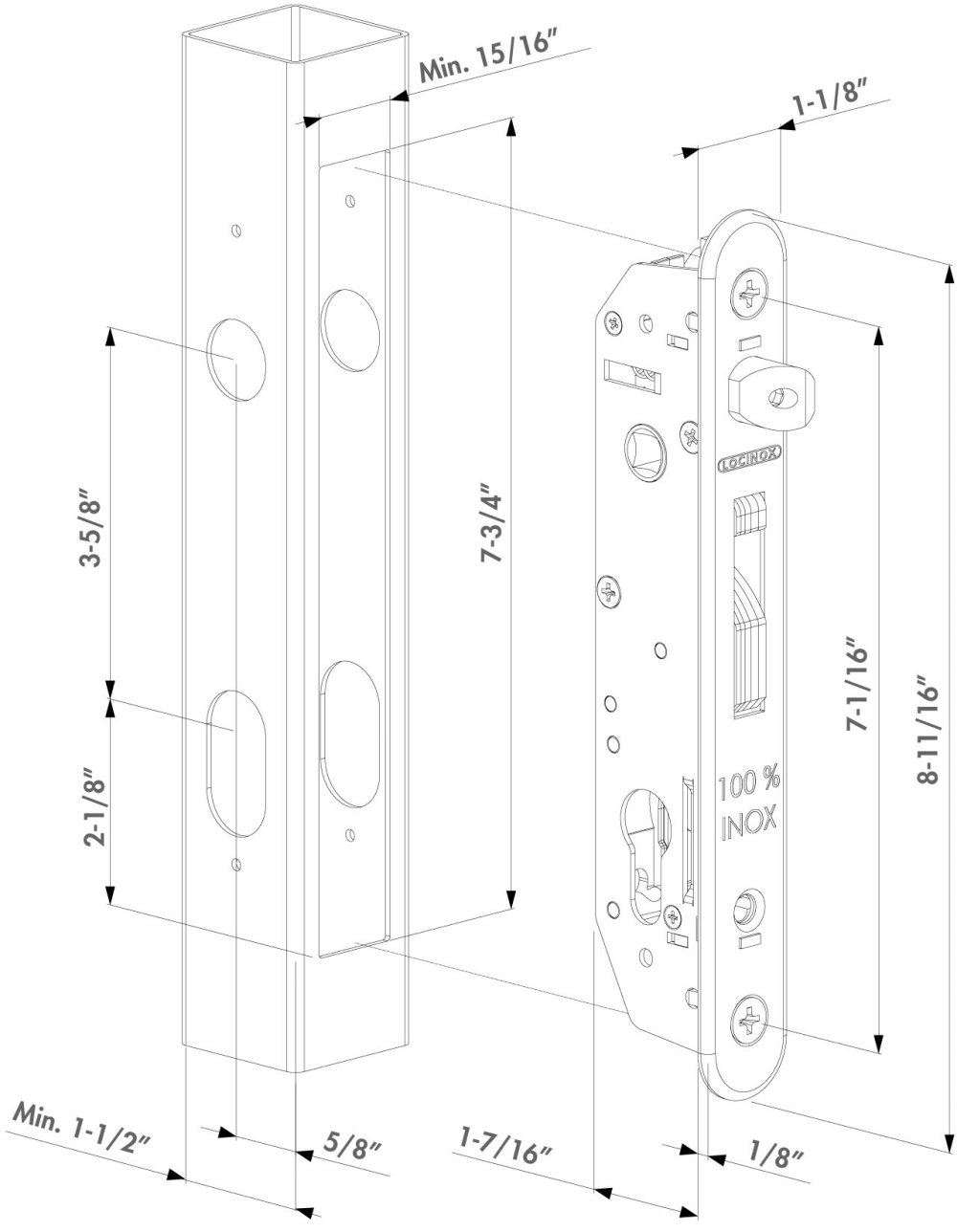

    • Throw of the hook: 13/16"
    • The center distance between the cylinder and the handle: 3-5/8"
    • Compatible with all Europrofile cylinders

    Please note that you can purchase the mortise lock separately. Or you can check FORTYLOCK to order.

    Set Inclusions:

    • FORTYSET-40I-MA :
      •  Handle: 3006M-H
      • Covershield: 3020-HYB-ALU
    • FORTYSET-40P-JP :
      • Handle: 3006J-H
      • Covershield: 3020-HYB-STD
    • FORTYSET-40P-GP:
      • Handle: 3006G
      • Covershield: 3020-HYB-STD
    • FORTYSET-40I-BA:
      • Handle: 3006B-H
      • Covershield: 3020-HYB-ALU-9005
    • FORTYSET-40I-JA:
      • Handle: 3006J-H
      • Covershield: 3020-HYB-ALU

    Installation: For details on how to install this gate lock, see our Installation Instructions

    To ensure perfect alignment of the gate hardware, install this gate lock with the DRILLFIX drilling jig.

    Gate Hardware: This gate lock is compatible with all Locinox Swing Gate Keeps and Gate Closers. The keeps and closers can be ordered separately through our site.

    SOLD PER SET

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 3-year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Locinox LAKQH2 Large Surface Mounted Ornamental Gate Lock

      • SKU
        LCFORTYSET-40P-GP
    • QuickShip
      Yes
    • Manufacturer
      Locinox
    • MPN
      FORTYSET
    • Set
      FORTYSET-40I-MA, FORTYSET-40P-JP, FORTYSET-40P-GP, FORTYSET-40I-BA, FORTYSET-40I-JA
    • Product Details
      • Lock Type
        Mechanical Lock
      • Material
        Stainless steel mechanism
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

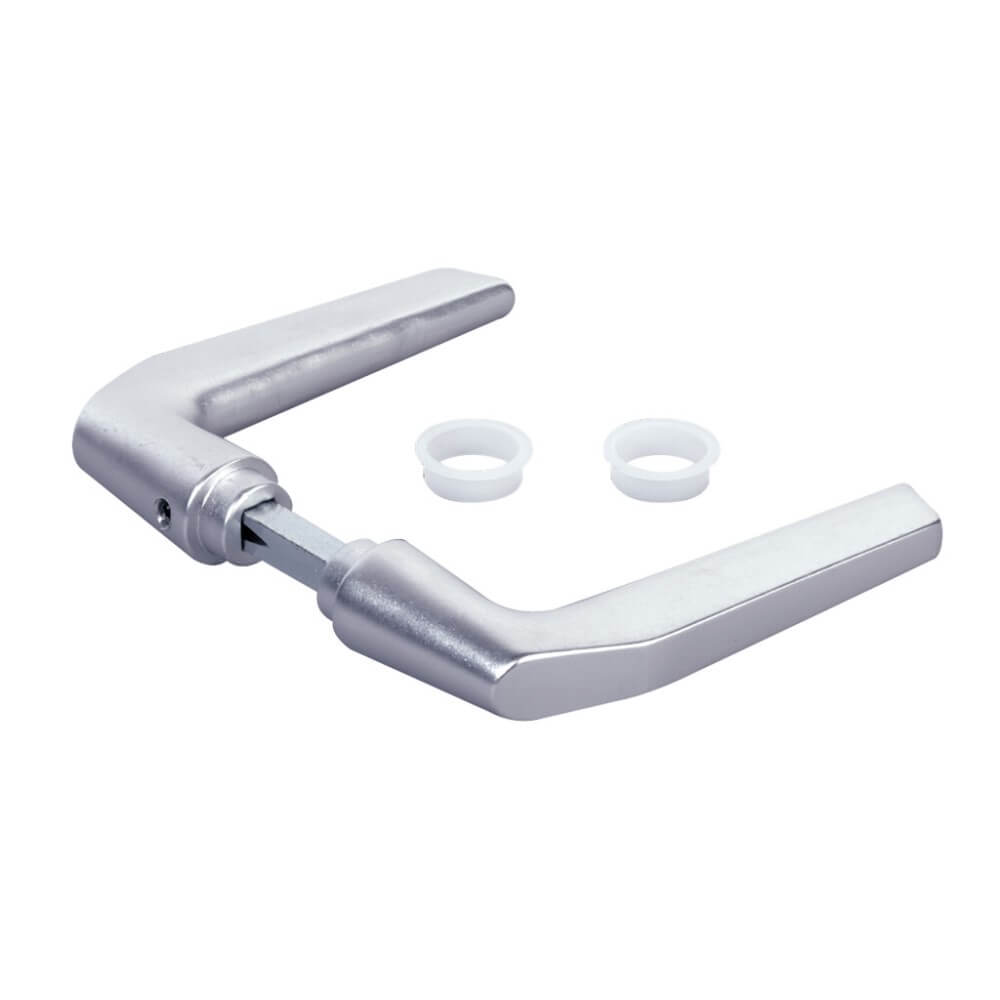

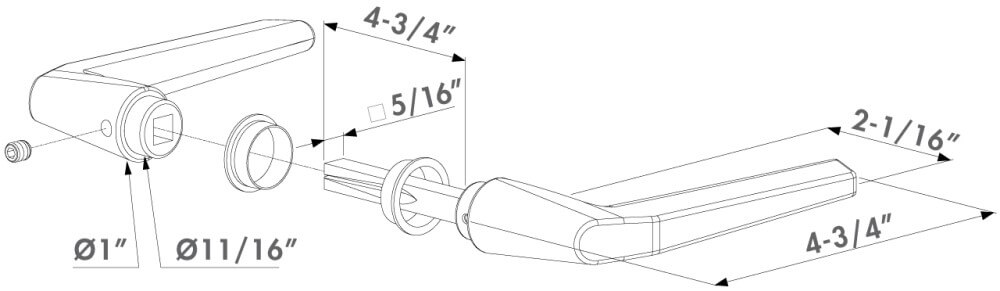

    3006M-H

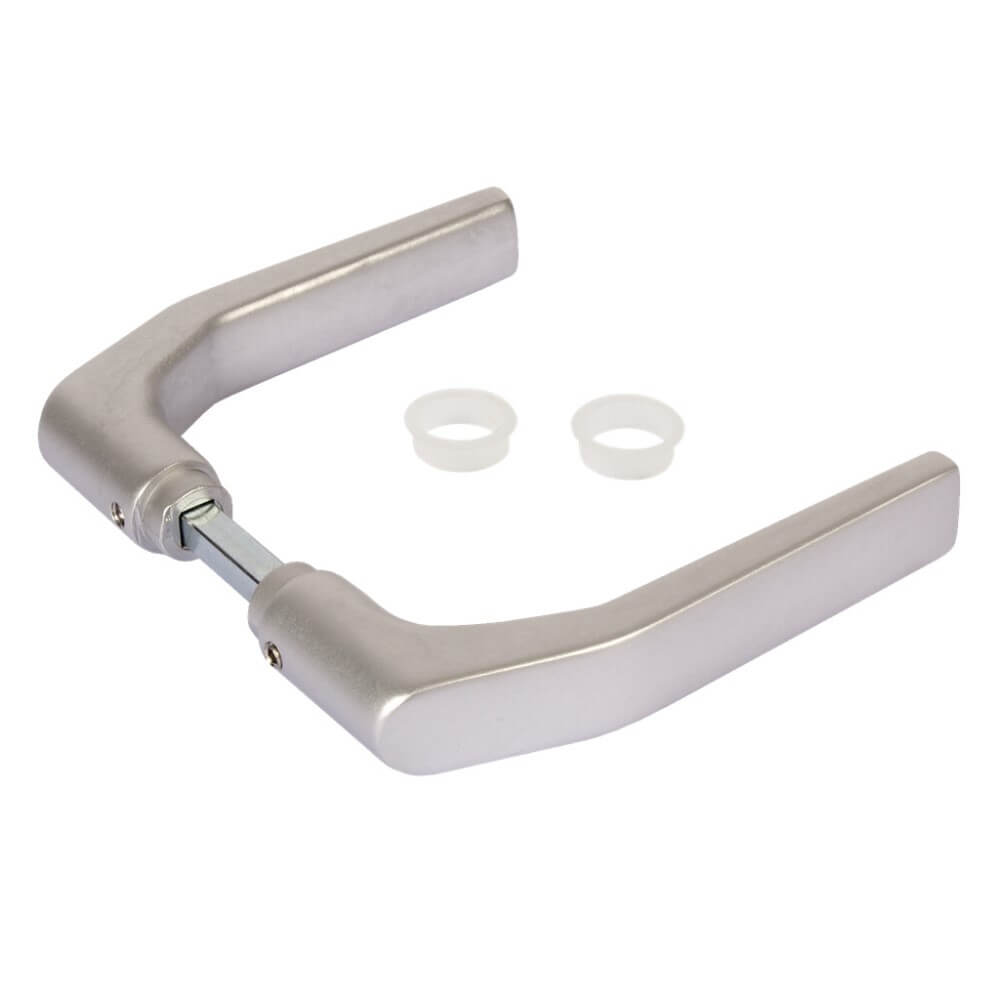

    3006J-H

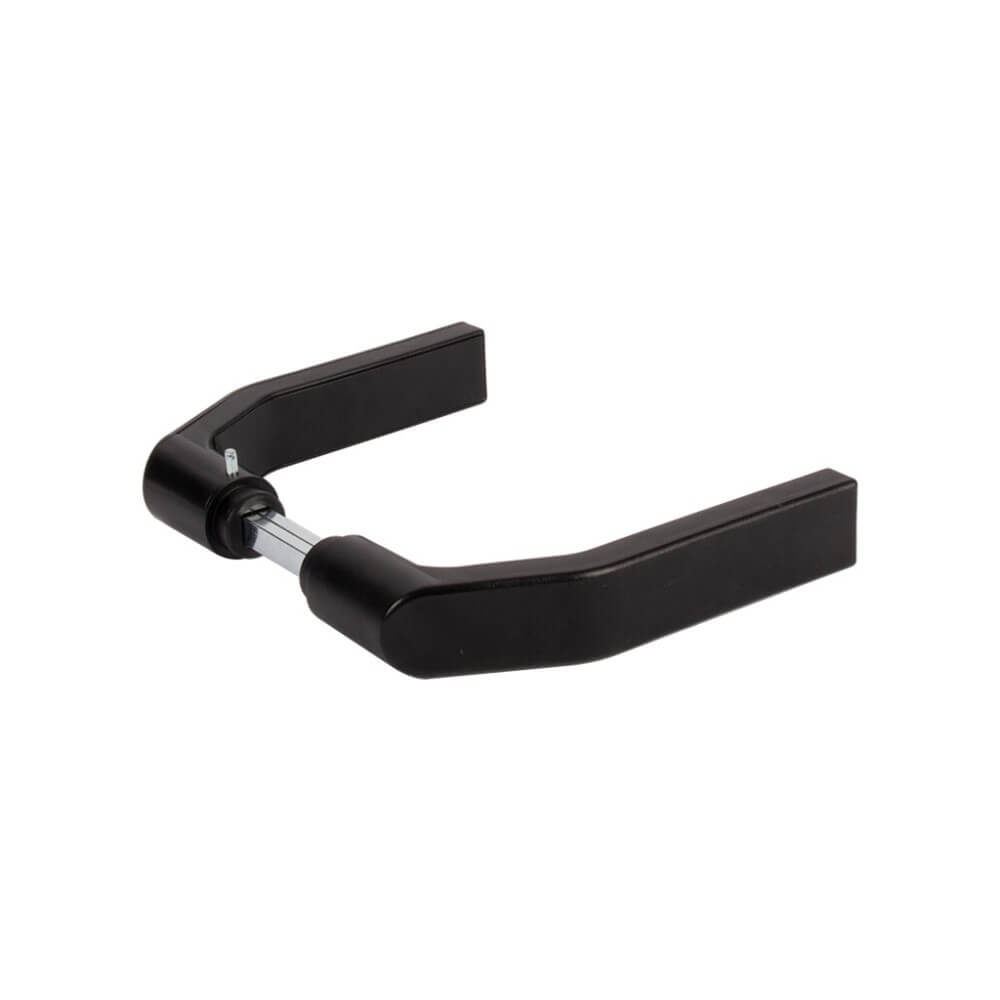

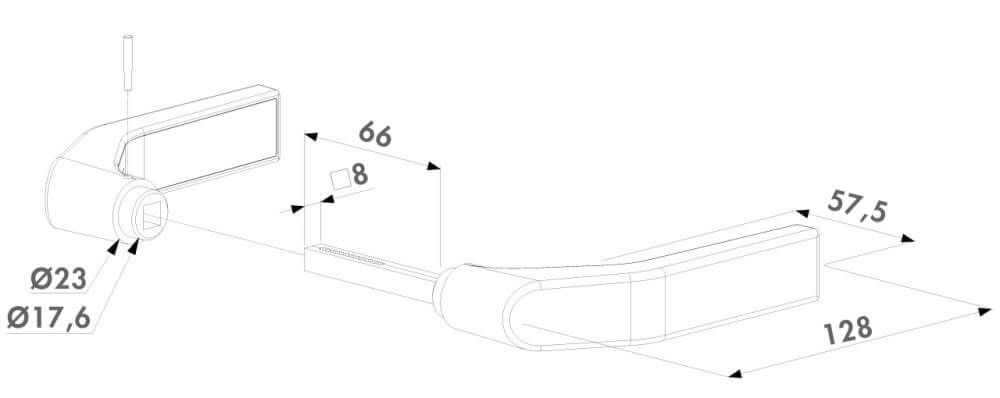

    3006G

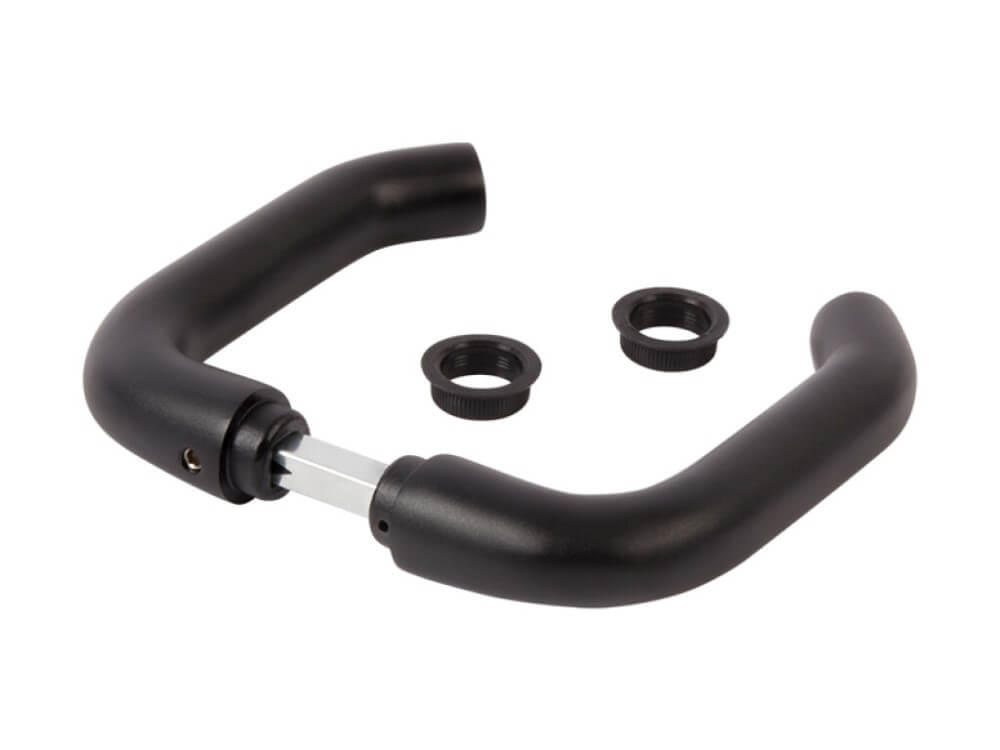

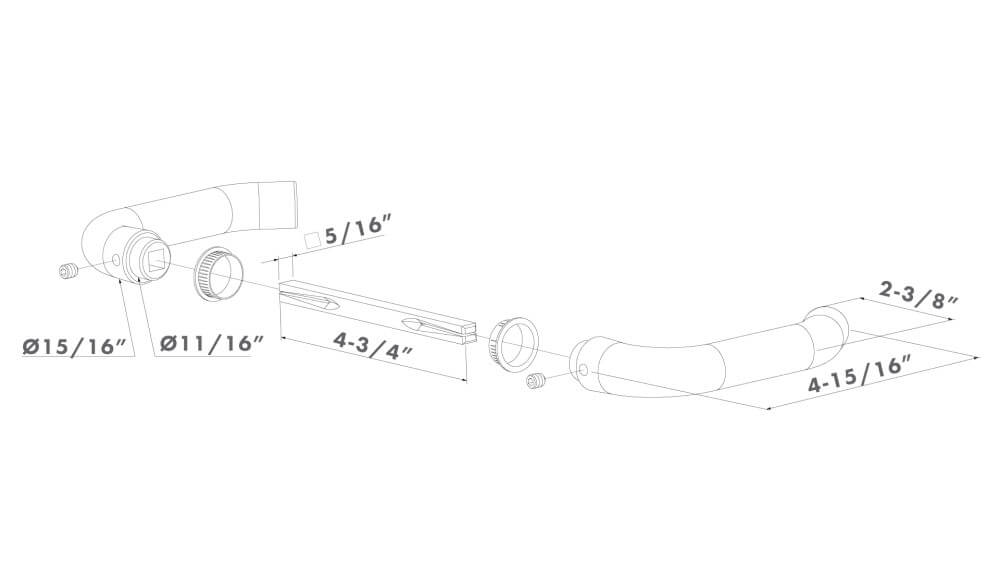

    3006B-H
