Home > Door Seals > Door Shoes > Rubber Door Shoes > NGP 13T Door Shoe Sweep, L Shaped Aluminum Casing with .6875" Thermoplastic Triple Fin Seals for Hollow Metal Doors

NGP 13T Door Shoe Sweep, L Shaped Aluminum Casing with .6875" Thermoplastic Triple Fin Seals for Hollow Metal Doors

NGP 13T Door Shoe Sweep, L Shaped Aluminum Casing with .6875" Thermoplastic Triple Fin Seals for Hollow Metal Doors

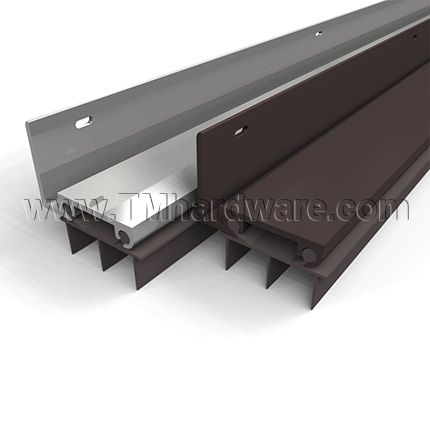

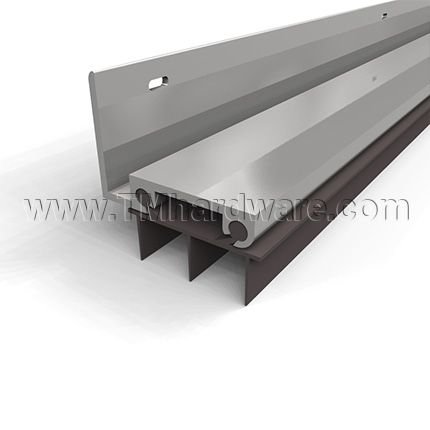

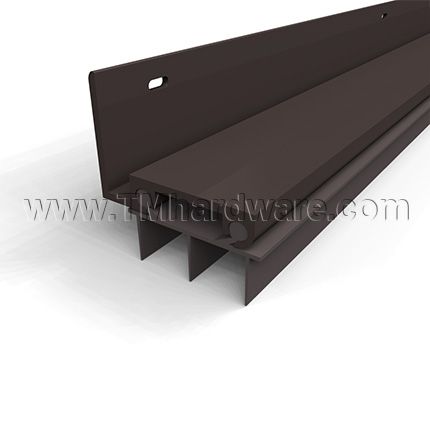

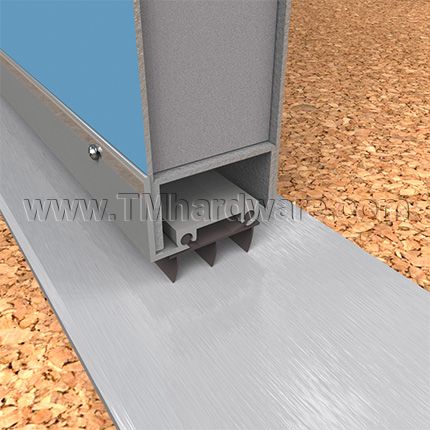

Product specs of NGP 13T Door Shoe Sweep NGP 13T Door Shoe Sweep, L Shaped Aluminum Casing with .6875" Thermoplastic Triple Fin Seals for Hollow Metal Doors NGP 13T Door Shoe Sweep in DKB Finish NGP 13T Door Shoe Sweep with Notched Fins in Anodized Aluminum Finish NGP 13T Door Shoe Sweep in Anodized Aluminum Finish applied to bottom of door
0.0

NGP 13T Door Shoe with L Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .6875". It is compatible with hollow metal doors at least 1.4375". Comes with a thermoplastic triple fin seal. Available in two aluminum finishes and length is custom cut to size up to 48".

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $7.40
Finish
Length (Inches)
Notched Fins
Qty
Save to wishlist
Made in USA
SKU N13TA
Shipping See Shipping Tab Below
Description

NGP 13T Door Shoe, L Shaped Aluminum Casing with .6875" Thermoplastic Triple Fin Seal Key Features:

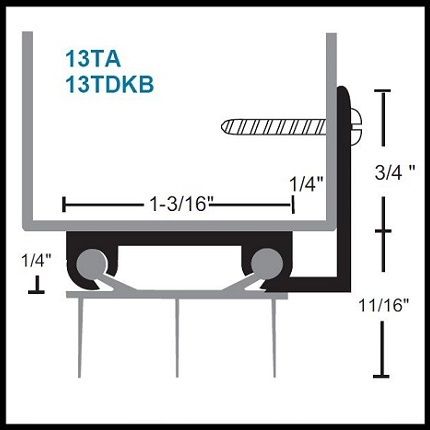

Dimensions: Casing has a width of 1.4375" and height of .75". Length is custom cut to size up to 48".

Casing Material: Aluminum alloy 6063, T5 temper

Door Compatibility: Hollow Metal Doors, at least 1.4375" Thick

Seals: Contains a .6875" Brown Triple Fin Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Notched Fins: The notched fins allow air flow while restricting light. Select from the options above.

Effective Temperature Range: 0°F thru 140°F

Available Finishes: Anodized Aluminum, Dark Bronze Anodized

Compliance Details: UL Certified, Positive Pressure Certified, Smoke Rated, Air Infiltration Tested.

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 35ET Door Shoe Sweep, U Shaped Aluminum Casing with .4375" Thermoplastic Triple Fin Seal
