NGP OV634 Door Sweep and Perimeter Gasket, .625" Aluminum Casing with .75" Nylon Brush

NGP OV634 Door Sweep and Perimeter Gasket, .625" Aluminum Casing with .75" Nylon Brush
National Guard Products

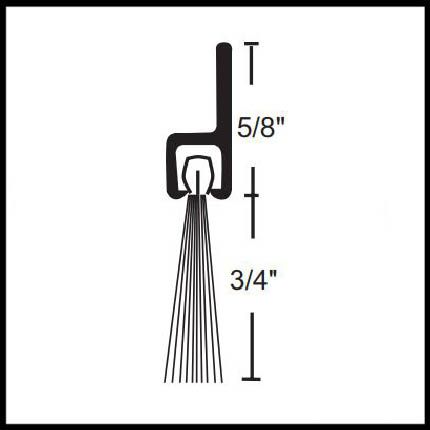

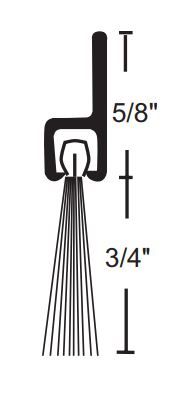

NGP #OV634 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .625" H, while brush portion has a height of .75". Available in various anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information
    • SKU
      NGOV634A
    • Market price:$16.90
      • save 15%
    • Starting price: Price: $14.36 per foot


    NGP #OV634 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities

    Mounting Options: select from options above

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    See also our NGP OV633 Door Bottom Sweep 1" Nylon Brush

      • SKU
        NGOV634A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      OV634, 634, 18061
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -70°F to 425°F
      • Door Type
        Metal Door, Wooden Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        3/4" Height
      • Total Height
        1-3/8" Height
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel sheet metal screws furnished
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Finish
    • Compliance Details
      • Compliance Details
        Fire Rated, UL Classified, Smoke Rated
      • Warranty
        3 Year Limited Warranty
    • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
    • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
    • REACH and RoHS compliant
