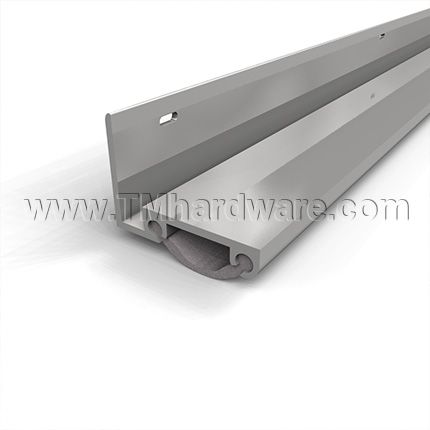

NGP 13V Door Shoe Sweep, L Shaped Aluminum Casing with .5" Vinyl Seal for Hollow Metal Doors

NGP 13V Door Shoe with L Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with hollow metal doors. Comes with a Vinyl seal. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length

Quantity

Add to compare

NGP 13V Door Shoe with L Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with hollow metal doors

Seals: Contains a .5" Gray Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

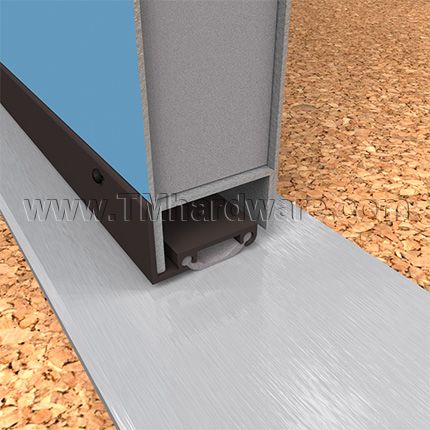

Installation: The L-Shaped retainer is not as sturdy as the U-Shaped Version for 1.75" Doors, however it has the advantage of being able to be installed without removing the door. Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 18V Door Shoe Sweep, L Shaped Aluminum with Rain Drip and .5" Vinyl Seal

- SKU
  NG13VA
QuickShip
No
Manufacturer
National Guard Products
MPN
13V
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  0°F thru 140°F
- Door Type
  Metal Door
- Seal Type
  Vinyl Rubber Seal
- Mounting
  Door Shoe Mount
Dimensions
- Seal Height
  1/2" Height
- Total Height
  1-1/4" Height
- Additional Dimensions
  Door seal is 1-3/16" thick
- Length
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 3/4" stainless steel SMS screws provided
Finishes
- Finish

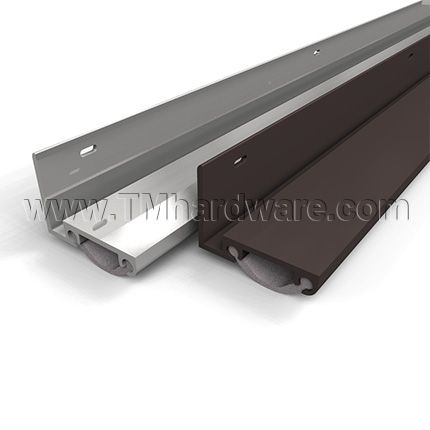

  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, UL Classified, Air Infiltration Rated
- Warranty
  3 Year Limited Warranty

Click to Print

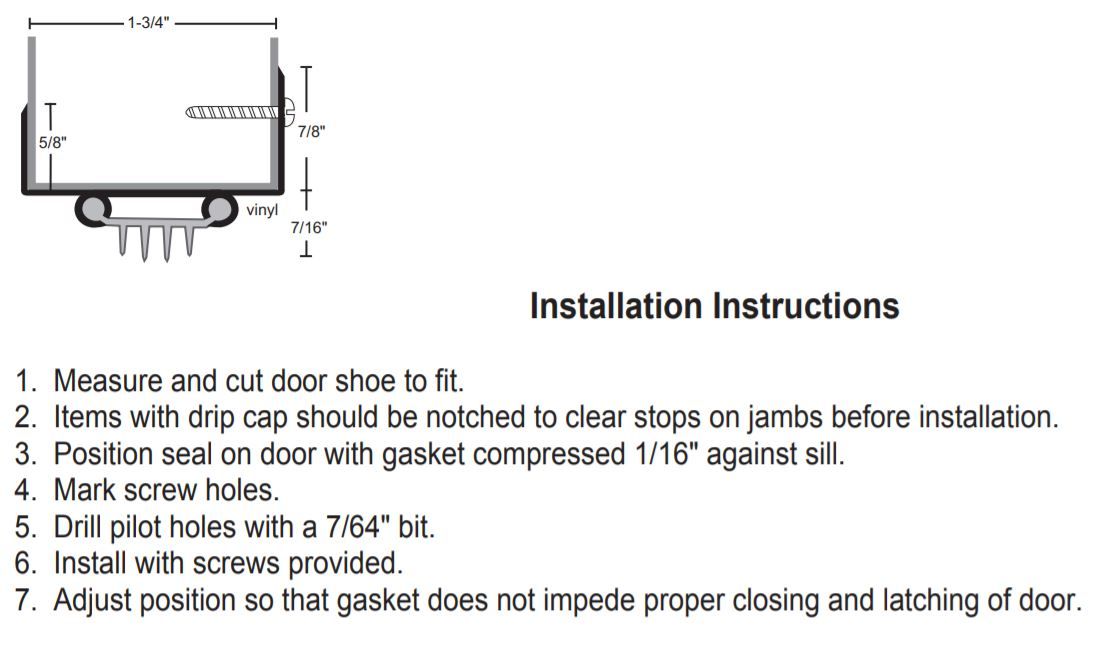

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA US28 / 628
