NGP 140P (SET) Meeting Stile, 1.0625" Aluminum Casing with Spring Adjustable .75" Polypropylene Pile Seal

NGP 140P Meeting Stile is fitted with a spring adjustable .75" polypropylene pile seal, which adjusts automatically to the door movement. Casing measures 1.0625" in height. Available in two anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length
Mounting

Quantity

Add to compare

NGP 140P Meeting Stile is fitted with a spring adjustable .75" polypropylene pile seal, which adjusts automatically to the door movement. Casing measures 1.0625" in height.

Retainer Material: Aluminum alloy 6063, T5 temper.

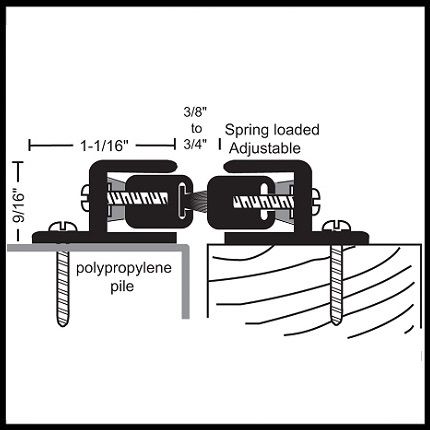

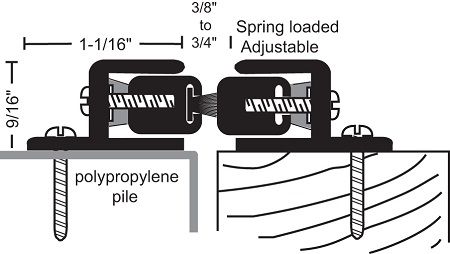

Spring Adjustable: An adjustable door gasketing is designed to give a consistent seal at all times. When clearance increases due to natural shifting or improper installation, the spring loaded seal will adjust automatically. It can also be manually adjusted with a few turns of a screwdriver. Seal has an adjustable range of .75” (3/4”) past the illustrated position in Product Specs.

Installation: Installation Guide provided. Adjustment screws on 10" centers allow adjustment without re-positioning mounting location.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

For additional meeting stiles, see our NGP 140S Meeting Stile, 1.0625" Aluminum Casing with Spring Adjustable .5" Silicone Seal

- SKU
  NG140P
QuickShip
No
Manufacturer
National Guard Products
MPN
140P
Mounting
Screws, Screws + Adhesive
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Polypropylene brush
- Door Type
  Double Active Doors
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  3/4"
- Total Height
  1-13/16"
- Width
  9/16"
Finishes
- Finish

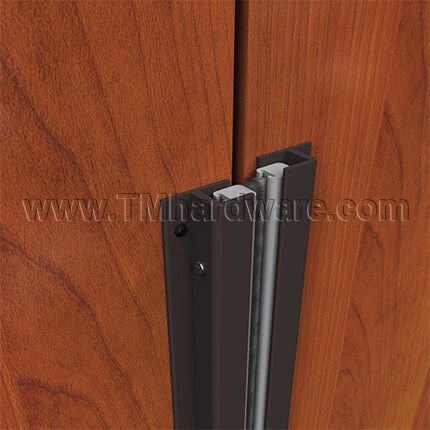

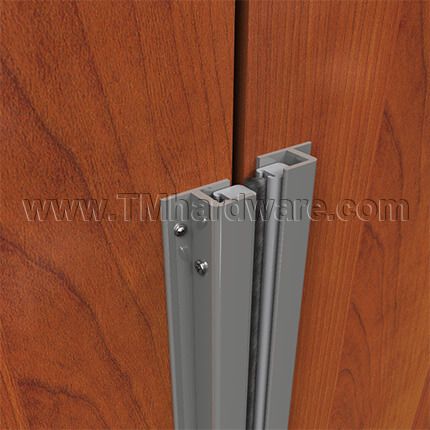

  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  BHMA Certified, UL Listed
- ANSI Designation
  R3F836
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA US28 / 628
