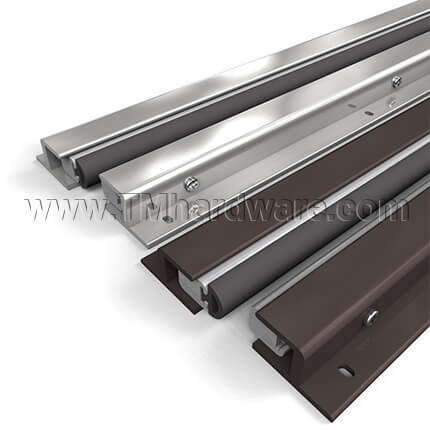

NGP 140S (SET) Meeting Stile, 1.0625" Aluminum Casing with Spring Adjustable .5" Silicone Seal

NGP 140S (SET) Meeting Stile, 1.0625" Aluminum Casing with Spring Adjustable .5" Silicone Seal
National Guard Products

NGP 140S Meeting Stile is fitted with a spring adjustable .5" silicone seal, which adjusts automatically to the door movement. Casing measures 1.0625" in height. Available in two anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG140SDKB (SET)
    • Market price:$63.00
      • save 15%
    • Starting price: Price: $53.55 per foot


    NGP 140S Meeting Stile is fitted with a spring adjustable .5" silicone seal, which adjusts automatically to the door movement. Casing measures 1.0625" in height. Recommended for areas using FM200 or Halon Fire Suppression Systems

    Seal Material: Black Silicone. Seal has excellent flexibility, memory, and resistance to ozone, UV, and aging.

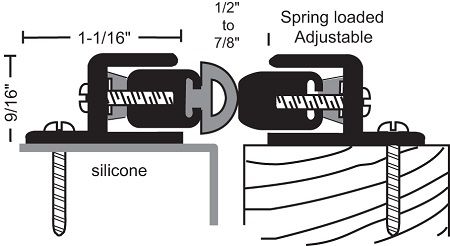

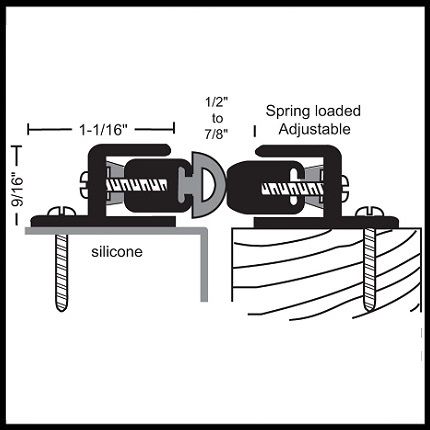

    Spring Adjustable: An adjustable door gasketing is designed to give a consistent seal at all times. When clearance increases due to natural shifting or improper installation, the spring loaded seal will adjust automatically. It can also be manually adjusted with a few turns of a screwdriver. Seal has an adjustable range of .5” (1/2") past the illustrated position in Product Specs.

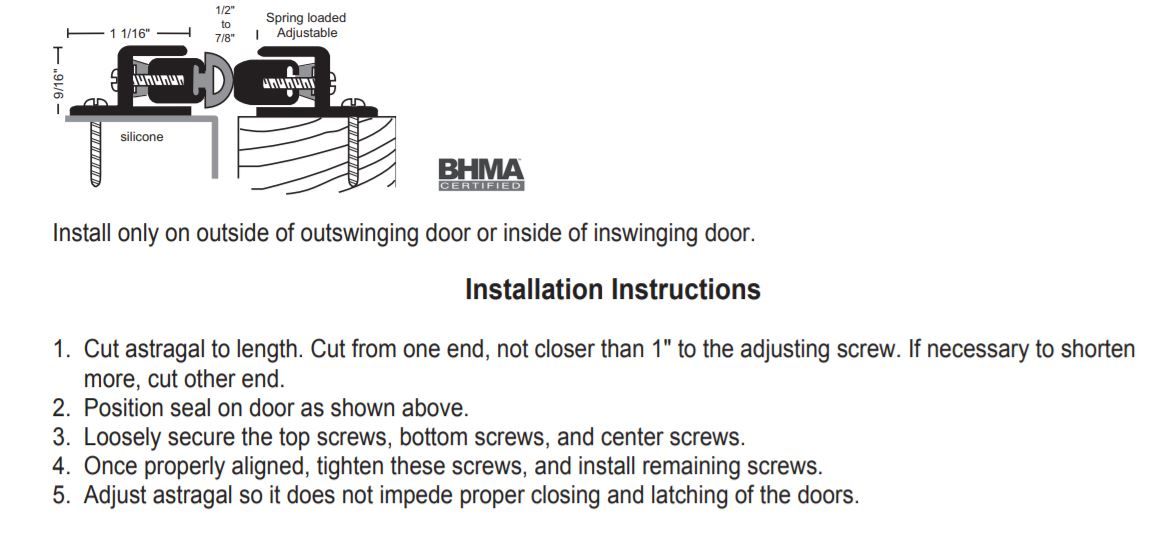

    Installation: Installation Guide provided. Adjustment screws on 10" centers allow adjustment without re-positioning mounting location.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.


    This product has a 3 year guarantee against defects in material and workmanship.

    Click here to view our Full Warranty Policy.

    For additional meeting stiles, see our NGP 140P Meeting Stile, 1.0625" Aluminum Casing with Spring Adjustable .75" Pile Seal

      • SKU
        NG140SDKB (SET)
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      140S
    • Mounting
      Screws, Screws + Adhesive
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Silicone
      • Door Type

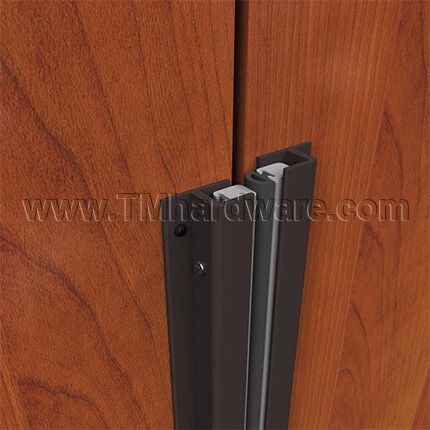

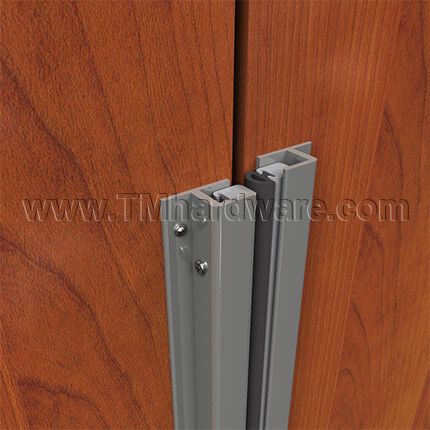

        Double Active Doors
    • Dimensions
      • Seal Height
        1/2"
      • Total Height
        1-9/16"
      • Width
        9/16"
    • Finishes
      • Finish

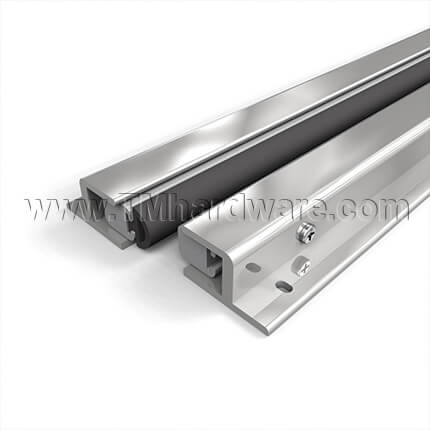

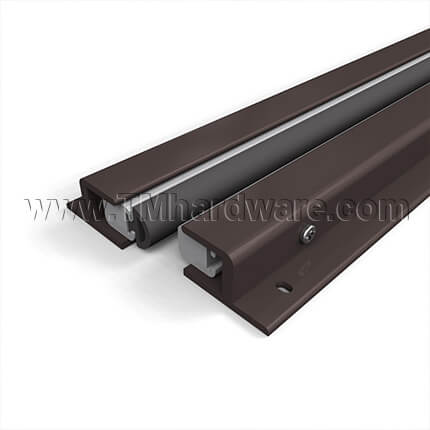

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details

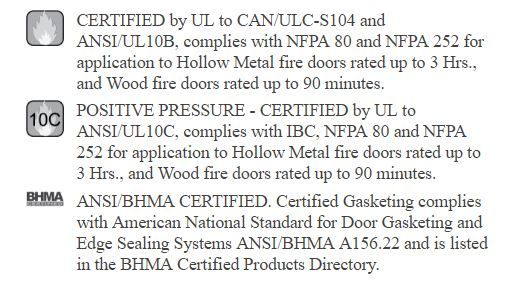

        BHMA Certified, Fire Rated
      • ANSI Designation
        R3E836
      • Warranty
        3 Year Limited Warranty

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
