Pemko #322 Door Gasket, Aluminum with Adjustable PemkoPrene Bulb Seal

Pemko #322 Door Gasket, Aluminum with Adjustable PemkoPrene Bulb Seal

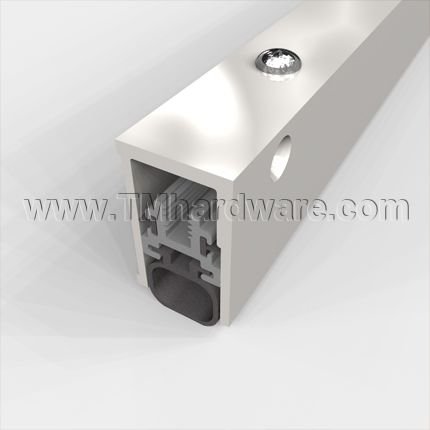

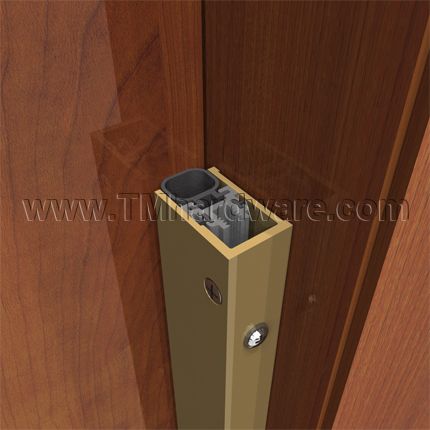

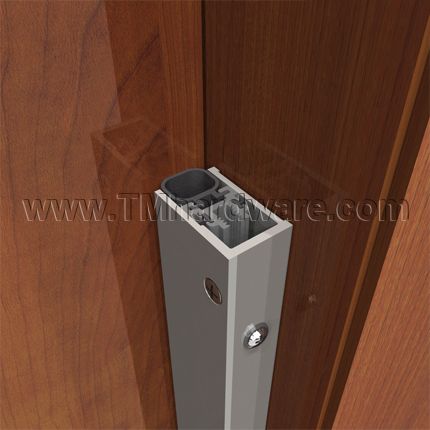

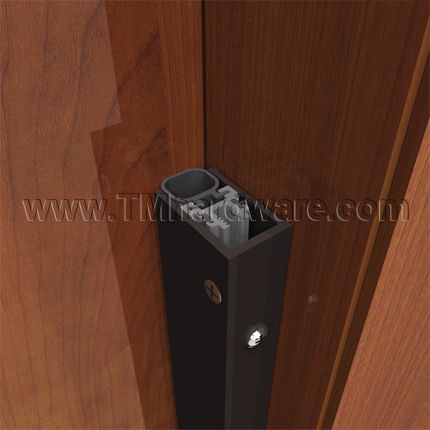

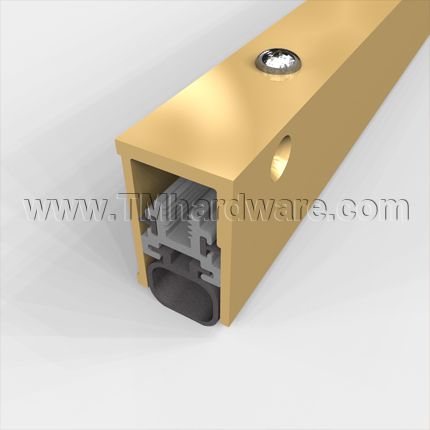

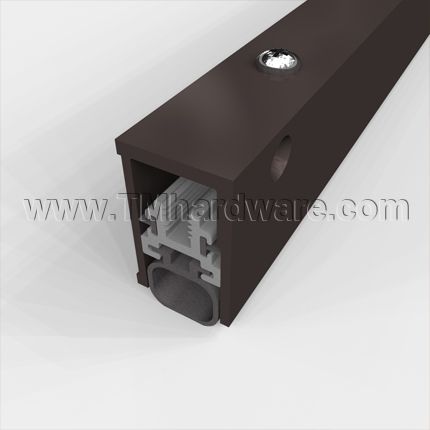

Product Specs of Door Gasket Seal #322 Clear Anodized Door Gasket with Bulb Seal Door Gasket with PemkoPrene Bulb Seal Door Gasket with Adjustable Seal Dark Brozne Door Gasket with Bulb Seal Door Gasket with PemkoPrene Bulb Seal Door Gasket with Adjustable Seal Gold Door Gasket with Bulb Seal Door Gasket with PemkoPrene Bulb Seal Door Gasket with Adjustable Seal
0.0

This Adjustable Door Gasket provides consistent head and jamb protection. It is applied to the stop of doors to seal the gap between the door and door frame. The adjustable PemkoPrene Bulb seal can be easily adjusted with a screwdriver if natural shifting of the door occurs. Available in three finishes and is custom cut to size.

PRICED PER FOOT.

Market price: $17.16
save 15%
Price: $14.59
Finish
Size (Inches)
Qty
Save to wishlist
SKU P322CSN
Shipping See Shipping Tab Below
Description

This Adjustable Door Gasket provides consistent head and jamb protection. Adjustable bulb seal can be easily adjusted with a screwdriver if natural shifting of the door occurs. Available in three finishes and is custom cut to size.

Key Features Include:

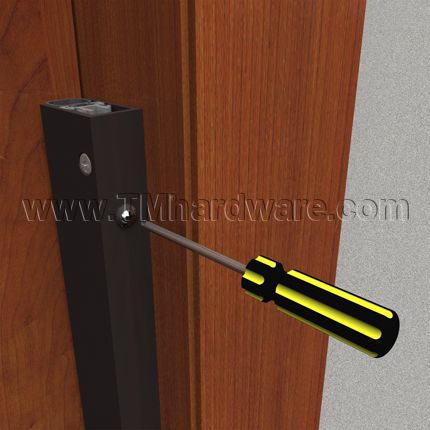

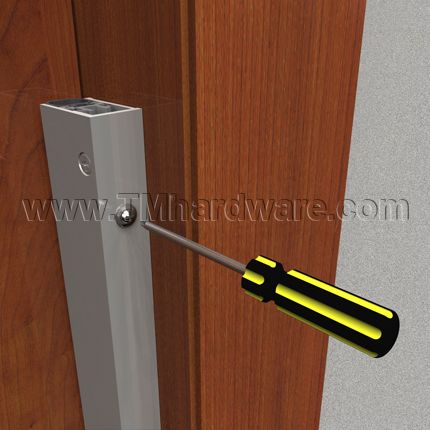

Adjustable: An adjustable door gasketing is designed to give a consistent seal at all times. When clearance increases due to natural shifting or improper installation, all it takes is a few turns of a screwdriver to restore a proper seal. Seal has an adjustable range of .188” (3/16”) past the illustrated position in Product Specs.

Seal: Gasket is fitted with a high quality PemkoPrene Bulb Seal which has high compression properties to ensure the best possible seal. PemkoPrene is effective through a range of temperatures and will not become brittle in extreme heat or cold temperatures.

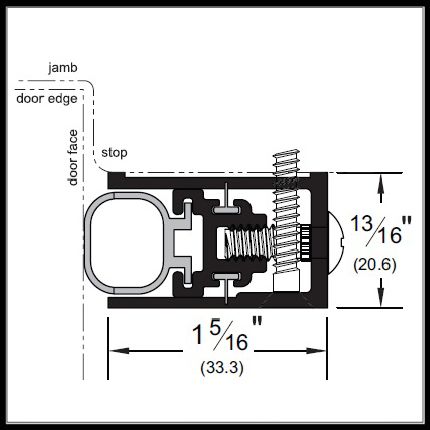

Design: This door gasket is designed to be surface applied to the stop of the door. The seal compresses against the door when it is closed to create a reliable seal. The seal is designed to seal gaps up to 1/16”, but can seal openings up to its depth. Casing dimensions are 1.313" x .813" (1-5/16" x 13/16")

Compliance: Gasket is rated for fire and air infiltration.

  • PemkoPrene Bulb Seal
  • Easily Adjustable Seal - Up to 3/16"
  • Surface Applied to Stop of Frame
  • Aluminum Anodized Casing
  • Custom Cut to Size

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our
Full Warranty Policy.

For a similar product with a choice of seals, see our Aluminum Door Gasket with Choice of Adjustable Seals.

Product Specs

Click to Print



P322 Product Specs:

Product Specs of Door Gasket with PemkoPrene Bulb Seal, P322SN

Installation

Click to Print



P322 Installation Guide:

Installation Guide for Adjustable Door Gasket with Rubber Seal - P379

Compliance Details

Click to View Ratings Explained

Compliance Details for Adjustable Door Gasket with Rubber Seals - P350


Finishes Comply with the Following ANSI / BHMA Codes:
  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
