NGP 155V Door Gasket, .625" Aluminum Casing with .21875" Wide Vinyl Bulb Seal

NGP 155V Door Gasket, .625" Aluminum Casing with .21875" Wide Vinyl Bulb Seal

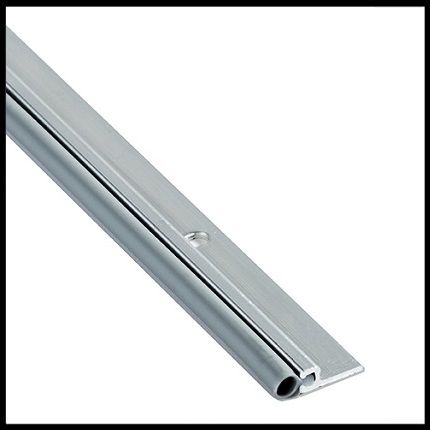

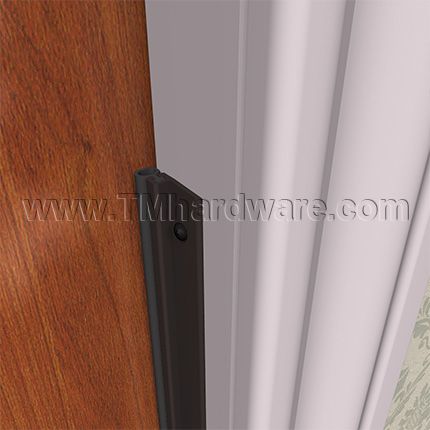

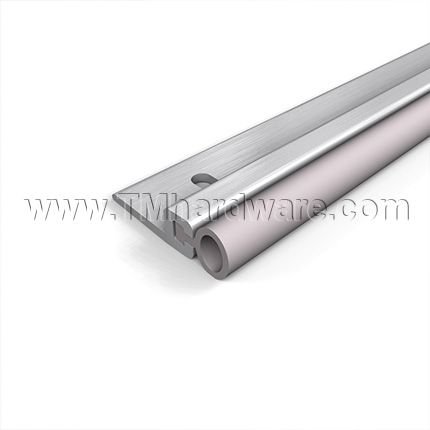

Products specs of NGP 155V Door Gasket Actual Image of NGP 155V Door Gasket NGP 155V Door Gasket, .625" Aluminum Casing with .21875" Wide Vinyl Bulb Seal NGP 155V Door Gasket, .625" Aluminum Casing with .21875" Wide Vinyl Bulb Seal in Gold Finish NGP 155V Door Gasket, .625" Aluminum Casing with .21875" Wide Vinyl Bulb Seal in DKB Finish applied to frame of door

NGP 155V Door Gasket is fitted with a .21875" wide vinyl bulb seal, which seals the gap under and around doors. Casing measures .625" in height. Available in three anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $4.05
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

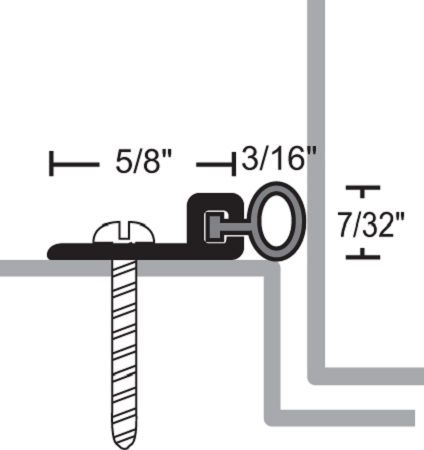

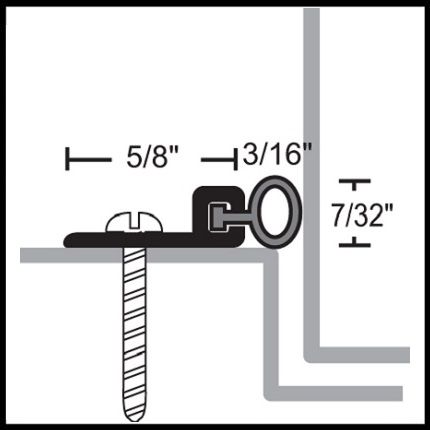

NGP 155V Door Gasket Key Features:

Casing Height: 5/8" (.625" )

Seal Height: 3/16" (.1875")

Seal Width: 7/32" (.21875")

Total Height: 13/16" (.8125")

Retainer Material: Aluminum alloy 6063, T5 temper

Seal Material: Gray Vinyl Bulb or Black Vinyl Bulb for DKB Finish. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Temperature Range: 0°F to 140°F

Finishes: Mill Aluminum, Dark Bronze Anodized, Gold Anodized

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

Mounting Options:

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

For additional door gaskets, see our NGP 156V Door Gasket with .25" Vinyl Bulb Seal

Product Specs
Compliance Details

Mill Aluminum complies with ANSI/BHMA US27 / 627
